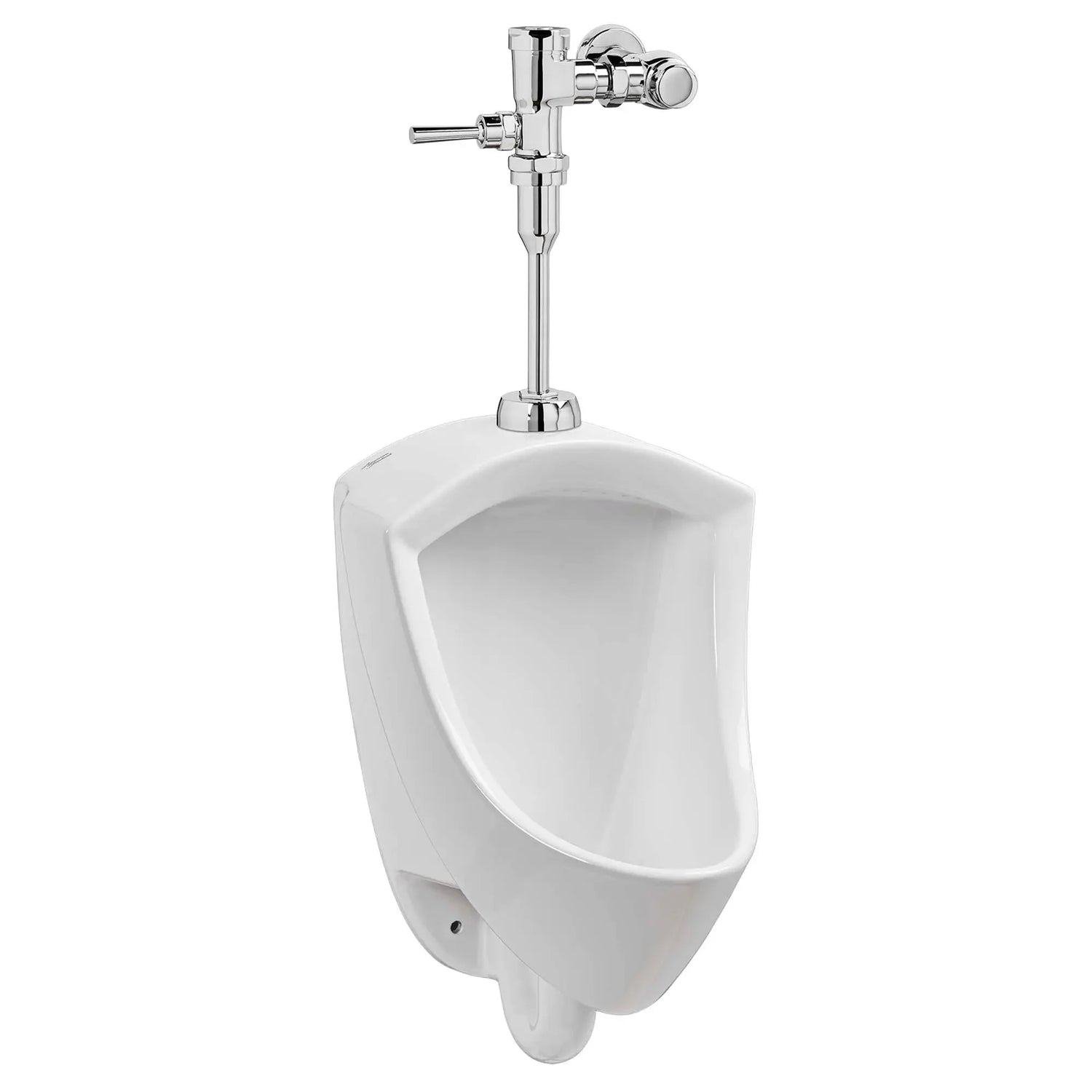

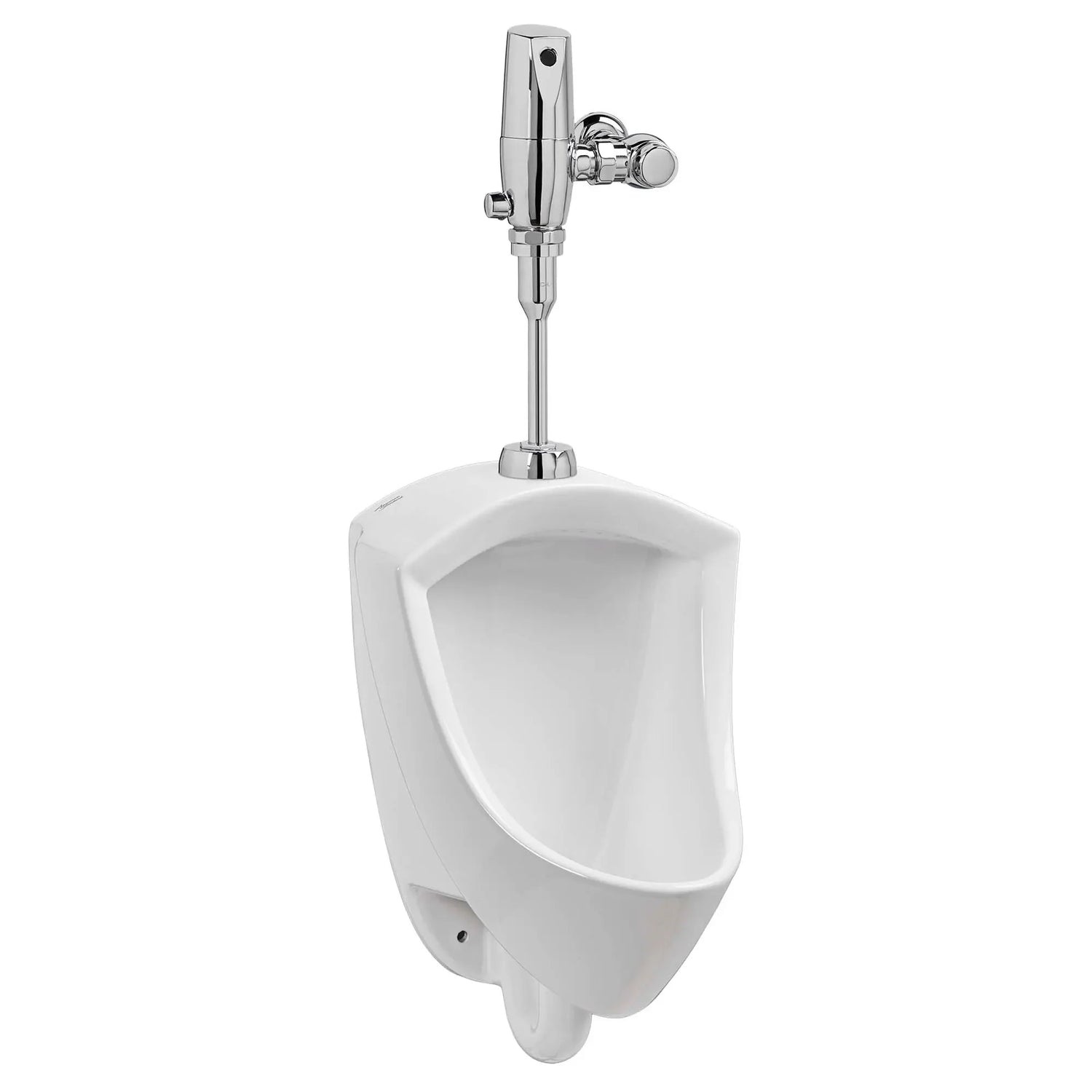

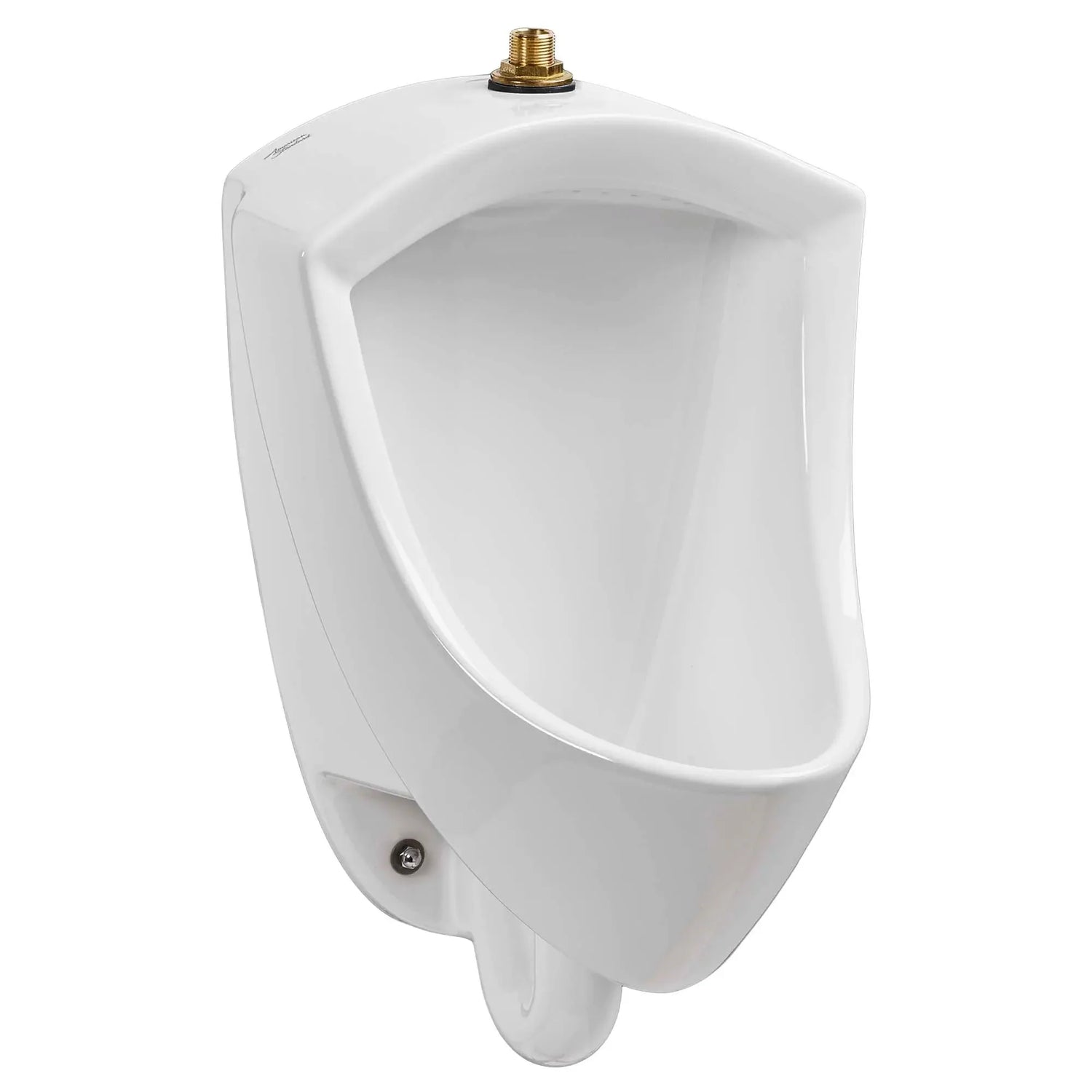

Pintbrook® 0.125 – 0.5 gpf (0.47 – 1.9 Lpf) Top Spud Urinal

The Pintbrook Urinal from American Standard is a smart, High Efficiency washdown urinal, operating in the range of 0.125 gpf to 0.50 gpf (0.47 Lpf/1.9 Lpf) to help save water. This optimized design is expertly crafted to provide superior splash protection. Features a 3/4" inlet top spud, and includes wall hangers for easy installation.

Features

• High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 0.5 gpf (0.47 Lpf – 1.9 Lpf)
• Great 1-pint flush alternate to popular Allbrook® urinal
• Powerful washdown action
• Optimized chinaware contours provide superior splash protection
• 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
• Two wall hangers included
• Fixture only
• Made in Mexico (USMCA compliant)
• Chrome plated non-metallic strainer included
• High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 0.5 gpf (0.47 Lpf – 1.9 Lpf)
• Great 1-pint flush alternate to popular Allbrook® urinal.
• Powerful washdown action
• Optimized chinaware contours provide superior splash protection
• 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
• Two wall hangers included
• Fixture only
• Made in Mexico (USMCA compliant)
• Chrome plated non-metallic strainer included.

Specifications

• ADA Compliant: Yes
• Barrier Free: Yes
• Brand: American Standard
• Cal Green: Yes
• Category: Urinals
• CEC Certified: Yes
• Color / Finish: White
• Department of Energy Certified: Yes
• Collections: Pintbrook
• WaterSense: Yes
• Fixture Material: Vitreous China
• Fixture or Fitting Material: Vitreous China
• Gallons Per Flush (min-max): 0.125 - .5 GPF
• Input Connection Type: NPT (National Pipe Tapered Threads)
• Height: 22-5/8
• Length: 14-7/16
• Width: 14-5/16
• Residential or Commercial: Commercial
• Subcategory: Top Spud Urinals
• USMCA Compliant: Yes
• Warranty: 1 Year Limited Warranty
• Water Efficient: Yes
