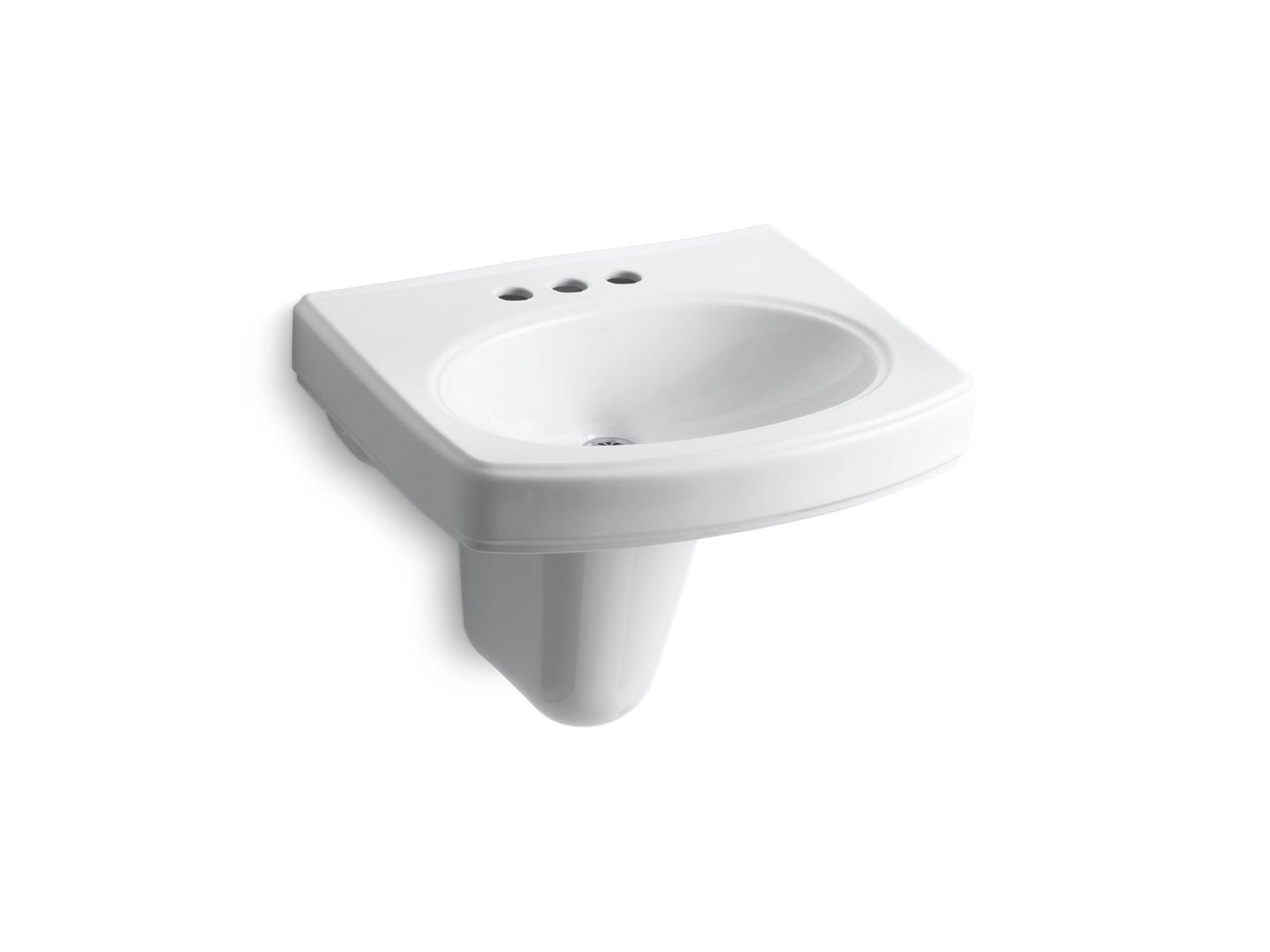

Pinoir® 22" oval wall-mount bathroom sink with glazed underside

The KOHLER Pinoir 22" oval wall-mount bathroom sink with glazed underside combines box-band lines and simple, double-ridge edge detailing for a crisp, classic style that flatters both contemporary and modern bathrooms. It meets ADA standards when the rim is installed 34" from the floor, and its space-saving design works in even the smallest powder rooms. The combination consists of a basin and shroud.

Features

• 4" (102 mm) centerset faucet holes
• Oval basin
• Overflow drain
• Combination consists of basin and shroud
• ADA, OBC compliant when installed to the specific requirements of these regulations

Specifications

• Basin length: 18" (457 mm)
• Basin width: 12" (305 mm)
• Basin depth: 6" (153 mm)
• Number of deck holes: 3
• Faucet hole size: 1-1/4" (32 mm)
• Centres: 4" (102 mm)
• Drain hole diameter: 1-3/4" (44 mm)
• Basin configuration: Single bowl
• Material: Vitreous china
• Installation: Wall-mount
• Codes/standards: ASME A112.19.2/CSA B45.1, ADA, ICC/ANSI A117.1, OBC
• Finish: White
• Warranty: KOHLER Vitreous China Bathroom Sink Lifetime Limited Warranty
• Note: Product dimensions are nominal and may vary per ASME A112.19.2 tolerances
