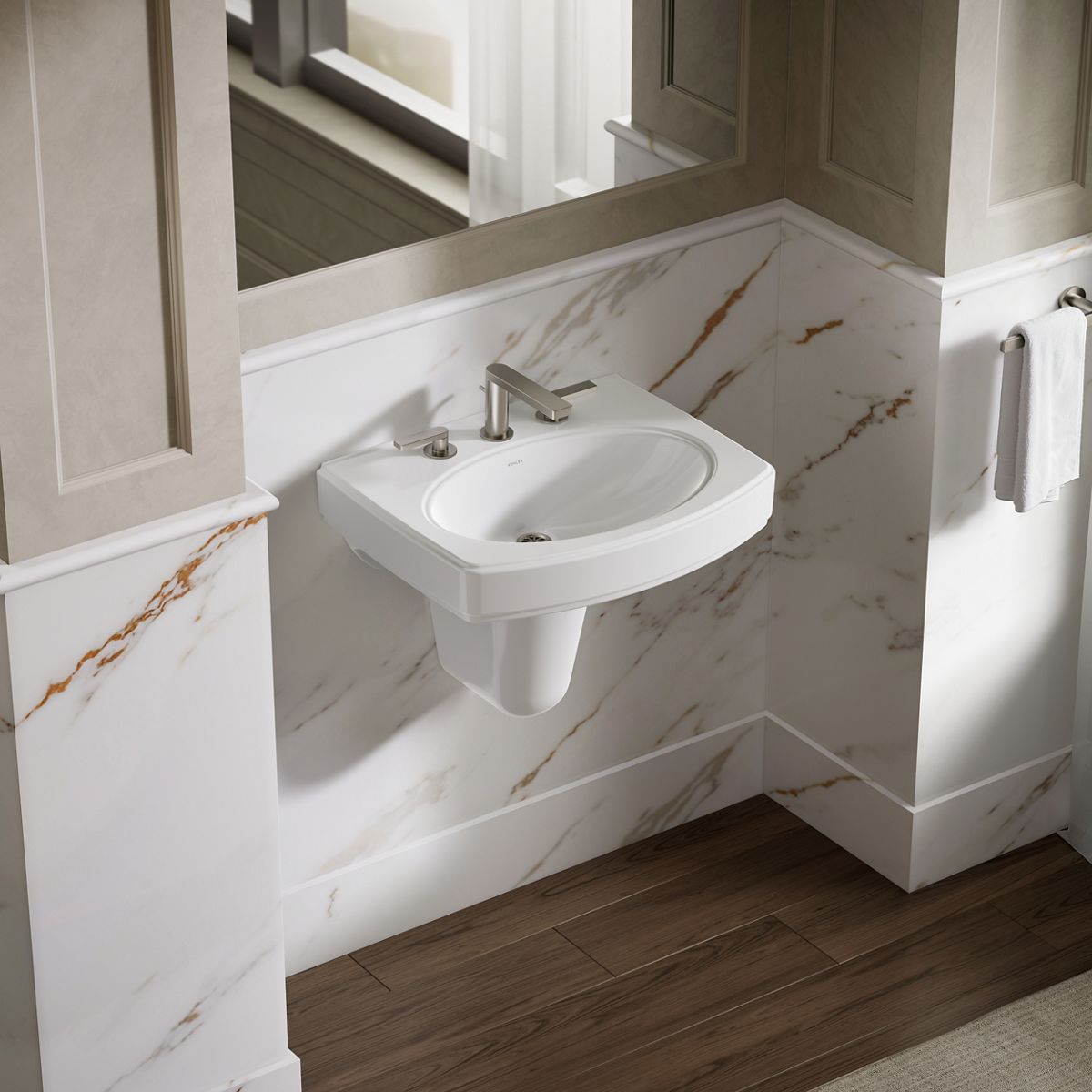

Pinoir® 22" oval wall-mount bathroom sink

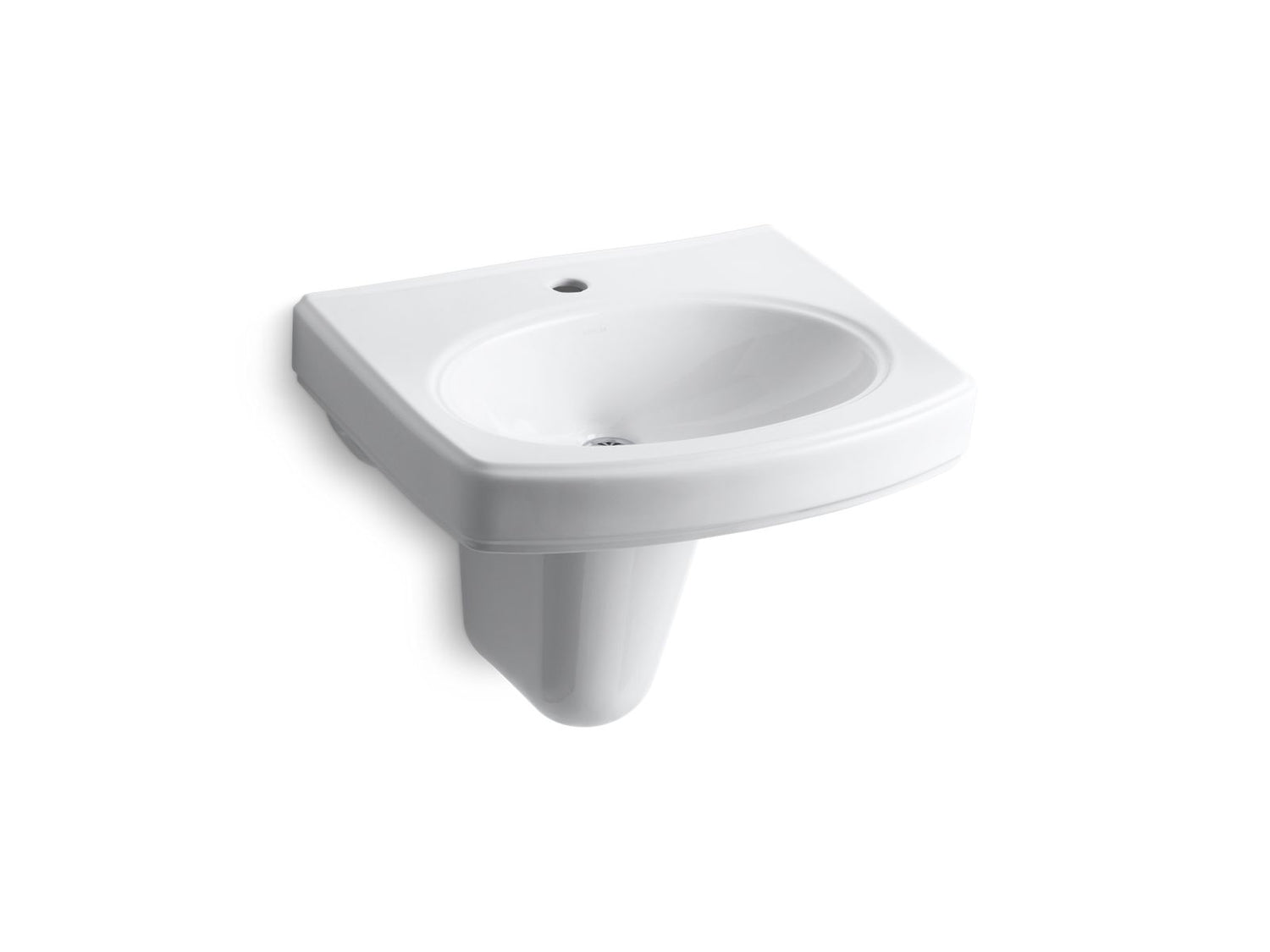

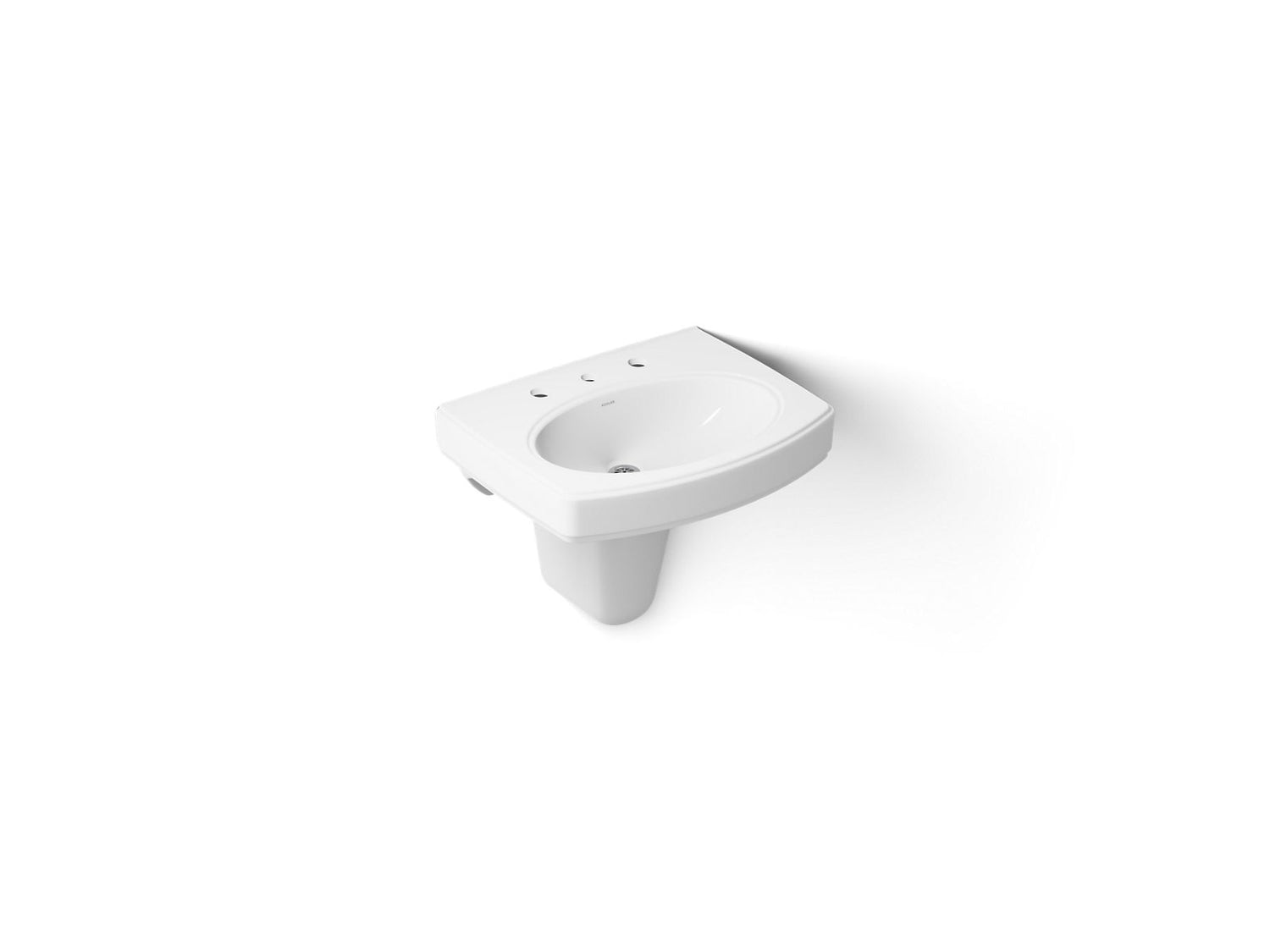

The Kohler Pinoir® 22" oval wall-mount bathroom sink is offered with single-hole (2035-1-0) or 8" widespread (2035-8-0) faucet drilling. The single-hole version, K-2035-1, is a combination of basin and shroud, and the included Pinoir shroud enhances the design by hiding pipes. This single-hole oval wall-mount model is an ideal choice for small spaces.

Features

• Wall-mount installation
• Single-hole version (2035-1-0): single faucet hole
• Single-hole version: oval basin with overflow drain
• Single-hole version: combination of the K-2028-1 22" oval wall-mount bathroom sink and the K-2057 bathroom sink shroud
• Single-hole version: vitreous china

Specifications

• Faucet hole drilling: Single-hole (2035-1-0); 8" widespread (2035-8-0)
• Colour (single-hole version): White
• Faucet hole size (single-hole version): 1-3/8" (35 mm)
• Drain hole diameter (single-hole version): 1-3/4" (44 mm)
• Basin configuration (single-hole version): Single bowl
• Basin length (single-hole version): 18" (457 mm)
• Basin width (single-hole version): 12" (305 mm)
• Basin depth (single-hole version): 6" (153 mm)
• Codes/standards (single-hole version): ASME A112.19.2/CSA B45.1; ADA, OBC compliant when installed to the specific requirements of these regulations
• Warranty (single-hole version): KOHLER® Vitreous China Bathroom Sink Lifetime Limited Warranty
• Note: Product dimensions are nominal and may vary per ASME A112.19.2 tolerances
