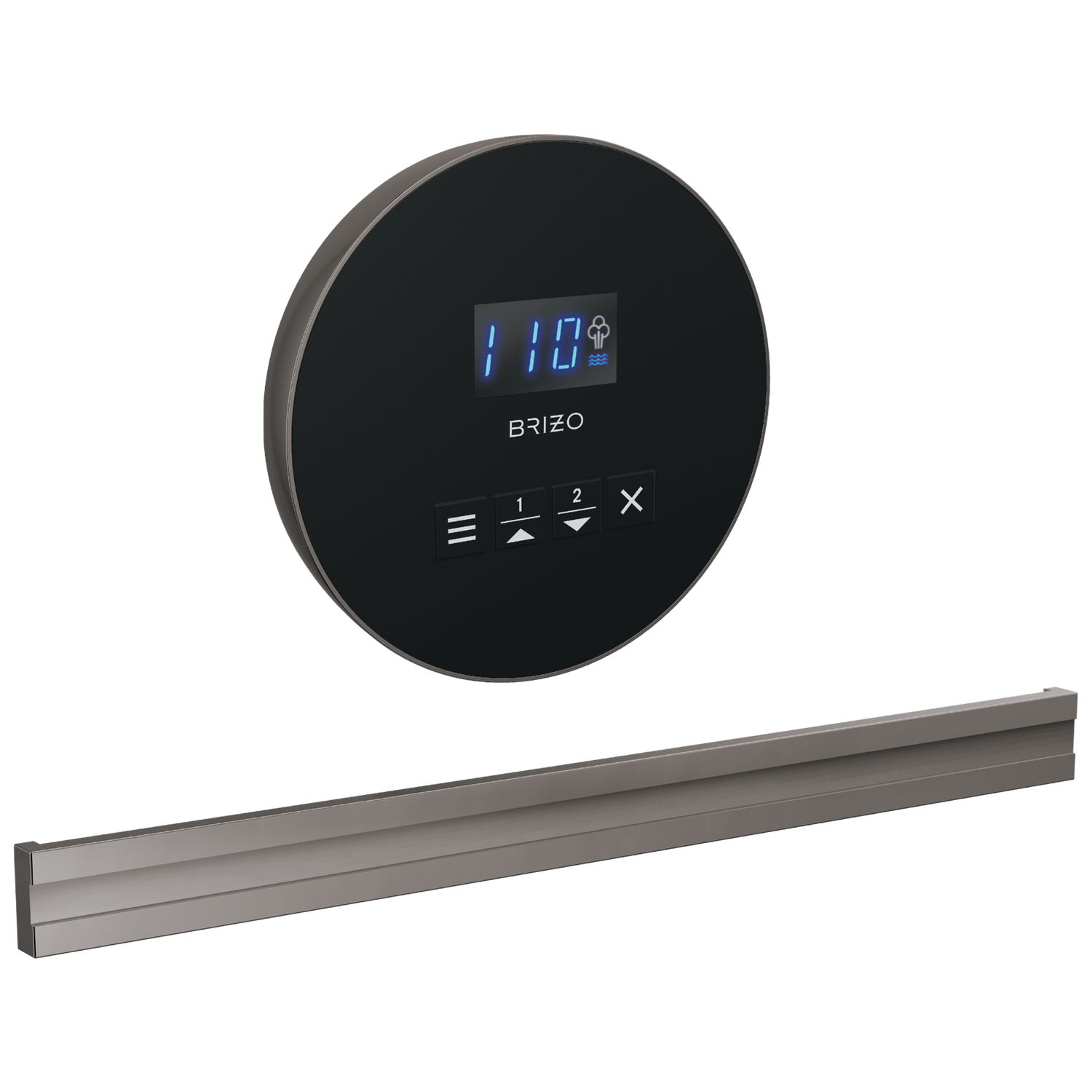

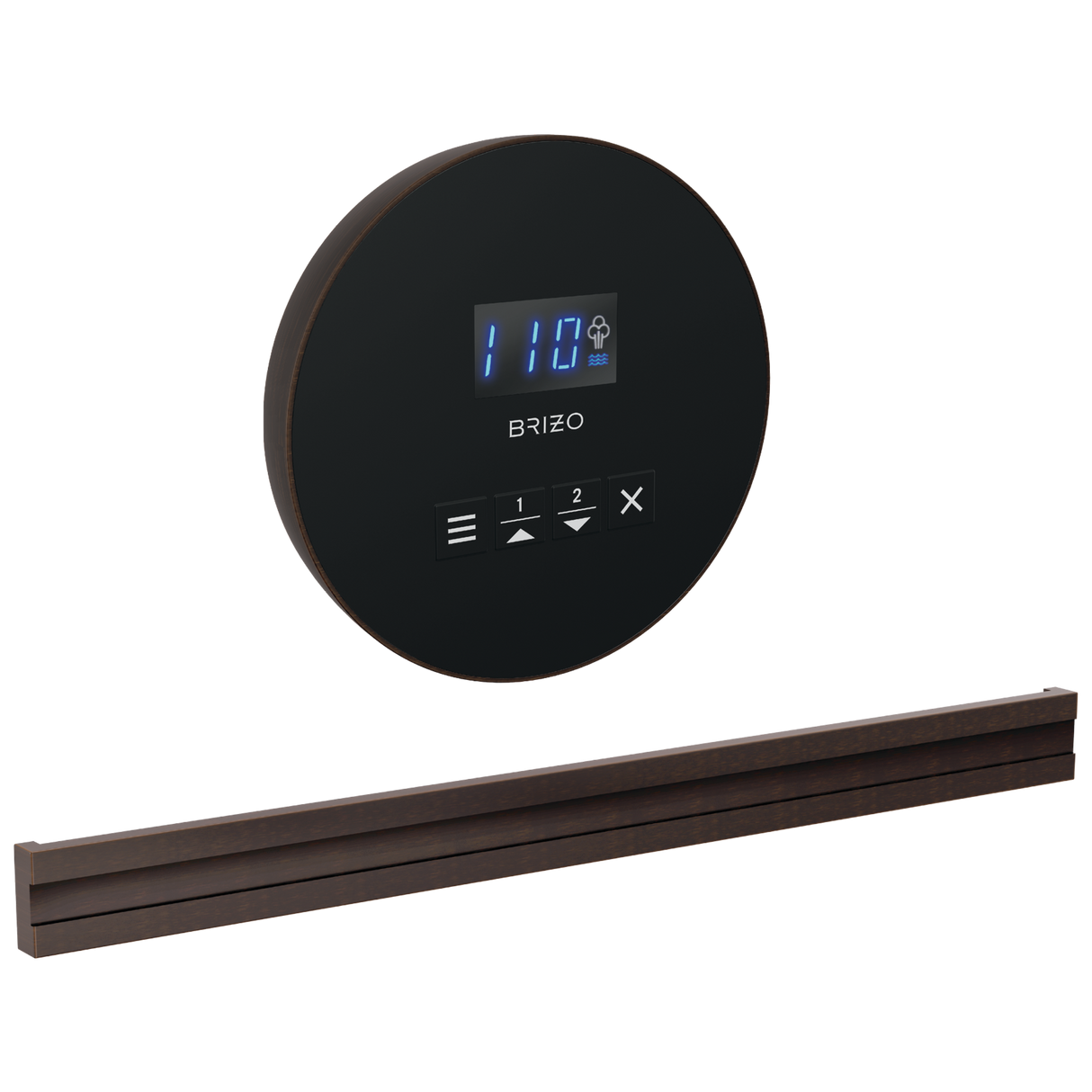

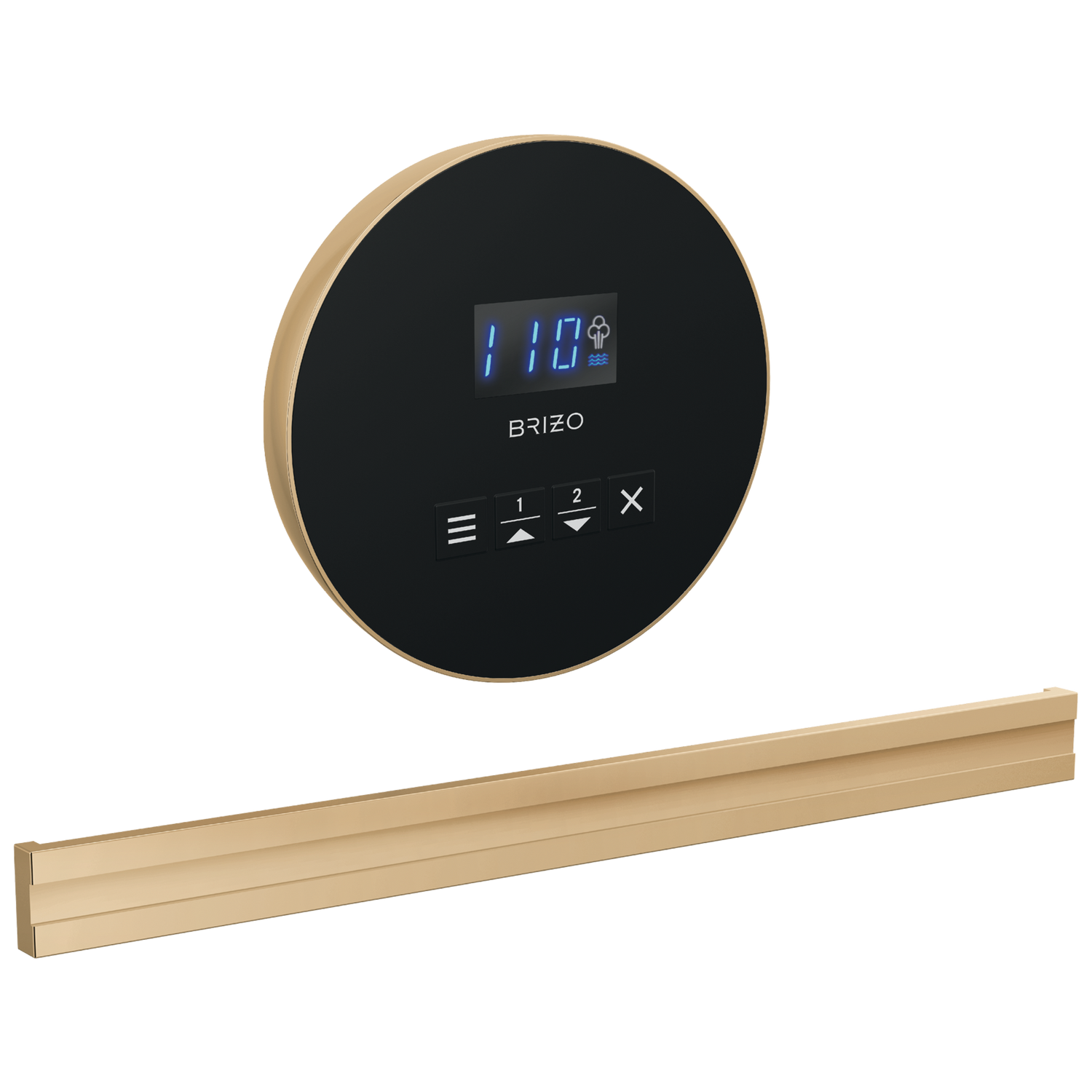

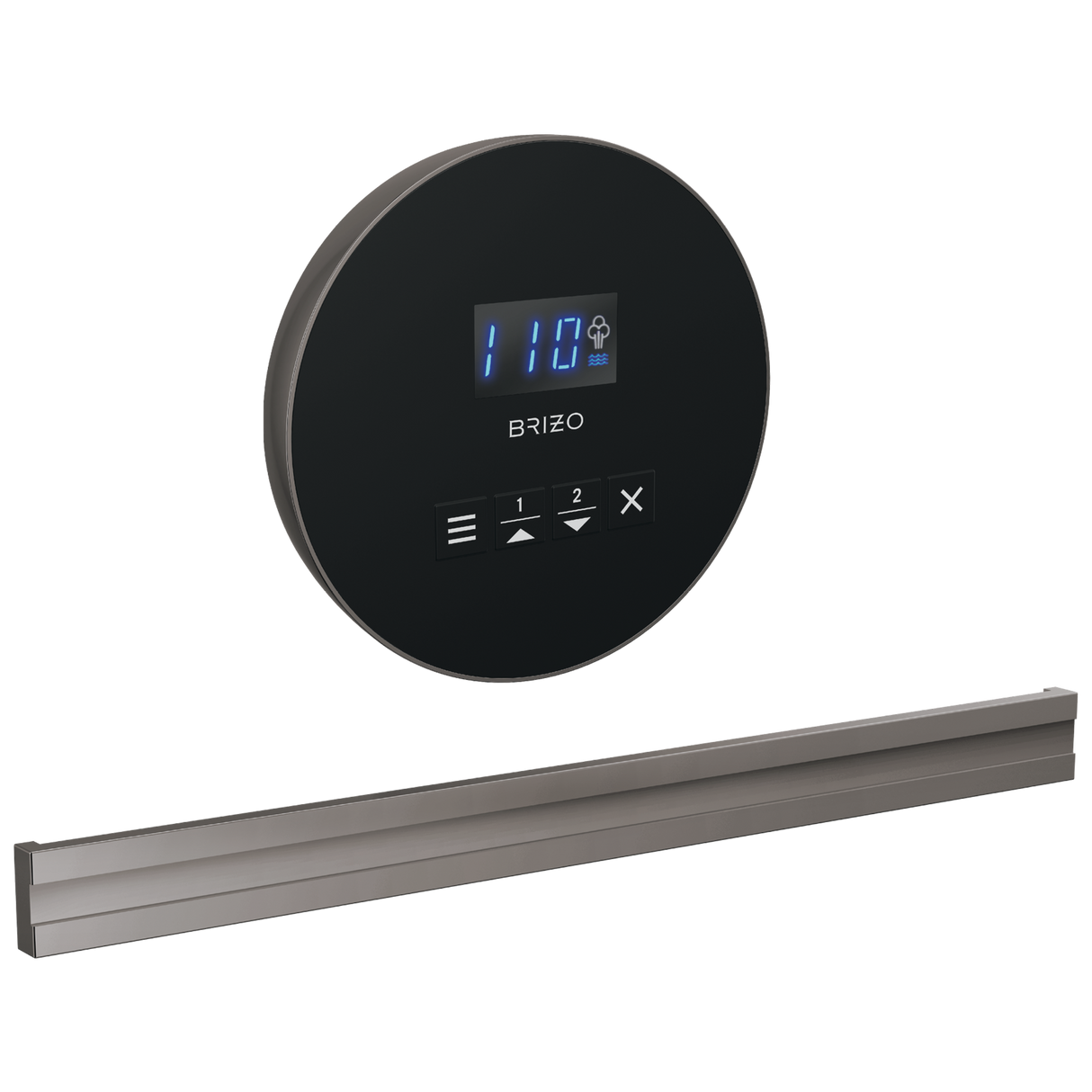

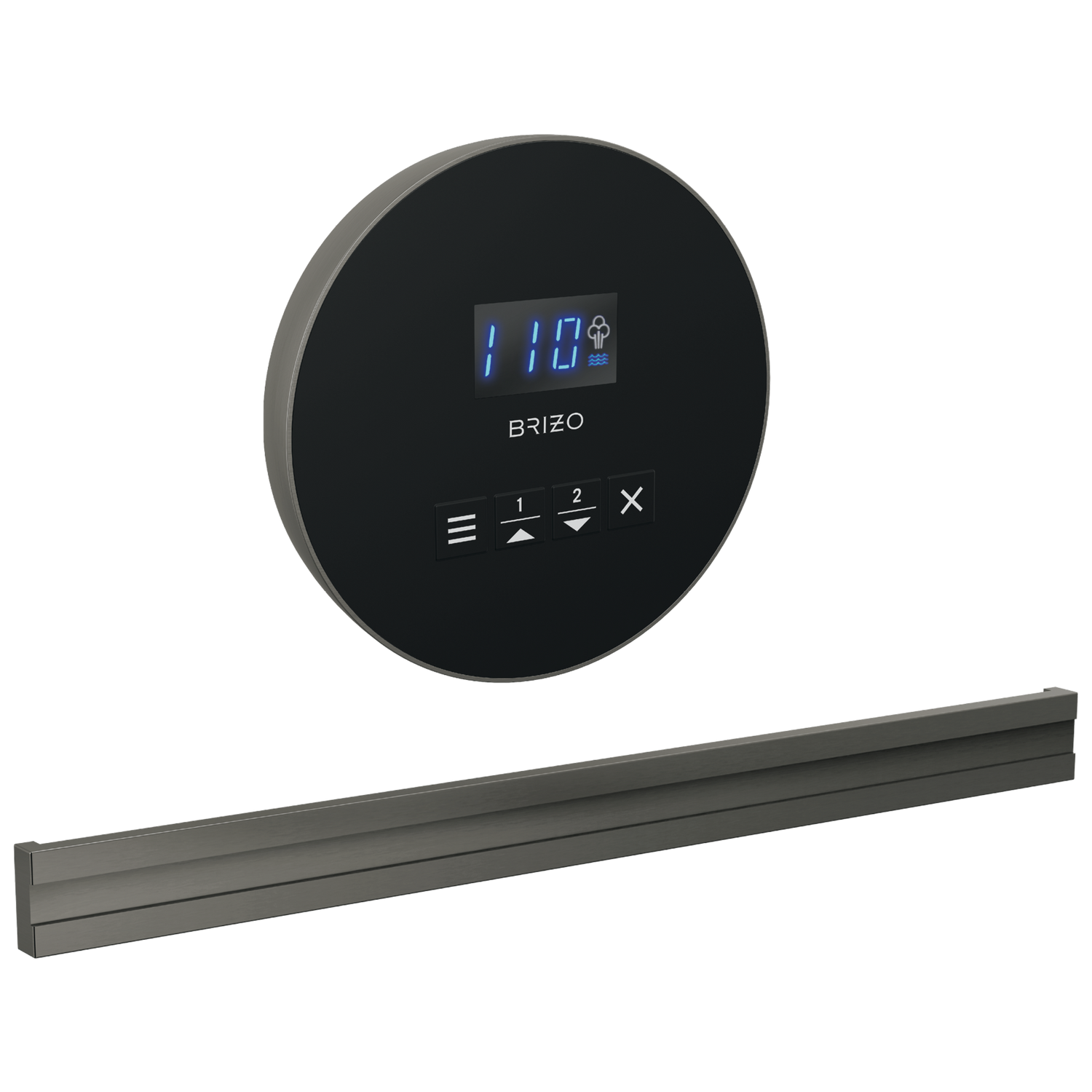

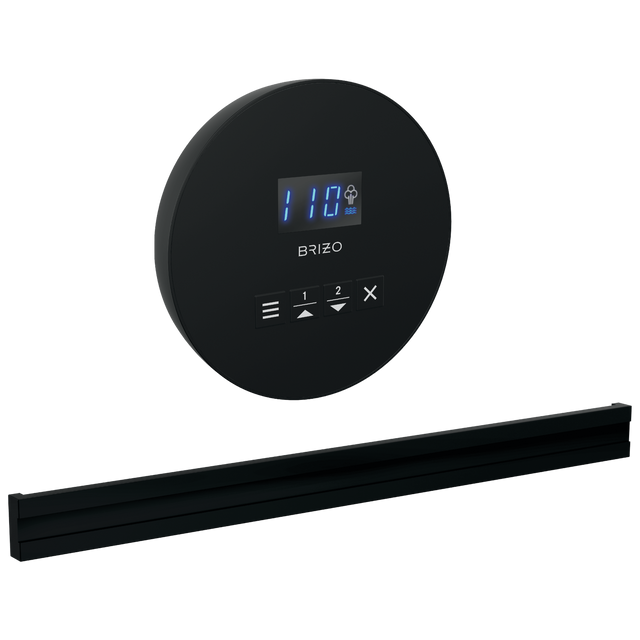

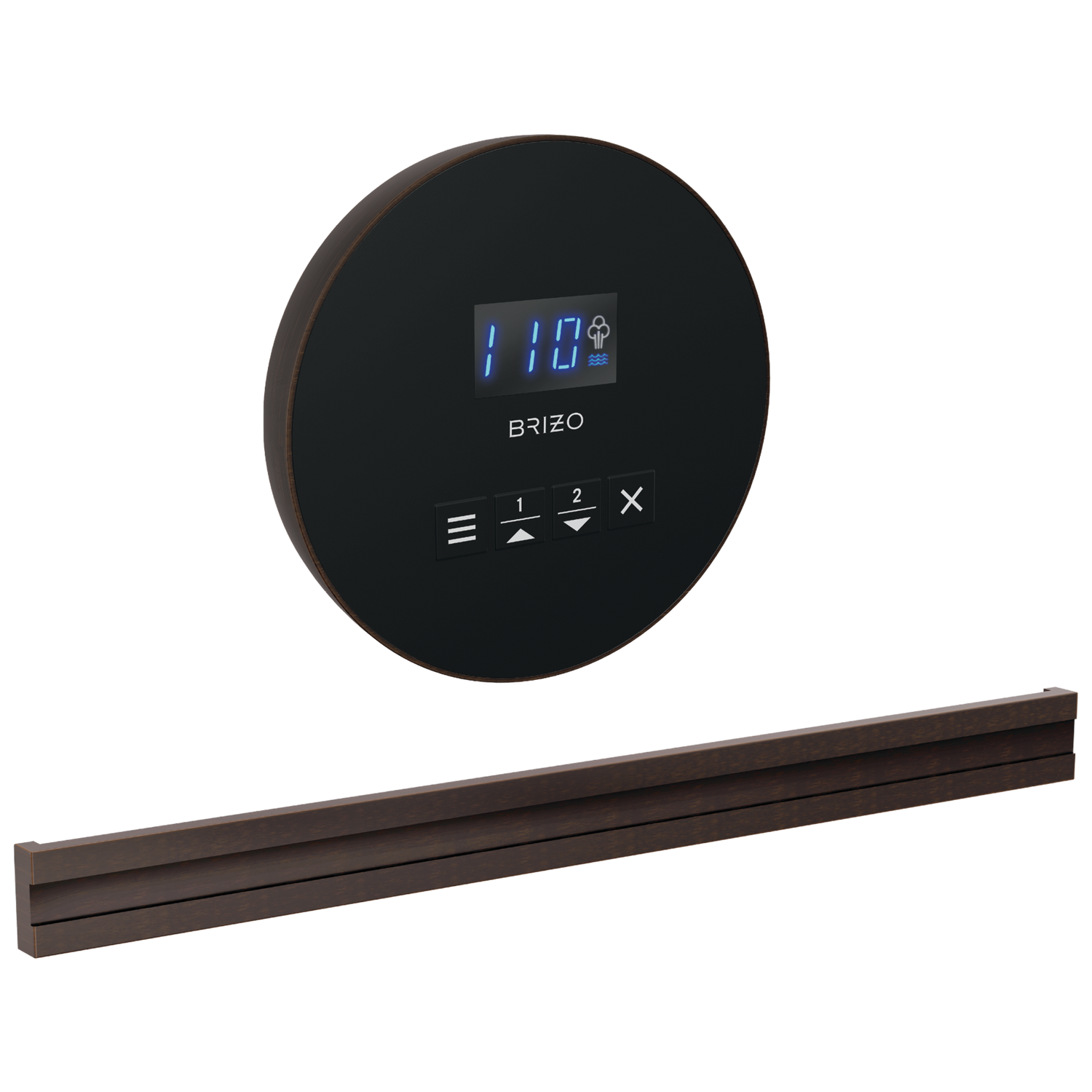

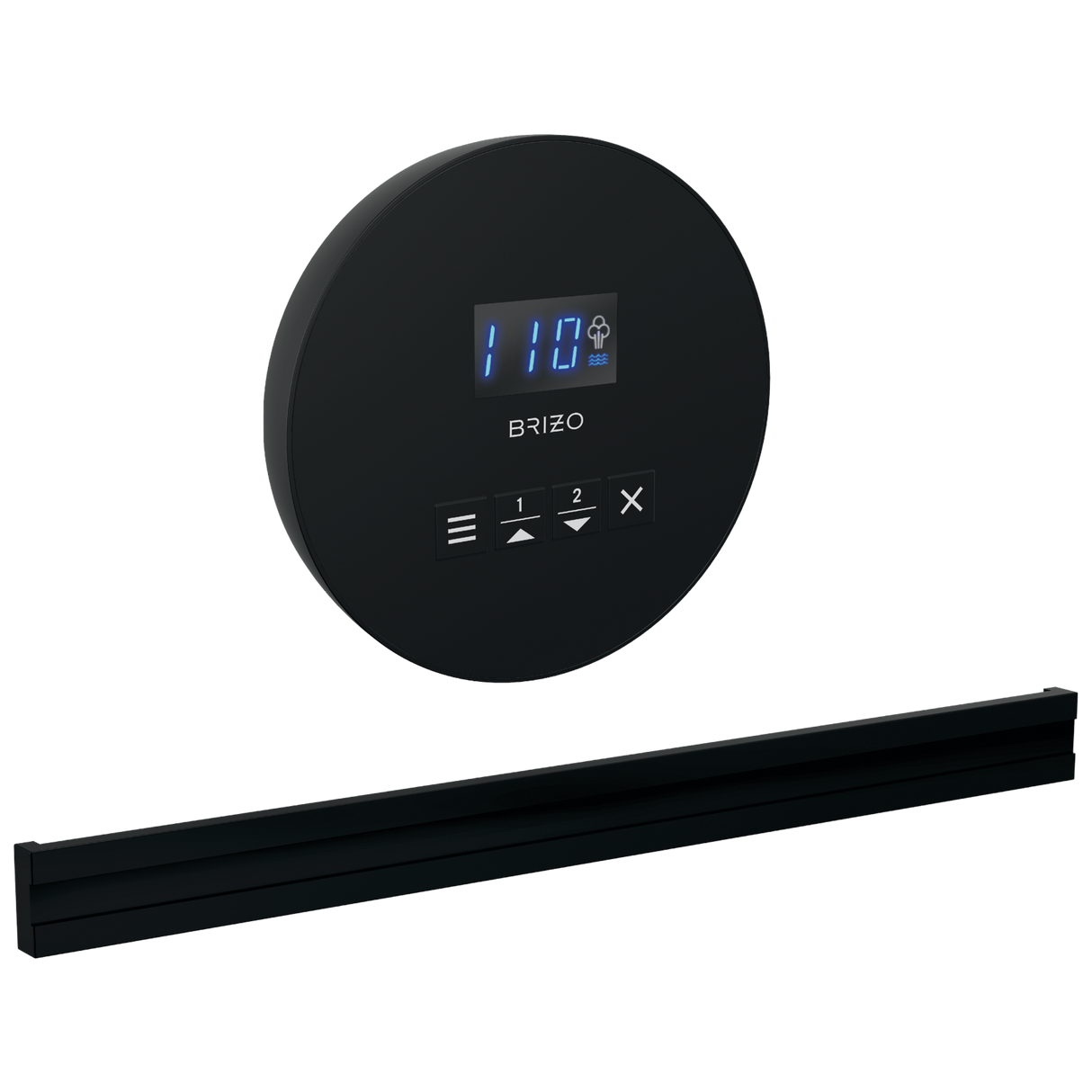

Mystix Elemental Round + Bilateral Steam Set

The Brizo Mystix Elemental Round + Bilateral Steam Set pairs a Mystix Round Steam Control with a Bilateral Steam Head, letting you tailor your steam shower to your exact preferences. The control is programmable for time and temperature, with two user presets that store duration and temperature. The steam generator must be ordered separately.

Features

• Temperature range from 60˚F minimum to 125˚F maximum
• Time programmable up to 60 minutes
• Digital display of ambient temperature, set temperature and elapsed time
• Selectable RapidMist
• Patented Dual Sensor Technology: dual temperature sensors deliver extremely accurate temperature precision to smoothly regulate the steam shower environment
• Bilateral Steam Head directs steam up and down for even dispersion and user comfort
• Solid brass steam head cover plate

Specifications

• Available finishes: Matte Black, Lumicoat Brushed Nickel, Lumicoat Black Onyx, Lumicoat Luxe Gold, Lumicoat Luxe Nickel, Lumicoat Chrome, Lumicoat Polished Gold, Lumicoat Polished Nickel, Venetian Bronze, Lumicoat Luxe Steel
• Control mounting (installation requirement): Surface mount, 1 1/2" hole required; must mount inside the steam room, near the seating area and not above the steam head
• Control mounting height (installation): 48" above the floor
• Steam head mounting height (installation): 12" - 18" above the finished floor or 6" above the rim of the tub, not directly beneath the control
• Electrical service (installation requirement): Low-voltage connection from 8GE-TSG steam generator via multi-conductor cable (supplied with steam generator)
• Steam head connection: 3/4" NPT female thread for connection to the steam line
• Note: Dimensions are for reference only
