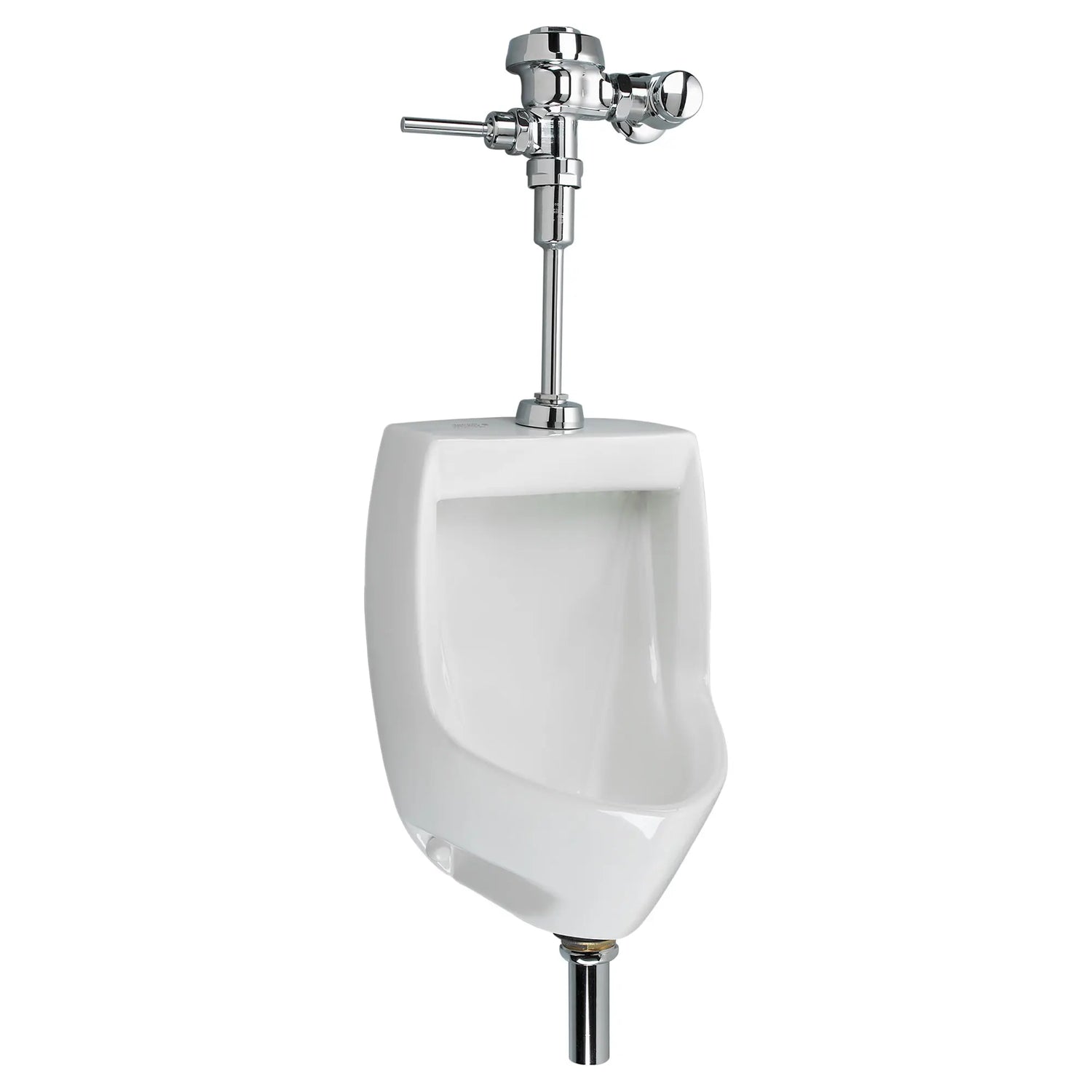

Maybrook® 0.125 – 1.0 gpf (0.47 – 3.8 Lpf) Top Spud Urinal

This high-efficiency urinal uses just 0.125 gallons per flush, which is 87% less than a standard 1.0 GPF urinal. Features include a flushing rim and a washout flush action for effectiveness. This compact, low-consumption model is ideal for commercial applications where reducing water consumption is a priority.

Features

• High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 1.0 gpf (0.47 Lpf – 3.8 Lpf)
• Flushing rim
• Powerful washdown action
• Integral strainer
• 3/4" (19 mm) inlet spud
• Outlet spud with 1-1/2" (38 mm) tubing tailpiece
• Wall hanger included
• Fixture only
• High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 1.0 gpf (0.47 Lpf – 3.8 Lpf)
• Flushing rim
• Powerful washdown action
• Integral strainer
• 3/4" (19 mm) inlet spud
• Outlet spud with 1-1/2" (38 mm) tubing tailpiece
• Wall hanger included
• Fixture only

Specifications

• Brand: American Standard
• Cal Green: Yes
• Category: Urinals
• CEC Certified: Yes
• Color / Finish: White
• Department of Energy Certified: Yes
• Collections: Maybrook
• WaterSense: Yes
• Fixture Material: Vitreous China
• Fixture or Fitting Material: Vitreous China
• Gallons Per Flush (min-max): 0.125 - 1.0 GPF
• Input Connection Type: NPT (National Pipe Tapered Threads)
• Height: 18
• Length: 12-3/4
• Width: 12-3/4
• Residential or Commercial: Commercial
• Rough In Size: 6.75
• Subcategory: Top Spud Urinals
• Warranty: 1 Year Limited Warranty
• Water Efficient: Yes
