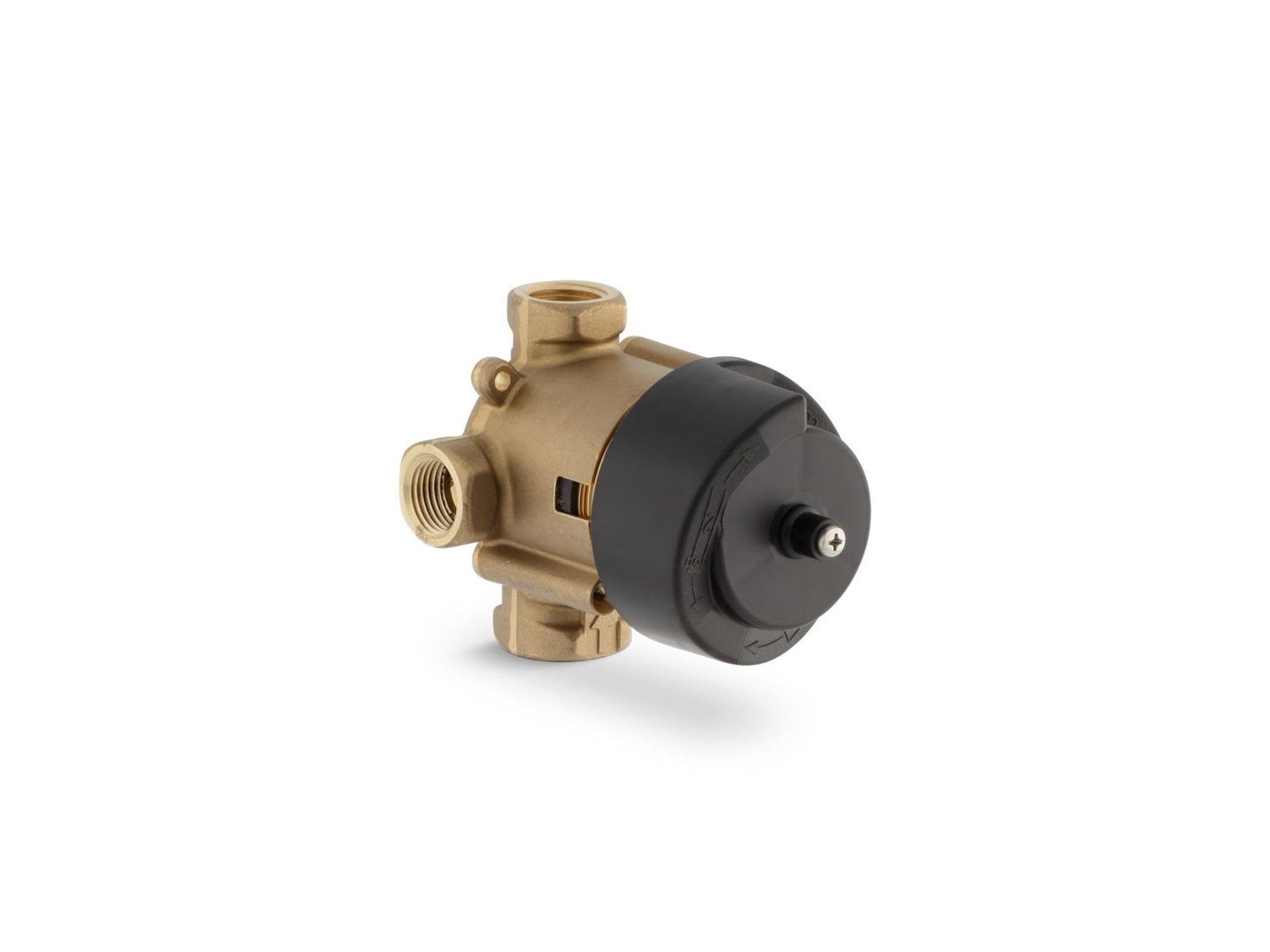

MasterShower® 2- or 3-way diverter valve

At Kohler, we believe a shower should transform you. The KOHLER® MasterShower diverter valve brings a new level of innovation and flexibility as a custom shower solution. When paired with compatible trim, its three-way design allows control of up to three separate components, and can also easily be configured as a two-way diverter valve.

Features

• Diverts water flow to up to three separate components/outlets
• Components/outlets can only be operated individually
• Supplied as a three-way diverter valve (360 degree handle rotation) but can be configured onsite for two-way operation (120 degree handle rotation)
• Single-handle operation
• Using one outlet: 18 gpm flow rate at 45 psi; using two outlets: 20.8 gpm at 45 psi
• One 3/4" female NPT inlet connection
• Three 1/2" female NPT outlet connections
• Requires additional valve/s to control On/Off operation and temperature (sold separately)
• Requires transfer/diverter valve trim (sold separately)

Specifications

• Dimensions: 9.75 x 4.75 x 4.25 in
• Weight: 2.548 lb
• UPC: 885612067845
