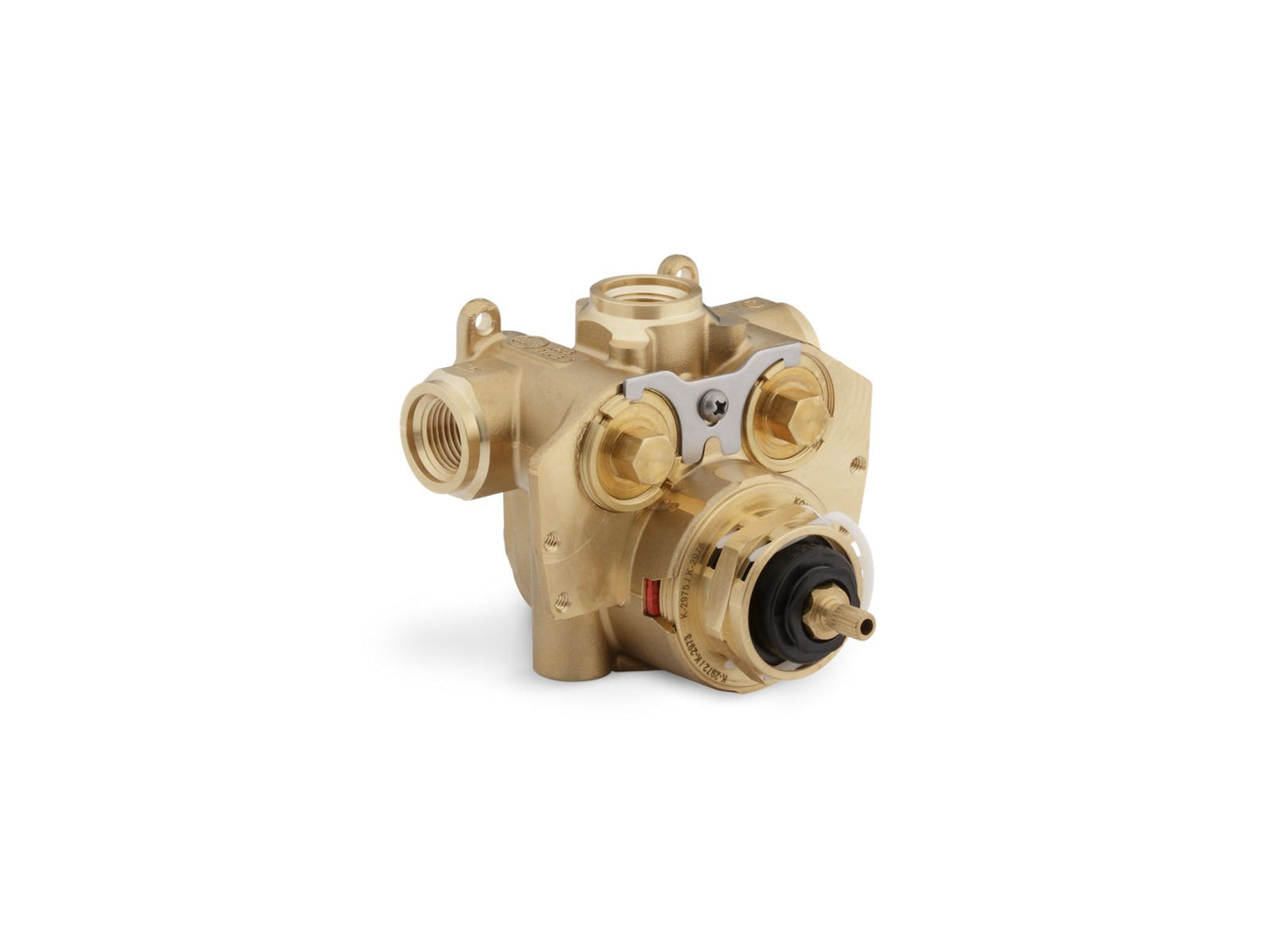

MasterShower® 1/2" thermostatic mixing valve

At Kohler, we believe a shower should transform you. Take showering beyond the ordinary with this 1/2" KOHLER® MasterShower thermostatic valve. When paired with compatible trim, this valve delivers a high-temperature limit stop for added safety and a high-flow rate for precise, consistent temperature control.

Features

• High-flow thermostatic mixing valve
• Thermostatic technology automatically maintains outlet temperature during water pressure fluctuations and/or inlet water temperature changes
• Single-handle temperature control
• 10.9 gpm flow rate at 45 psi (3.1 bar)
• 1/2" (12 mm) female NPT inlet connections
• One 1/2 female NPT outlet connection
• Service stops with integral filters
• Antiscald protection
• Adjustable comfort setting (preset at approximately 104°F)
• Integrated adjustable high-temperature limit stop to control maximum water temperature
• Requires volume control valve trim (sold separately)
• Requires thermostatic trim (sold separately)

Specifications

• Dimensions: 7.438 x 7.438 x 7.063 in
• Weight: 5.13 lb
• UPC: 885612010988

Installation

• Fully-serviceable from the front of the valve
• Cartridge is reversible for installations where hot and cold supplies are reversed
• Requires K-9663 twin ell (sold separately) when using a diverter spout
