Mariposa® 72" x 36" drop-in whirlpool bath

The Kohler Mariposa® 72" x 36" drop-in whirlpool bath combines an hourglass shape with a single-speed whirlpool and six fully adjustable jets. Its generous length provides a spacious bathing area, and multiple pump location options give more choices for installation and access. The acrylic bath comes in White, has a reversible drain and holds 72 gal (272.5 L).

Features

• Single-speed whirlpool with six fully adjustable jets
• Hydromassage flow and direction can be controlled at each jet
• Generous length provides a spacious bathing area
• Hourglass shape
• Textured bottom surface
• Multiple pump location options for installation and access
• Installation requirement: one dedicated circuit, protected with a Class A Ground-Fault Circuit-Interrupter (GFCI).
• Installation note: the hot water supply should be 70% of the capacity of the bath or greater. Installations will vary.

Specifications

• Installation: Drop-in
• Drain location: Reversible
• Colour: White
• Material: Acrylic

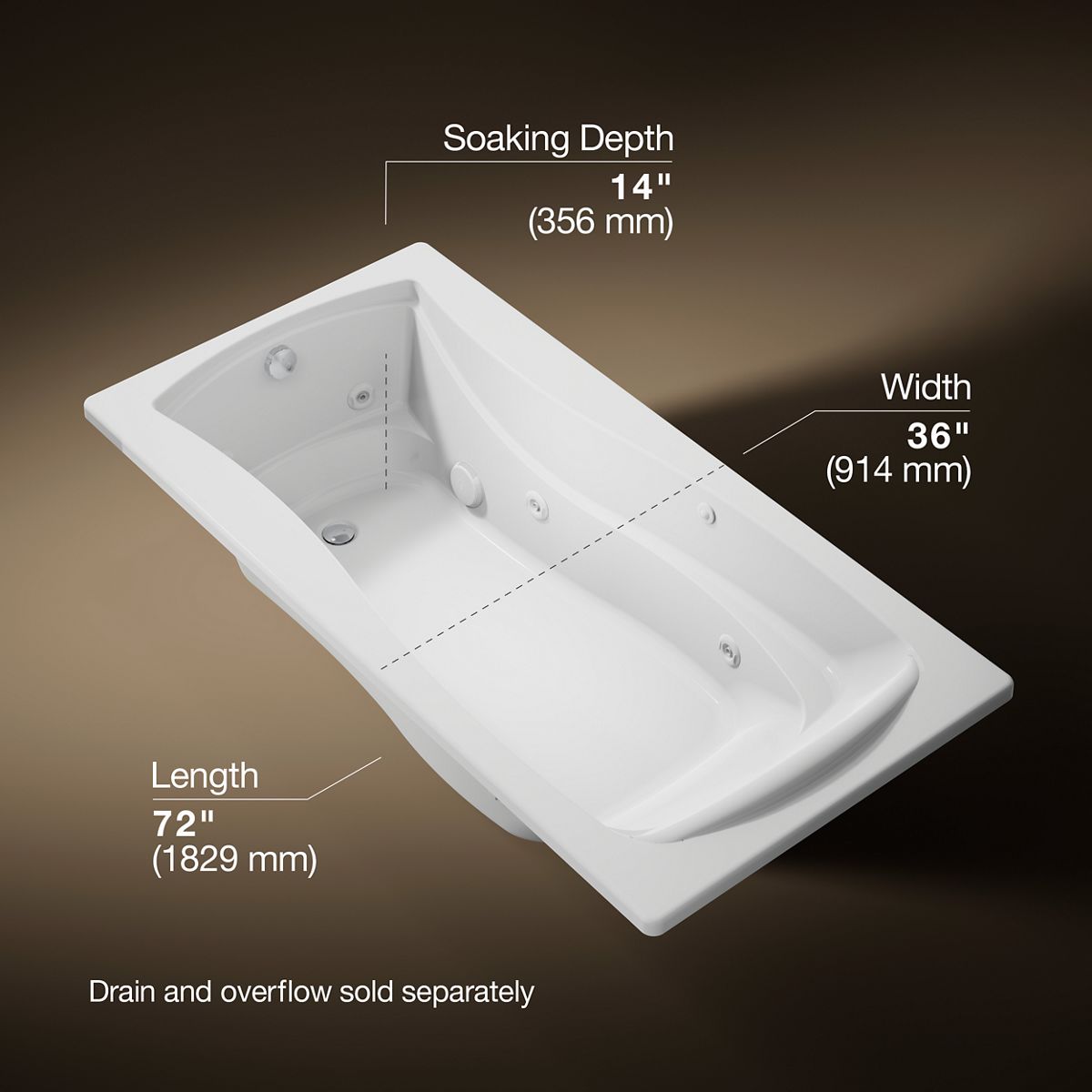

• Basin area, bottom: 50" x 24"
• Basin area, top: 65" x 27"
• Water depth: 14" (356 mm)
• Water capacity: 72 gal (272.5 L)
• Cutout: Drop-in, 70" x 34"
• Drain hole diameter: 2-1/4" (57 mm)
• Minimum flat for door: 2" (50 mm)
• Minimum floor load: 41 lbs/ft²
• Pump/control access: 20" (508 mm) W x 15" (381 mm) H
• Pump rating: 120 V, 7.5 A, 60 Hz, single speed
• Codes/Standards: ASME A112.19.7/CSA B45.10, CSA B45.5/IAPMO Z124, ASTM E162, ASTM E662, UL 1795, UL Listed
• Warranty: KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty
• Hydrotherapy components warranty: KOHLER® Hydrotherapy Components Five-Year Limited Warranty
• Note: All product dimensions are nominal
