Mariposa® 66" x 36" drop-in bath

The Kohler Mariposa® 66" x 36" drop-in bath combines a body-contoured design with extra length and width for enhanced comfort. It is constructed of high-quality acrylic and measures 66"L x 35-7/8"W x 20"H. The bath comes in White, has a textured bottom surface and holds 67 gal (253.6 L).

Features

• Body-contoured design
• Extra length and width enhance bathing comfort
• Textured bottom surface
• High-quality acrylic construction
• Installation note: the hot water supply should be 70% of the capacity of the bath or greater. Installations will vary.

Specifications

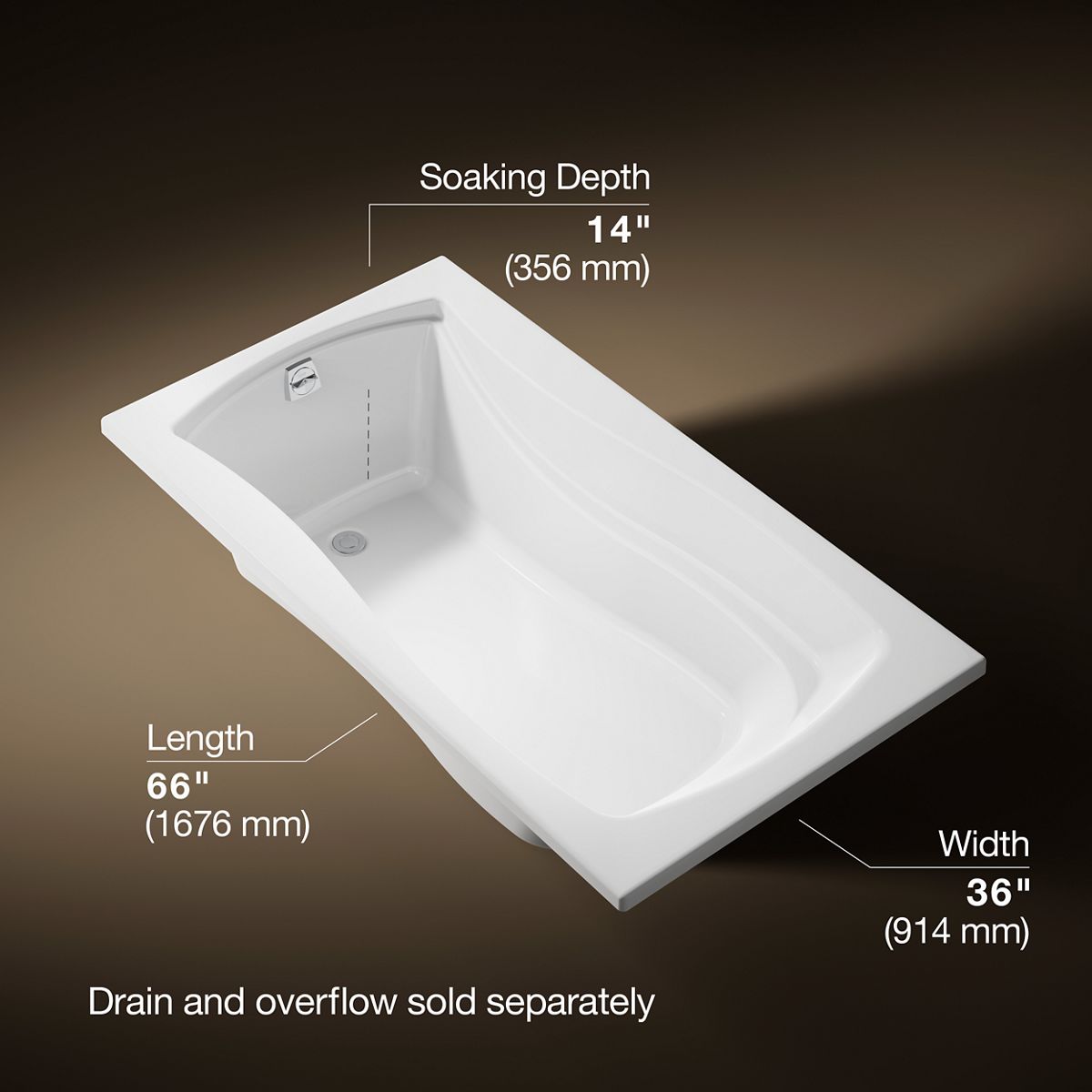

• Dimensions: 66"L x 35-7/8"W x 20"H
• Installation: Drop-in
• Colour: White
• Material: Acrylic
• Basin area, bottom: 48" x 24"
• Basin area, top: 59" x 30"
• Water depth: 14" (356 mm)
• Water capacity: 67 gal (253.6 L)
• Cutout: Drop-in, 64" x 34"
• Drain hole diameter: 2-1/4" (57 mm)
• Minimum flat for door: 1-3/4" (45 mm)
• Minimum floor load: 39 lbs/ft²
• Codes/Standards: CSA B45.5/IAPMO Z124, ASTM E162, ASTM E662
• Warranty: KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty
• Note: All product dimensions are nominal
