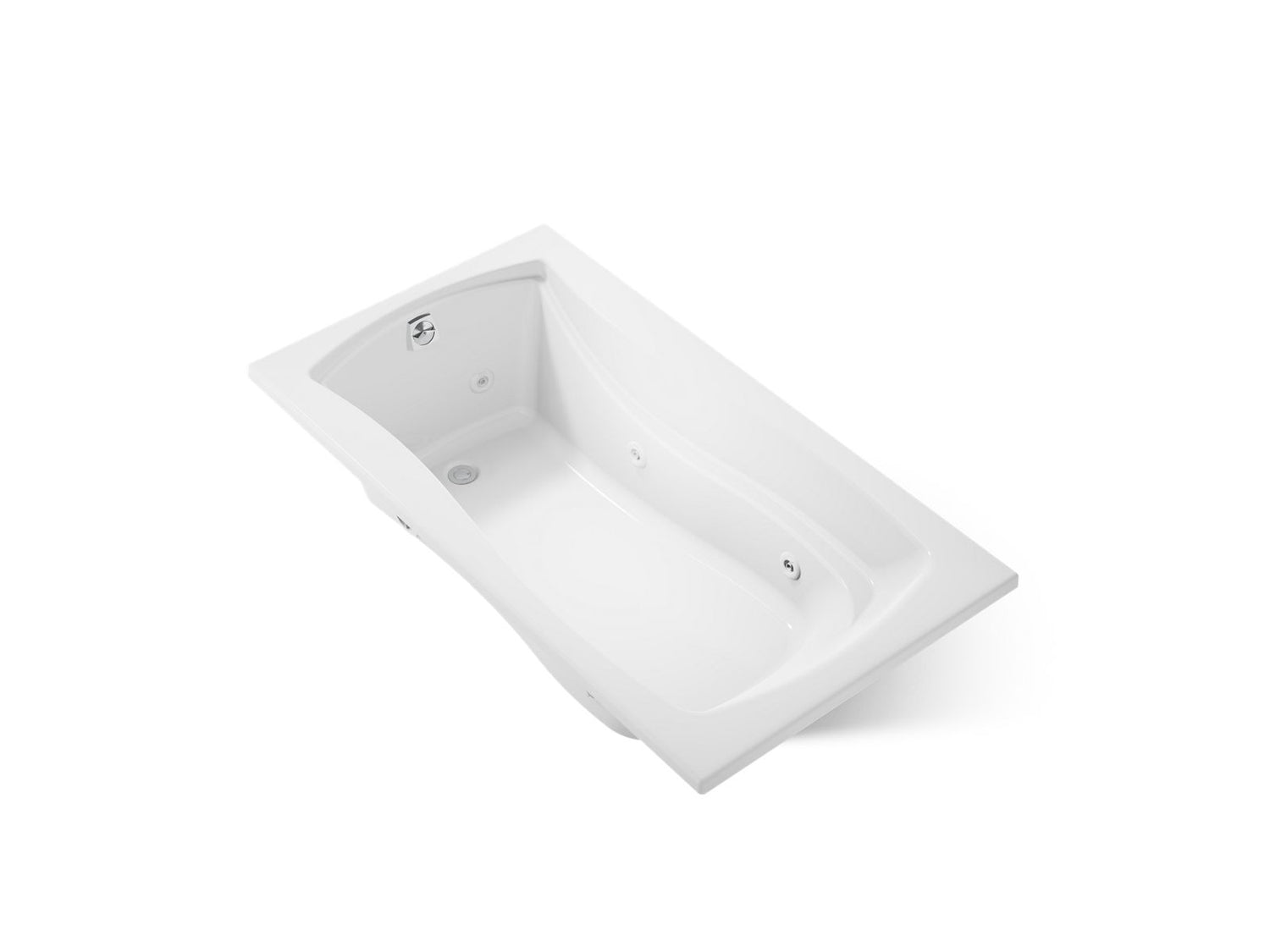

Mariposa® 66" x 35-7/8" drop-in whirlpool bath with end drain and heater

The Kohler Mariposa® 66" x 35-7/8" drop-in whirlpool bath with end drain and heater is an acrylic whirlpool bathtub in White. Its single-speed whirlpool offers performance and value, with 5 fully adjustable jets, and hydromassage flow and direction can be controlled at each jet. A built-in heater and textured bottom surface round out the design.

Features

• Single-speed whirlpool with 5 fully adjustable jets
• Hydromassage flow and direction can be controlled at each jet
• Built-in heater
• Textured bottom surface
• Electrical requirement: two dedicated circuits required, protected with Class A Ground-Fault Circuit-Interrupter (GFCI)
• If installing a rim-mount faucet, make sure there is no interference above or below the deck before drilling any holes
• Installation note: the hot water supply should be 70% of the capacity of the bath or greater; installations will vary.

Specifications

• Installation: Drop-in
• Drain location: Reversible
• Drain hole diameter: 2-1/4" (57 mm)
• Minimum flat for door: 1-15/16" (49 mm)

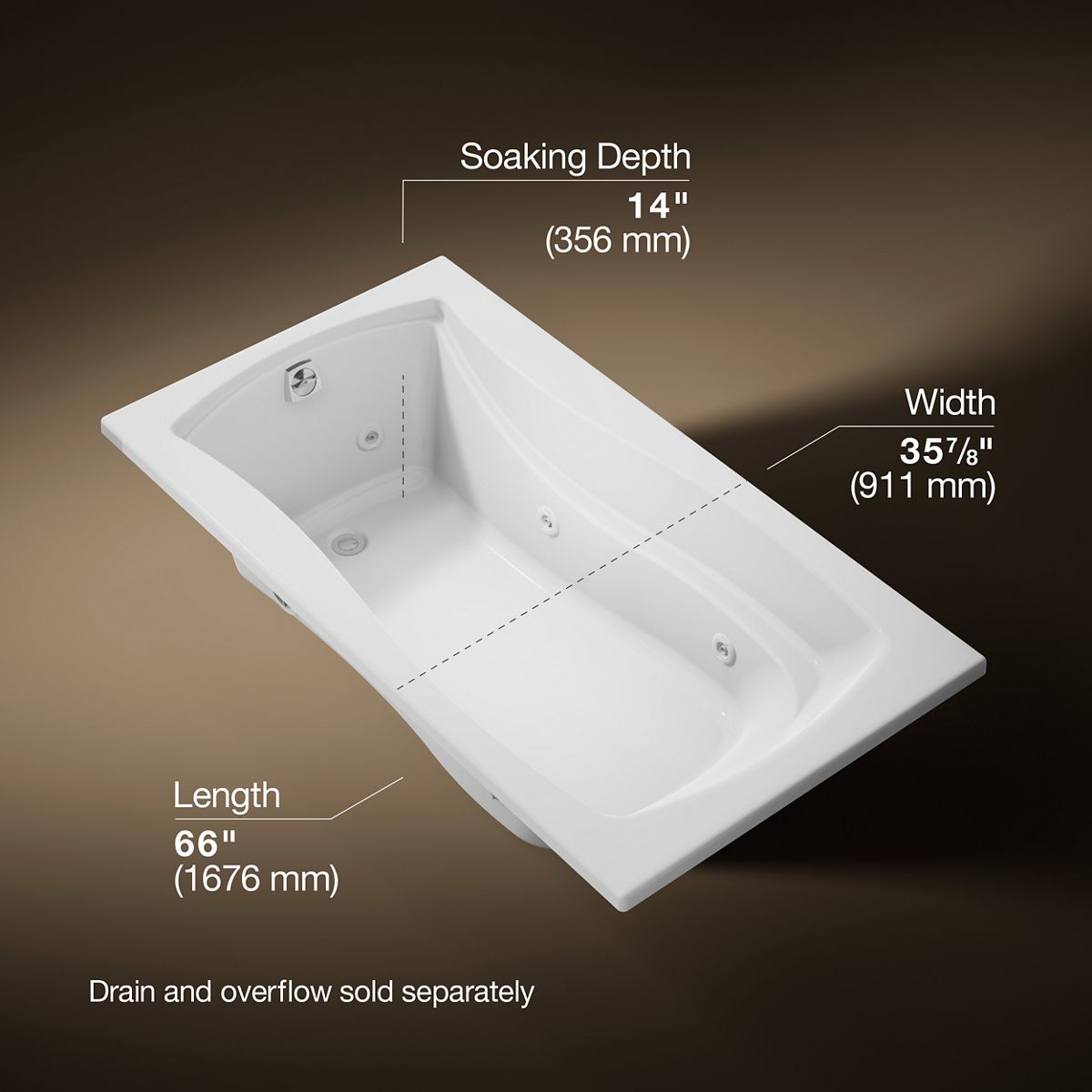

• Basin area, bottom: 48" x 24"
• Basin area, top: 59" x 30"
• Water depth: 14" (356 mm)
• Water capacity: 67 gal (253.6 L)
• Minimum floor load: 43 lbs/ft²
• Cutout: Drop-in, 64" x 34"
• Required electrical service, pump: 120 V, 15 A, 60 Hz
• Required electrical service, heater: 120 V, 15 A, 60 Hz
• Number of speeds: Single
• Material: Acrylic
• Colour: White
• Codes/standards: ASME A112.19.7/CSA B45.10, CSA B45.5/IAPMO Z124, ASTM E162, ASTM E662, UL 1795, UL Listed
• Warranty: KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty; KOHLER® Hydrotherapy Components Five-Year Limited Warranty
• Note: All product dimensions are nominal
