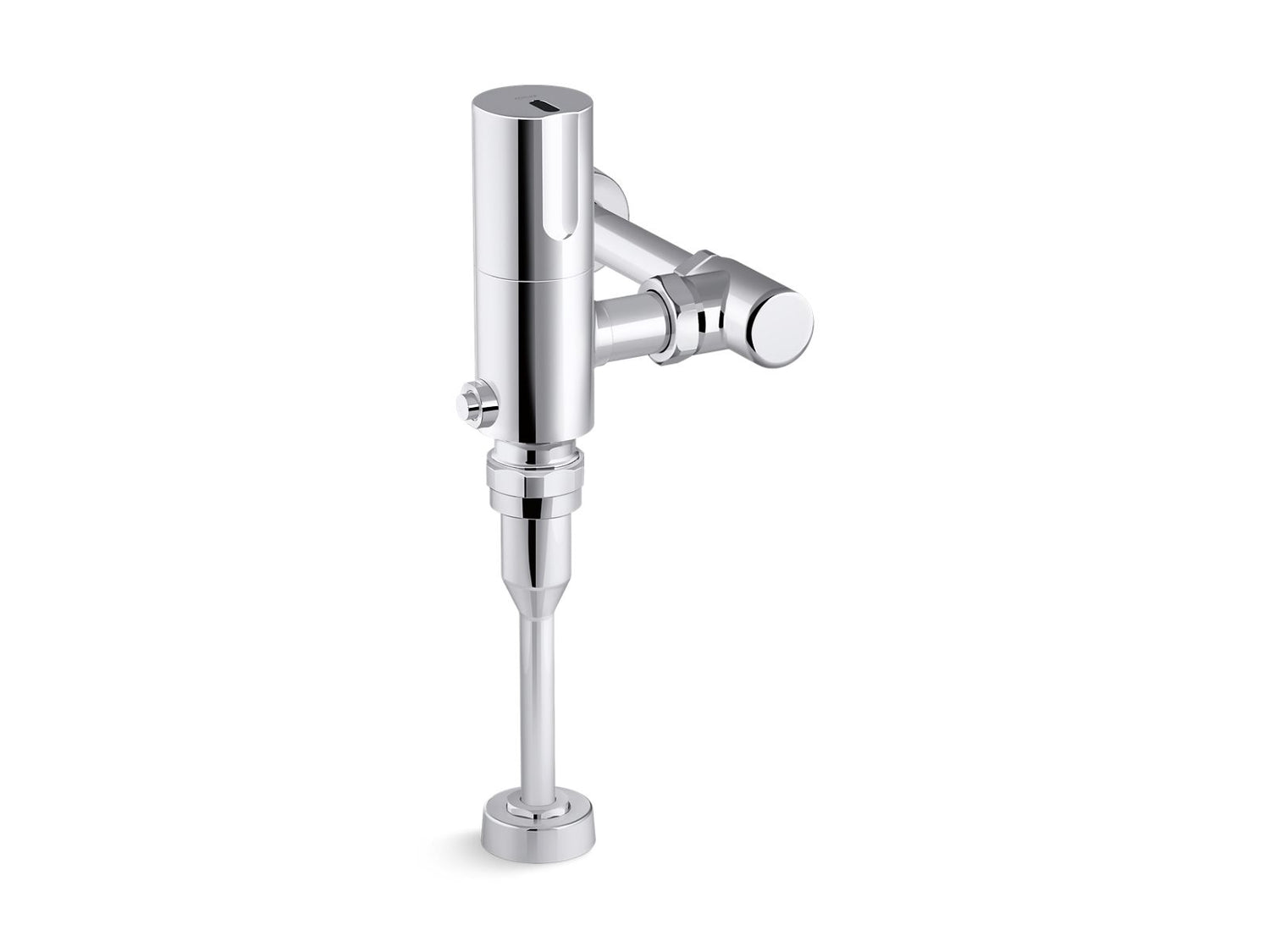

Mach® WAVE Touchless urinal flushometer, DC-powered, .125 gpf

WAVE technology offers hygienic touchless operation on command. Activating only when a hand is waved directly over the flushometer, the sensor eliminates random flushing that can be frightening for children. And by removing false actuations, WAVE technology provides even greater water savings.

Features

• 0.125 gpf (0.47 lpf)
• Activation distance is factory-set
• Chloramine and chlorine resistance on all rubber components exposed to waterway
• Engineered for optimal performance with KOHLER® commercial fixtures
• 125-micron filter protects internal components
• High back pressure vacuum breaker
• Locking stop cap provides protection against vandalism
• No external flush volume adjustment ensures water conservation
• 24-hour automatic sentinel flush keeps trapway fresh
• Mechanical override enables flushometer to be used manually even during a power outage
• Includes 1.5V AA alkaline batteries
• Patented piston technology for superior flush volume accuracy

Specifications

• Dimensions: 12.44 x 10.25 x 4.125 in
• Weight: 7.89 lb
• UPC: 885612624420

Installation

• Intended for urinal installations with 3/4" (19 mm) top spud coupling connection
