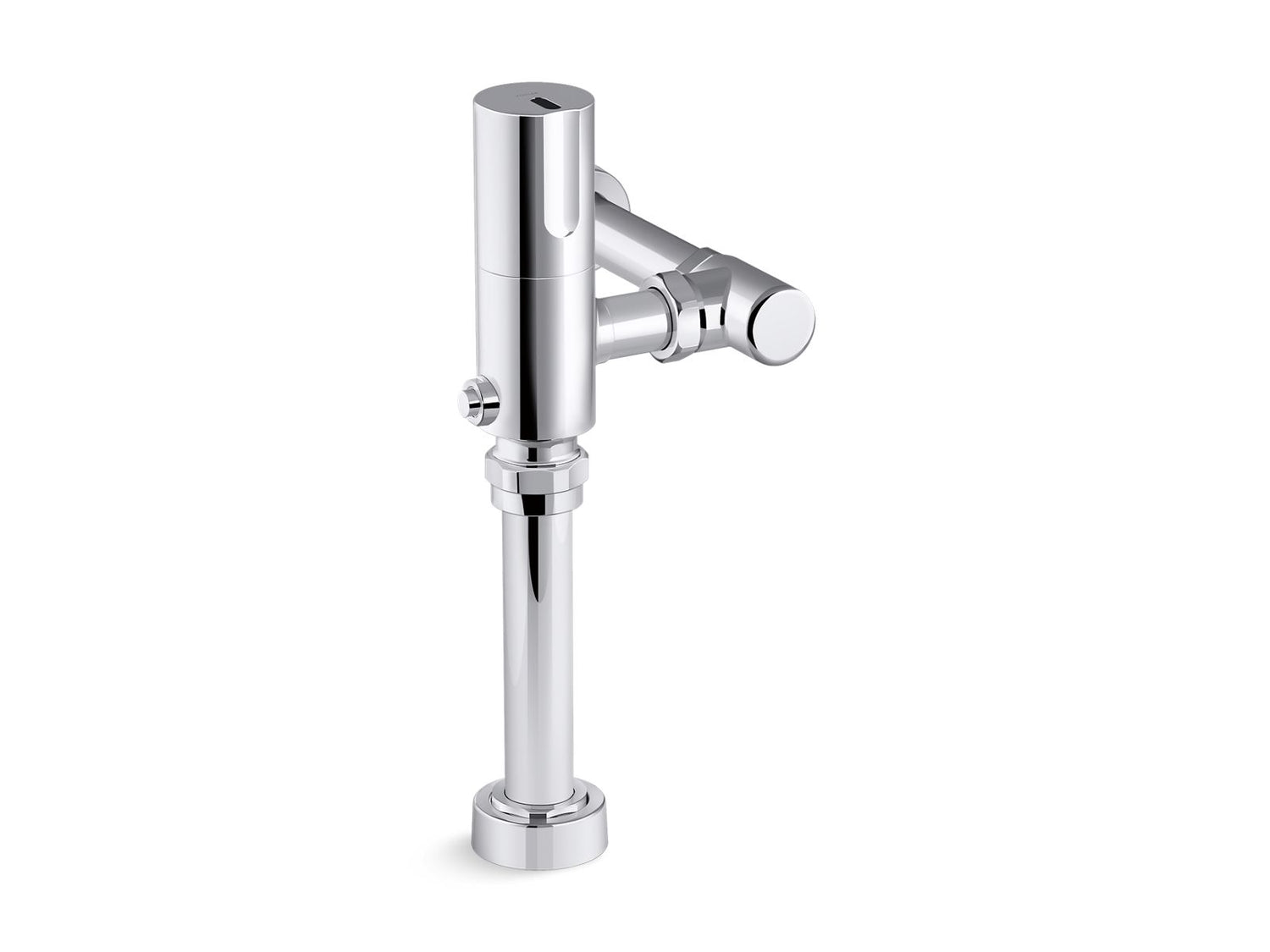

Mach® WAVE Touchless toilet flushometer, HES-powered, 1.0 gpf

WAVE technology offers hygienic touchless operation on command. Activating only when a hand is waved directly over the flushometer, the sensor eliminates random flushing that can be frightening for children. And by removing false actuations, WAVE technology provides even greater water savings.

Features

• Water-saving 1.0 gpf (3.8 lpf) flush valve uses 22% less water than 1.28 gpf (4.8 lpf) flush valves
• Activation distance is factory-set
• Chloramine and chlorine resistance on all rubber components exposed to waterway
• Engineered for optimal performance with KOHLER® commercial fixtures
• 125-micron filter protects internal components
• High back pressure vacuum breaker
• Locking stop cap provides protection against vandalism
• No external flush volume adjustment ensures water conservation
• 24-hour automatic sentinel flush keeps trapway fresh
• Mechanical override enables flushometer to be used manually even during a power outage
• Powered by a 30 year/875,000 cycle hybrid energy cell, based on 72 uses per day
• Patented piston technology for superior flush volume accuracy

Specifications

• Dimensions: 12.44 x 10.25 x 4.125 in
• Weight: 7.91 lb
• UPC: 885612624178

Installation

• Intended for toilet installations with 1-1/2" (38 mm) top spud coupling connection
