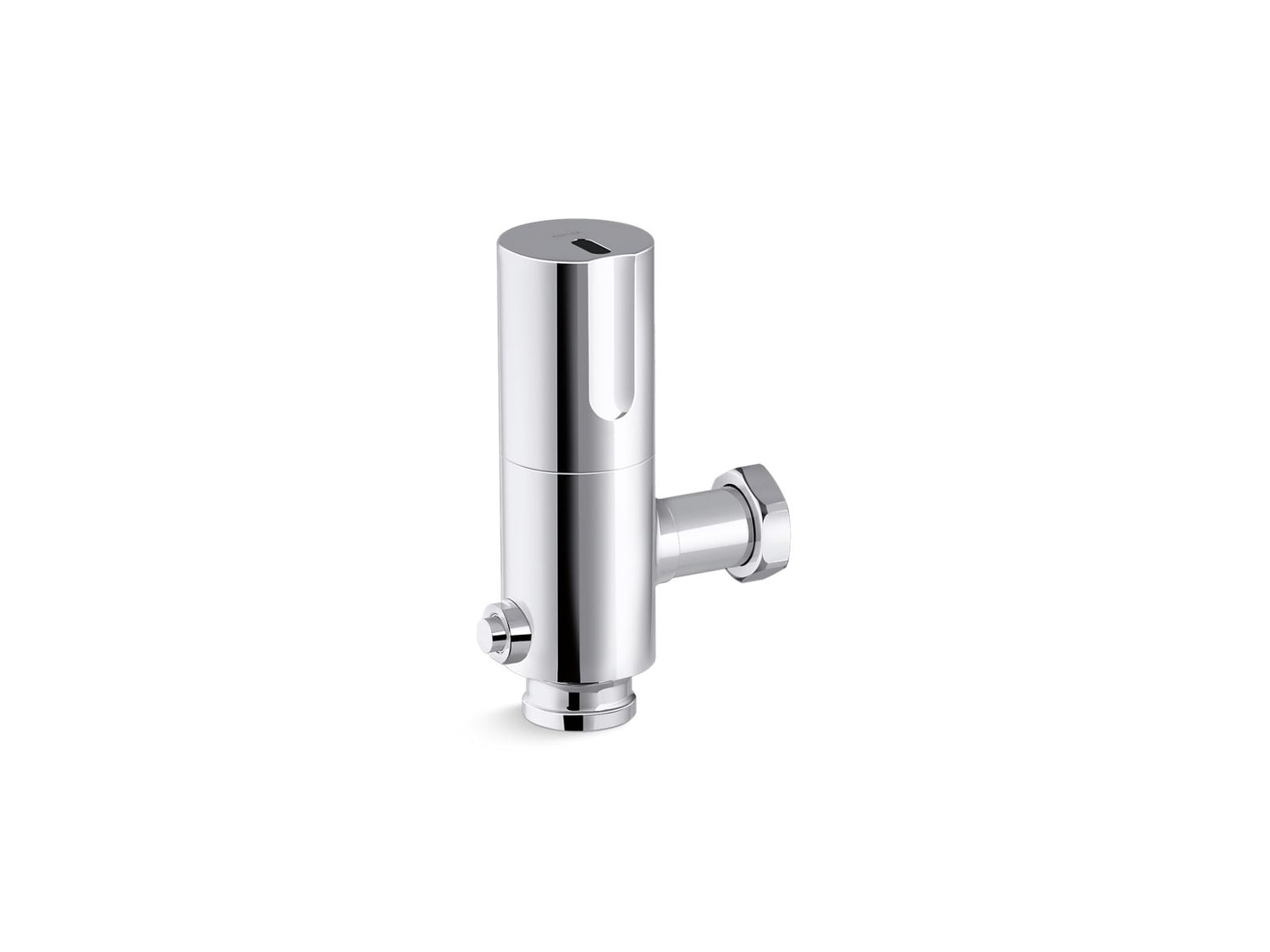

Mach® WAVE Touchless retrofit urinal flushometer, HES-powered, 0.5 gpf

Operating with a sophisticated electronic sensor, touchless flushometers with Mach WAVE technology feature highly accurate, dependable performance. These low water consumption flushometer valves, which offer attractive options for any commercial or institutional installation, comply with the guidelines of the Americans with Disabilities Act (ADA).

Features

• 0.5 gpf (1.9 lpf)
• Activation distance is factory-set
• Chloramine and chlorine resistance on all rubber components exposed to waterway
• Engineered for optimal performance with KOHLER® commercial fixtures
• 125-micron filter protects internal components
• No external flush volume adjustment ensures water conservation
• 24-hour automatic sentinel flush keeps trapway fresh
• Mechanical override enables flushometer to be used manually even during a power outage
• Powered by a 30 year/875,000 cycle hybrid energy cell, based on 72 uses per day
• Less stop valve and tailpiece
• Patented piston technology for superior flush volume accuracy

Specifications

• Dimensions: 12.44 x 10.25 x 4.125 in
• Weight: 5.57 lb
• UPC: 885612624260

Installation

• Intended for urinal installations with 3/4" (19 mm) top spud coupling connection
