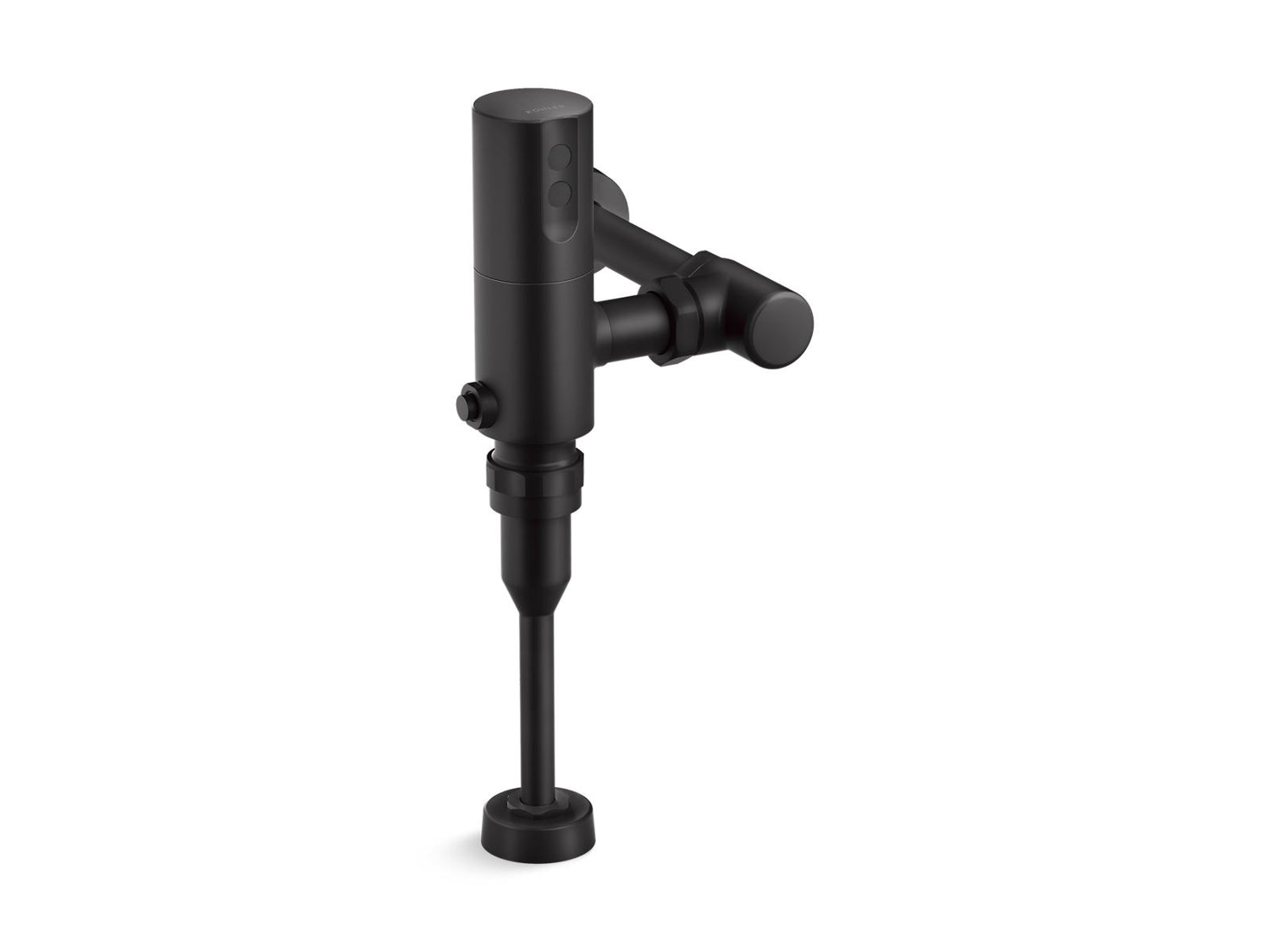

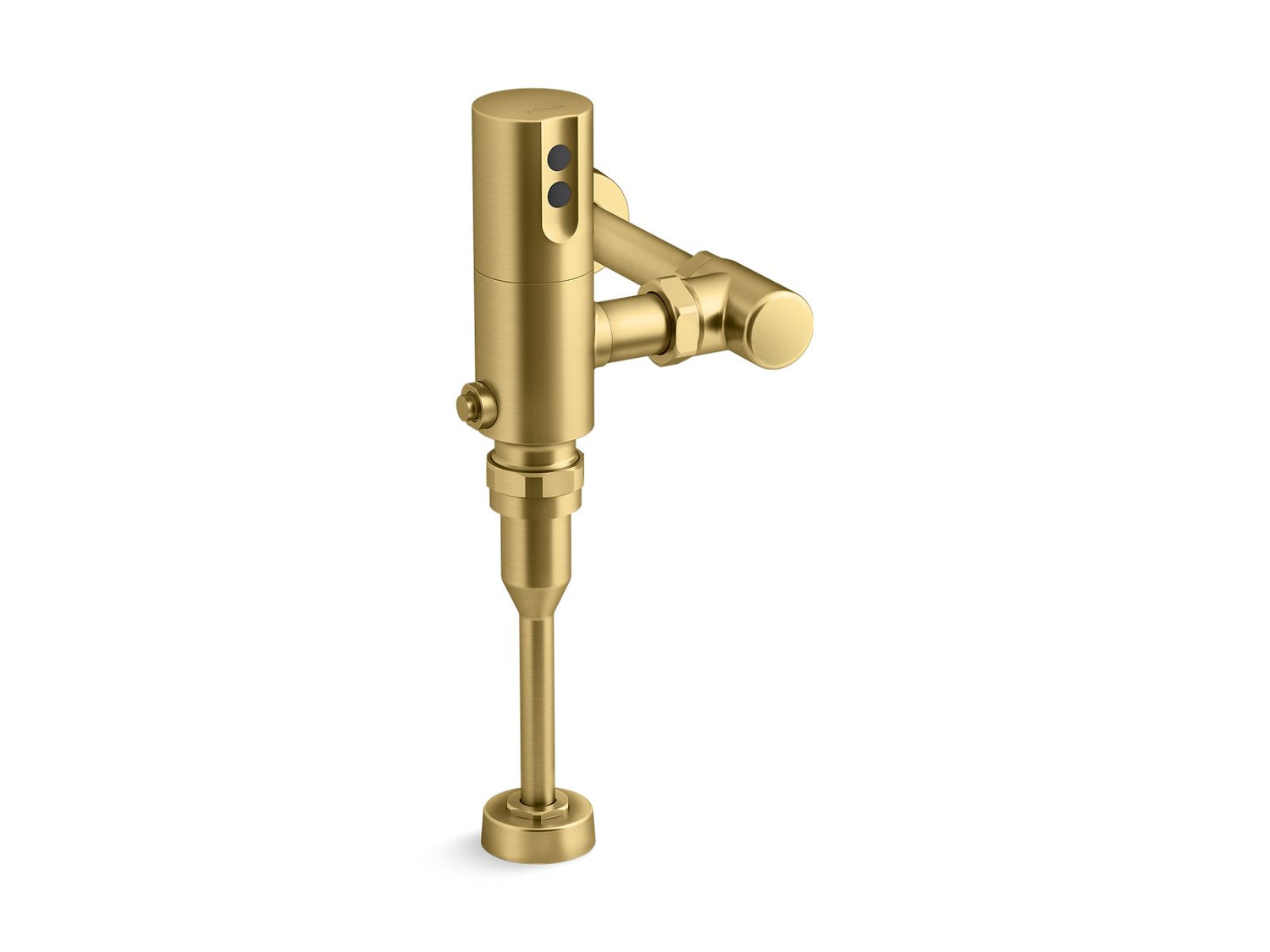

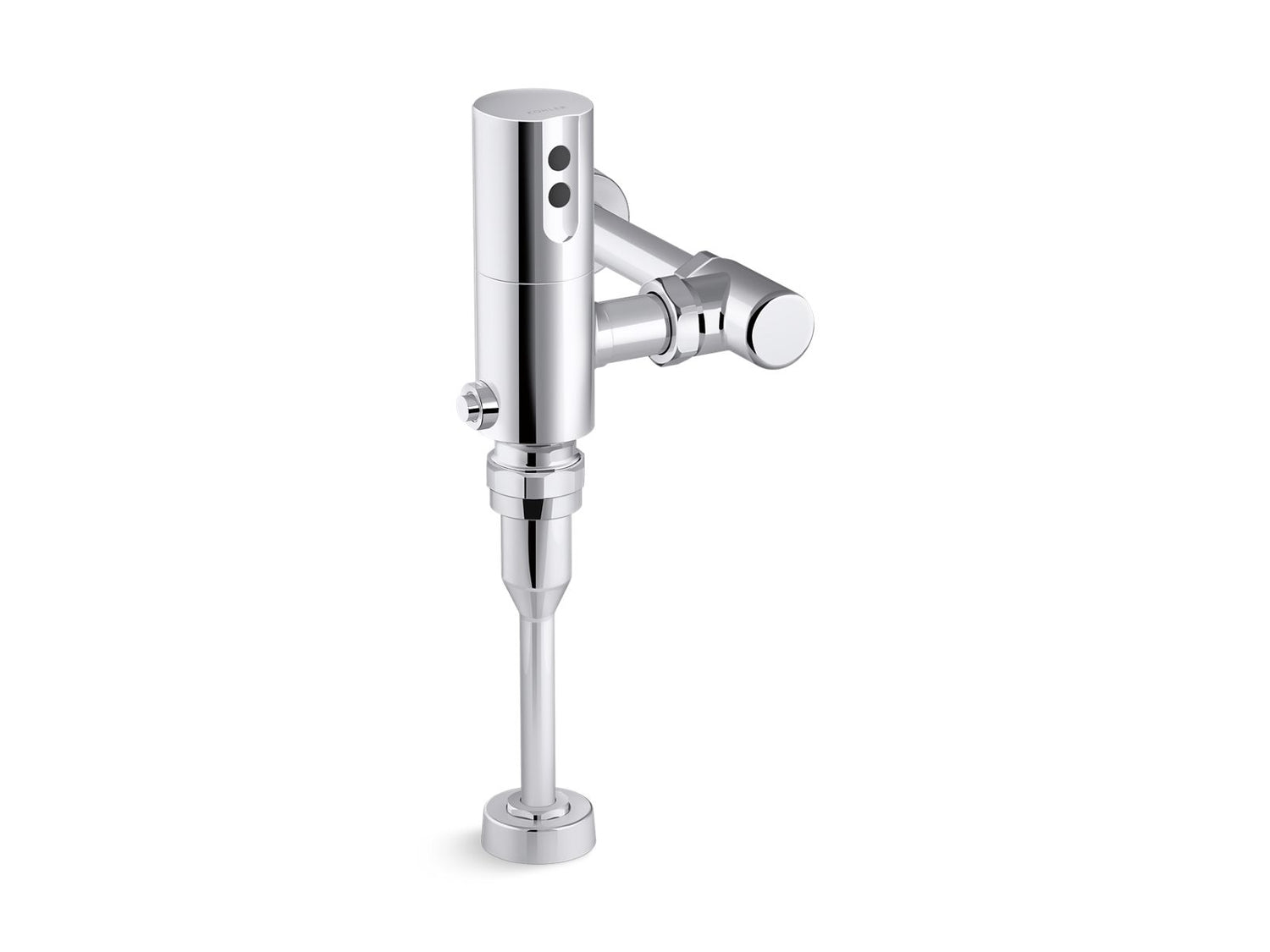

Mach® Tripoint® Touchless urinal flushometer, DC-powered, 0.125 gpf

Operating with a sophisticated electronic sensor, touchless flushometers with Mach Tripoint™ technology feature highly accurate, dependable performance. These flushometer valves, which offer attractive options for any commercial or institutional installation, comply with the guidelines of the Americans with Disabilities Act (ADA). Elevate your experience with KOHLER®.

Features

• 0.125 gpf (0.47 lpf)
• Activation distance is factory-set
• Chloramine and chlorine resistance on all rubber components exposed to waterway
• Engineered for optimal performance with KOHLER® commercial fixtures
• 125-micron filter protects internal components
• High back pressure vacuum breaker
• Locking stop cap provides protection against vandalism
• No external flush volume adjustment ensures water conservation
• 24-hour automatic sentinel flush keeps trapway fresh
• Mechanical override enables flushometer to be used manually even during a power outage
• Powered by 1.5 V AA lithium batteries
• Patented piston technology for superior flush volume accuracy

Specifications

• Dimensions: 12.44 x 10.25 x 4.125 in
• Weight: 7.91 lb
• UPC: 195711037886

Installation

• Intended for urinal installations with 3/4" (19 mm) top spud coupling connection
