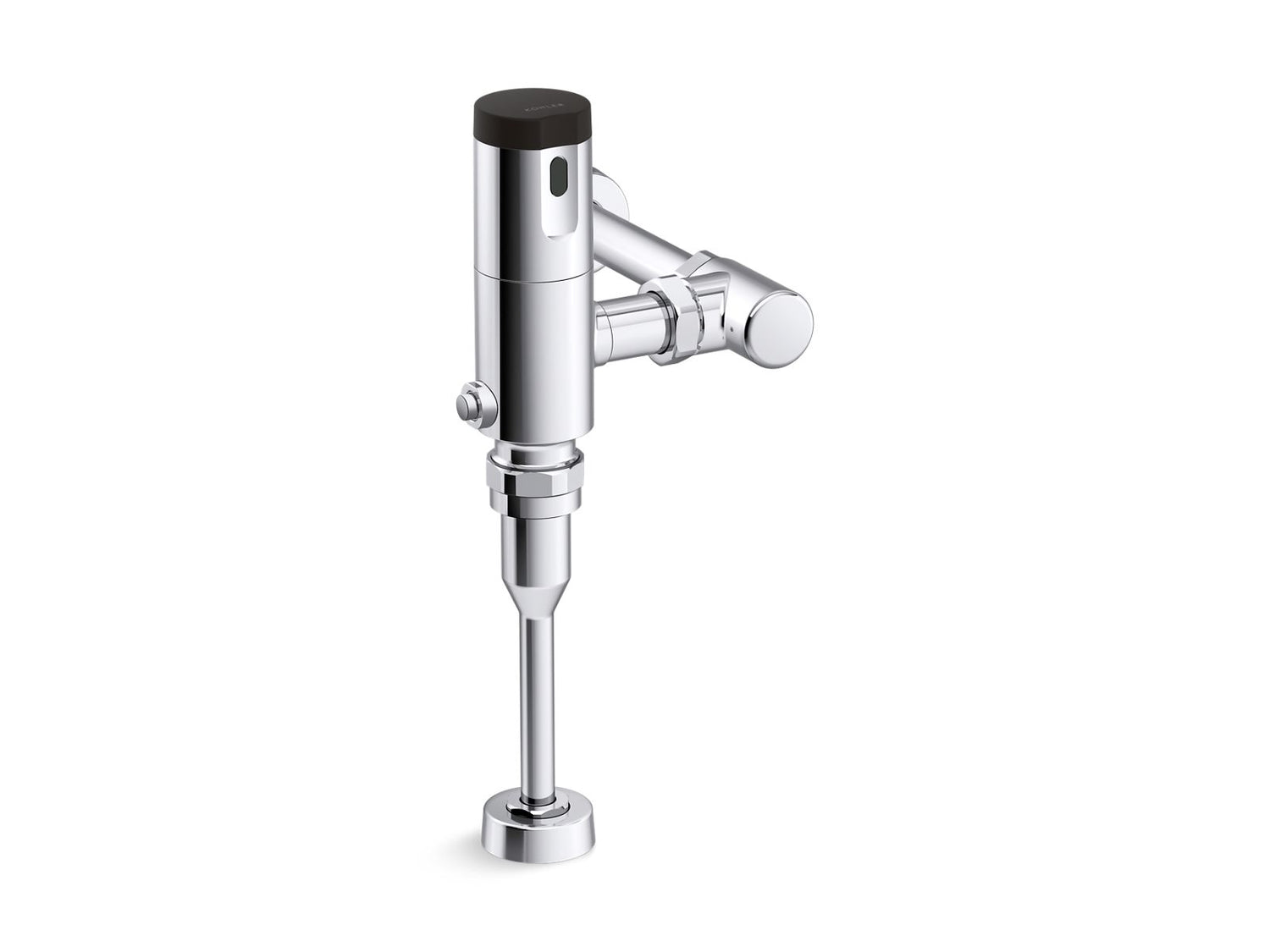

Mach Flex™ Touchless urinal flushometer, Cortex™-compatible, DC-powered, 0.125 gpf

Operating with a sophisticated sensor, Mach touchless flushometers with Flex technology feature highly accurate sensing. Mach Flex technology is also compatible with Cortex technology, enabling several parameters to be modified by approved tech professionals when used with the Cortex mobile app or Cortex-connected ecosystem. Please contact info@kohlercortex.com for more information on the Cortex-connected ecosystem.

Features

• 0.125 gpf (0.47 lpf)
• Activation distance, arming time, flush delay, and several other parameters can be adjusted by approved tech professionals using Cortex™ mobile app
• Chloramine and chlorine resistance on all rubber components exposed to waterway
• 125-micron filter protects internal components
• Locking stop cap provides protection against vandalism
• Adjustable automatic sentinel flush keeps trapway fresh while saving water
• Mechanical override enables flushometer to be used manually even during a power outage
• Powered by long-lasting energy cell to eliminate frequent battery replacement
• Patented piston technology for superior flush volume accuracy

Specifications

• Dimensions: 12.44 x 10.25 x 4.125 in
• Weight: 6 lb
• UPC: 195711070869

Installation

• Intended for urinal installations with 3/4" (19 mm) top spud coupling connection
