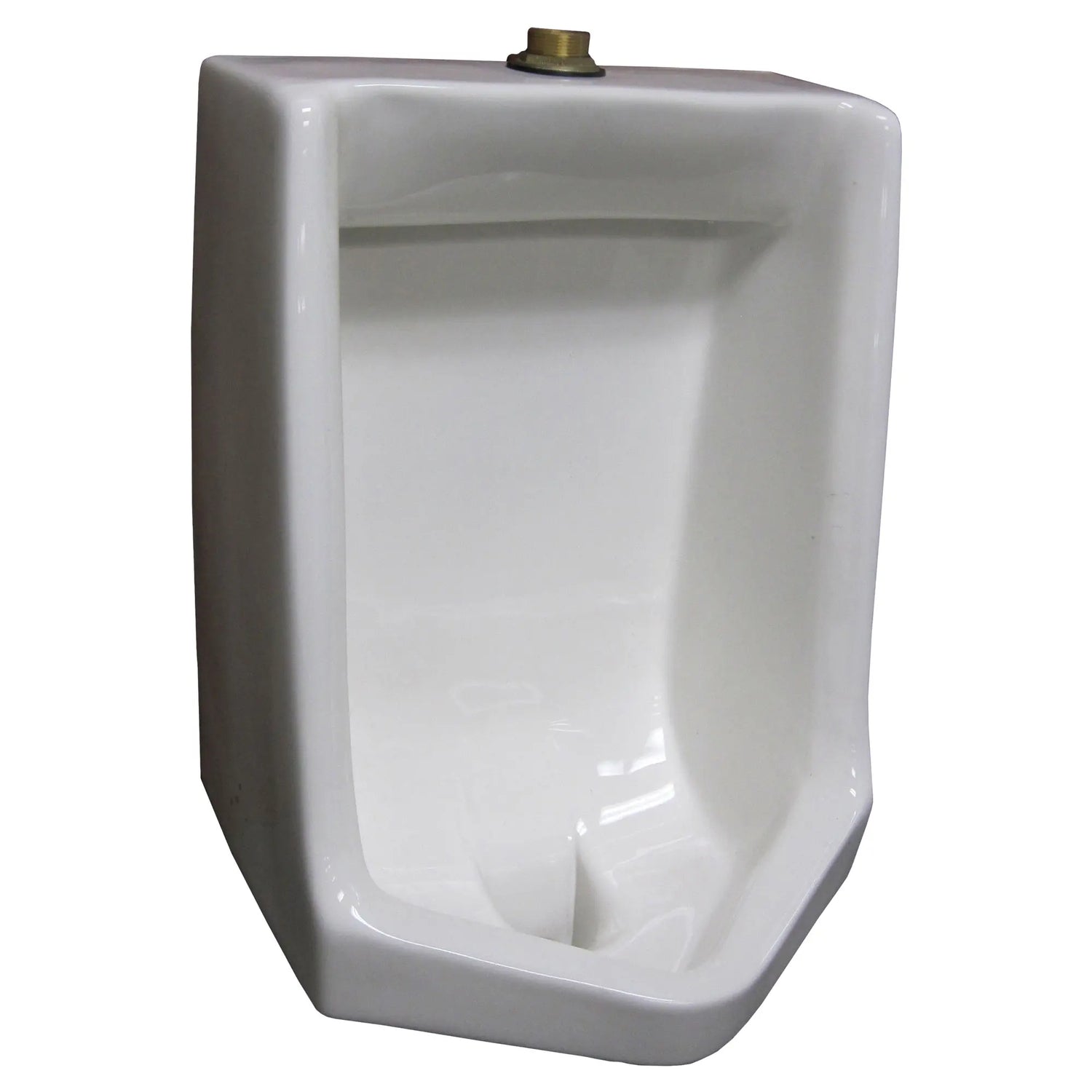

Lynbrook® 1.0 gpf/3.8 Lpf Top Spud Blowout Urinal

This low-consumption urinal uses just 1.0 gallon per flush. Features include a flushing rim and a blowout flush action for effectiveness, plus integral privacy shields. Its practical design makes it ideal for commercial applications that don’t have privacy walls between urinals. Low water usage (1.0 gpf/3.8 Lpf).

Features

• Low water usage (1.0 gpf/3.8 Lpf)
• Flushing rim
• Blowout flush action
• Privacy shields
• 1-1/4" inlet spud
• Outlet connection threaded 2" inside (NPTF)
• 2 wall hangers
• Fixture only
• Meets ANSI flush requirements at 0.7 to 1.0 GPF
• Low consumption (1.0 gpf/3.8 Lpf)
• Flushing rim
• Blowout flush action
• Privacy shields
• 1-1/4" (32 mm) inlet spud
• 2" (51 mm) threaded outlet connection
• Two wall hangers included
• Fixture only

Specifications

• ADA Compliant: Yes
• Barrier Free: Yes
• Brand: American Standard
• Category: Urinals
• Color / Finish: White
• Department of Energy Certified: Yes
• Collections: Lynbrook
• Fixture Material: Vitreous China
• Fixture or Fitting Material: Vitreous China
• Gallons Per Flush (min-max): 1 GPF
• Input Connection Type: NPT (National Pipe Tapered Threads)
• Height: 28-3/4
• Length: 14
• Width: 18-1/2
• Residential or Commercial: Commercial
• Subcategory: Top Spud Urinals
• Warranty: 1 Year Limited Warranty
