KONTOUR PB2 : Pressure Balance Tub and Shower System

The Kalia KONTOUR PB2 is a complete pressure balance tub and shower system with sleek, contemporary lines. The system combines a 1/2'' pressure balance valve with diverter and decorative trim, a 2-jet handshower, a wallbar, a wall outlet, a flexible and soft PVC hose and a tub spout. It delivers steady water temperature across both the tub and shower outlets, and the system meets or exceeds ADA, CSA B125.1 and ASME A112.18.1 standards.

Features

• Valve: push-button diverter with automatic or mechanical reset, no visible screw and solid brass construction
• Valve: male water inlet 1/2NPT, threaded or welded, with shut-off valves included
• Valve: total adjustment of 19 mm (3/4''), can be installed back-to-back, with an included support for better stability during installation
• 2-jet handshower: anti-scale system with soft sprays, 2 direct functions and 1 shared function, male water inlet G1/2
• Wallbar: plastic construction with an easy-to-use gliding system and a locking system
• Wall outlet: solid brass construction, connector adjustable in depth, female water inlet 1/2NPT and male water outlet G1/2
• Hose: 60'' (1524 mm) flexible and soft PVC hose with G1/2 female connection and integrated check valve
• Tub spout: solid brass construction, regular water jet and high water flow, with a 1/2" copper "slip fit" inlet or male water inlet 1/2NPT with 76 mm (3") adjustment

Specifications

• Valve maximum flow rate: 20 liters/min. (5.28 gallons/min.) at 60 psi

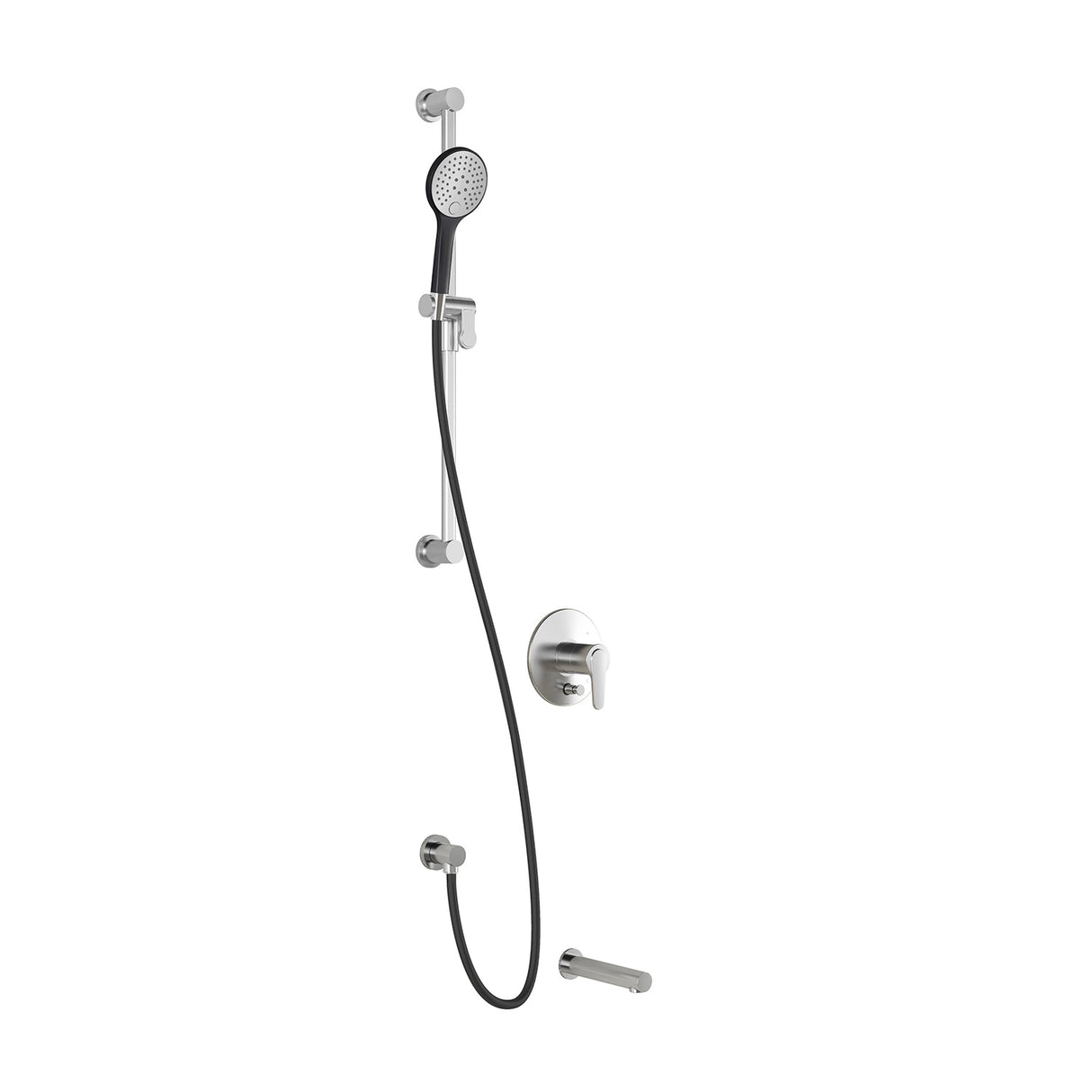

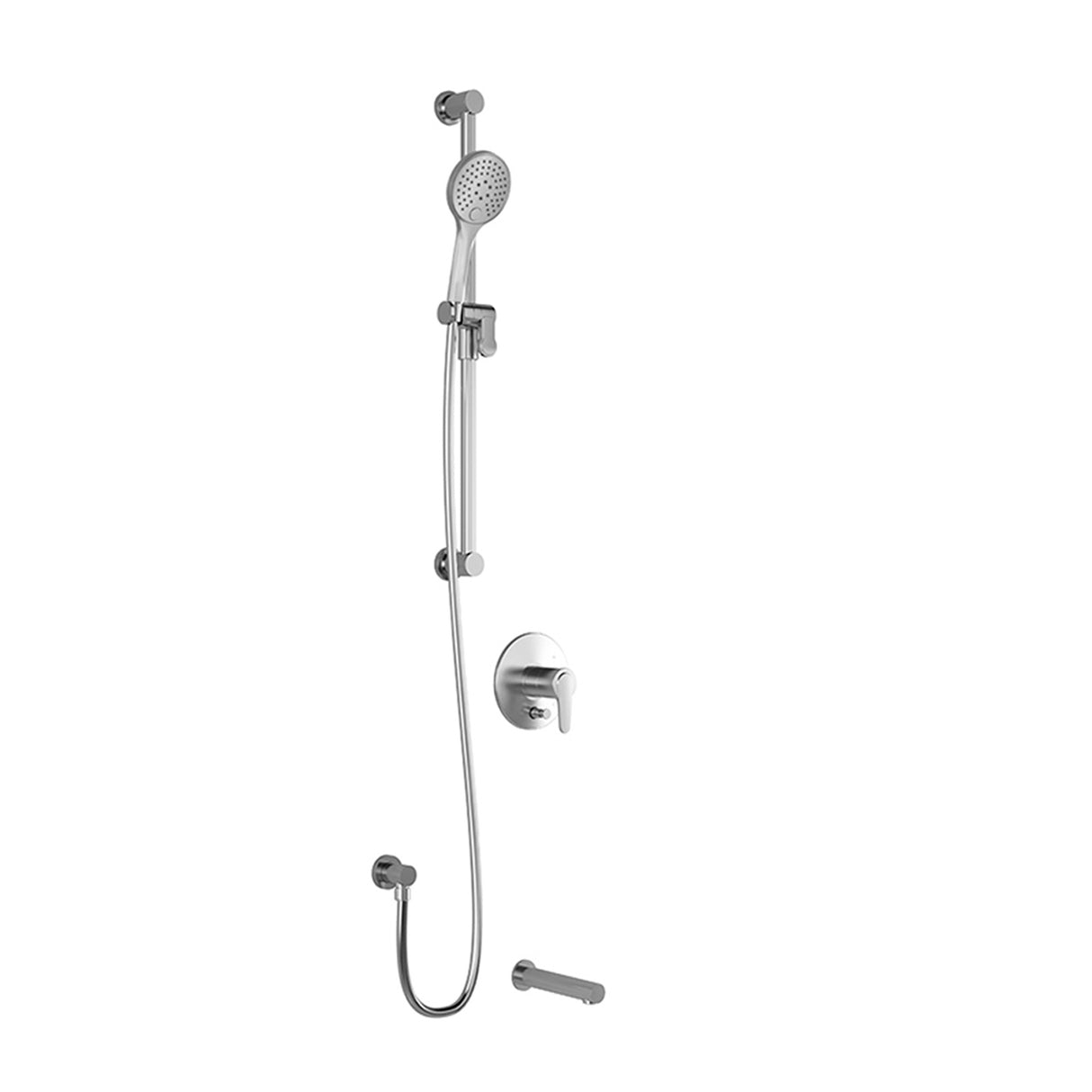

• Available finishes: Chrome (BF1334-110), Black/Chrome (BF1334-150)
• Warranty: Free of defects in material and workmanship for normal residential use; refer to the warranty included with the Kalia products for details
• Note: Dimensions are approximate and subject to change
