GRAFIK TD2 PLUS : AQUATONIK T/P Shower System Vertical Ceiling Arm Chrome

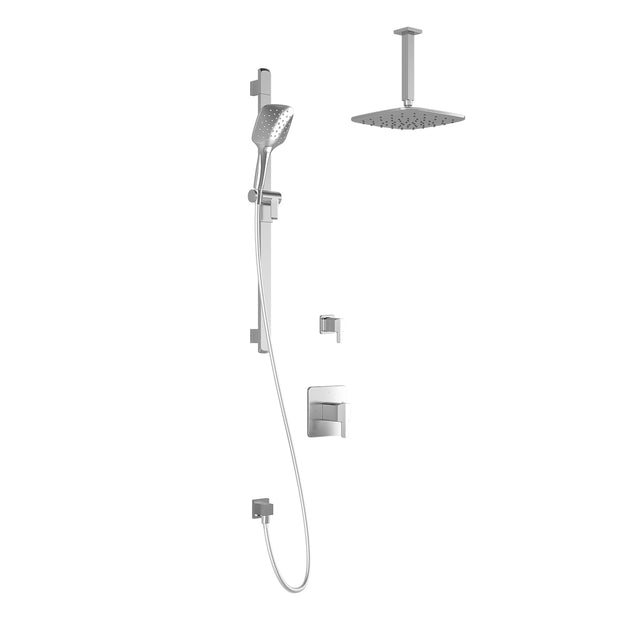

The Kalia GRAFIK TD2 PLUS AQUATONIK T/P shower system with vertical ceiling arm in Chrome is a TD2 thermostatic shower system with a rainhead on a vertical ceiling arm, a 2-jet handshower on a wallbar and a 2-way diverter that operates 1 or 2 components at a time. Components included are also an AQUATONIK type T/P 1/2" valve and decorative trim, a wall outlet and a 60" flexible and soft PVC hose. The system meets or exceeds the ADA, CSA B125.1 and ASME A112.18.1 standards.

Features

• Rainhead: 1/2" male NPT water inlet, anti-scale system with soft sprays and adjustable orientation swivel.
• 2-jet handshower: anti-scale system with soft sprays and G1/2 male water inlet.
• Wallbar: easy-to-use gliding system and locking system.
• AQUATONIK valve: solid brass construction, no visible screw, integrated service stops with check valve, total adjustment of 19 mm (3/4") and can be installed back-to-back.
• 2-way diverter: solid brass construction, no visible screw, total adjustment of 19 mm (3/4") and support for better stability during installation included.
• Wall outlet: 1/2NPT female water inlet, G1/2 male water outlet and connector adjustable in depth.
• Kalia Inc. guarantees all aspects of its products to be free of defects in material and workmanship for normal residential use; refer to the warranty included with the Kalia products for details.
• Installation requirement: the product must be installed following the installation instructions provided.

Specifications

• Finish: Chrome
• Rainhead maximum flow rate: 7.6 L/min (2 gpm) at 80 psi
• Handshower maximum flow rate: 7.6 L/min. (2 gpm) at 80 psi
• AQUATONIK valve maximum flow rate: 30 liters/min. (7.9 gallons/min.) at 60 psi
• Diverter maximum flow rate: 1 outlet: 22 liters/min. (5.8 gallons/min.) at 60 psi; 2 outlets: 24 liters/min. (6.4 gallons/min.) at 60 psi
• Valve and diverter inlets: Male water inlet 1/2NPT, threaded or welded
• Wallbar total height: 775 mm (30 1/2"); dimensions are approximated and subject to changes
