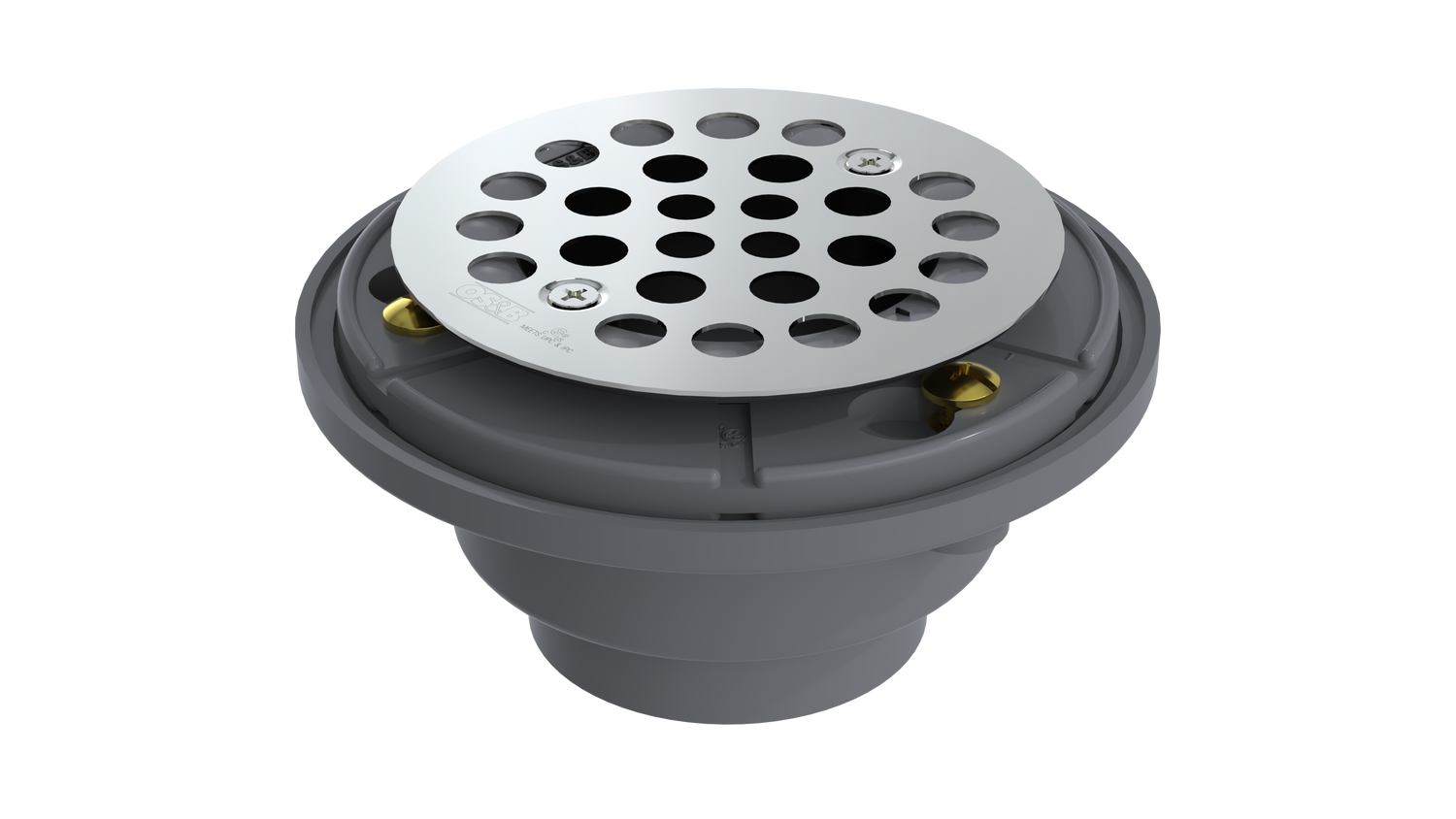

FRZERO FR-PVC Shower Drain with 2" Outlet for use with Tile Bases (SD245-SS)

The OS&B SD245 is an FRZERO FR-PVC fire-rated shower drain with a 2" nominal outlet for use with tile shower bases. This 3-piece, straight discharge drain has a 4-1/4" round screw-in grate and a thread-in round flange. It meets the flame and smoke requirements of CAN/ULC S102.2-10 for non-combustible buildings when approved PVC primer and solvent cement are used to make joints.

Features

• FR PVC body with 2" FR PVC/DWV hub connection
• Reversible clamping collar allows for increased adjustability (2-1/4" max)
• 4-1/4" screw-in stainless steel grate
• Includes a round screw-in grate
• Thread-in round flange; 3-piece flange
• CAN/ULC S102.2 flame spread rating 0 and smoke developed rating 40
• Certified to ASME A112.18.2/CSA-B125.2
• The "cCSAus" mark means the product conforms to the requirements of the NPC, UPC, IPC and IRC

Specifications

• Material: FR-PVC
• Size: 2"
• Outlet: 2" nominal
• Discharge: Straight
• Grate: 4-1/4" round screw-in
• Flange: 3PC, thread-in round
• Certification: ASME A112.18.2/CSA-B125.2; cCSAus meets UPC & IPC
• Fire rating: CAN/ULC S102.2: flame spread rating 0, smoke developed rating 40
• SD245-SS certifications: CCSA US UPC Certification; QAI Certification
• Finish: Stainless Steel
