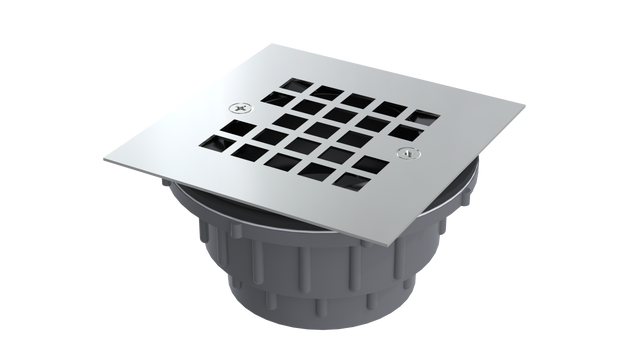

FRZERO FR-PVC Shower Drain with 2" Outlet for use with Molded Bases (SD254-SS)

The OS&B SD254-SS is an FRZERO FR-PVC fire-rated shower drain with a 2" nominal outlet for use with molded shower bases. This 2-piece, straight discharge drain has a 4-3/16" square screw-in grate, which is included. It carries a CAN/ULC S102.2 flame spread rating of 0 and a smoke developed rating of 40.

Features

• FRZERO FR-PVC construction
• 2-piece design with 2" FRZERO FR-PVC outlet
• 4-3/16" square screw-in grate included
• Straight discharge configuration for molded bases
• Certified to ASME A112.18.2/CSA-B125.2
• The "cCSAus" mark means the product conforms to the requirements of the NPC, UPC, IPC and IRC

Specifications

• Material: FR-PVC
• Size: 2"
• Outlet: 2" nominal
• Grate: 4-3/16" square screw-in
• Certification: ASME A112.18.2/CSA-B125.2; cCSAus meets UPC & IPC; QAI Certification
• Fire rating: CAN/ULC S102.2: flame spread rating 0, smoke developed rating 40
• Finish: Stainless Steel
