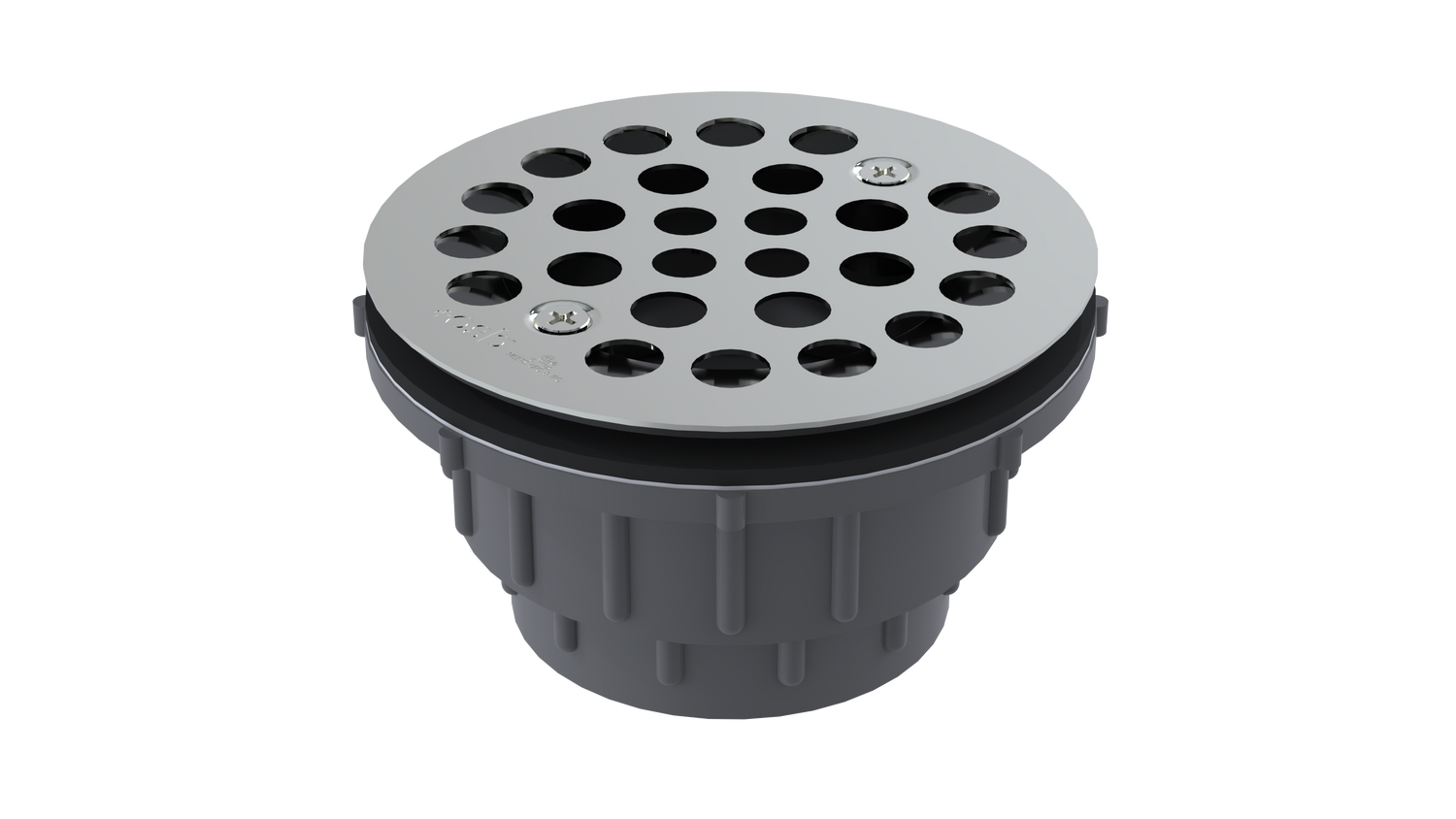

FRZERO FR-PVC Shower Drain with 2" Outlet for use with Molded Bases (SD250-SS)

The OS&B SD250 is an FRZERO FR-PVC fire-rated shower drain with a 2" nominal outlet for use with molded shower bases. It is a 2-piece, straight discharge drain with a 4-1/4" screw-in grate and a thread-in round flange. It meets the flame and smoke requirements of CAN/ULC S102.2-10 for non-combustible buildings when approved PVC primer and solvent cement are used to make joints.

Features

• FR PVC body with 2" FR PVC/DWV hub connection
• Will not support combustion in the presence of an ignition source
• 4-1/4" screw-in stainless steel grate included
• Thread-in round flange
• CAN/ULC S102.2 flame spread rating 0 and smoke developed rating 40
• Certified to ASME A112.18.2/CSA-B125.2
• The "cCSAus" mark means the product conforms to the requirements of the NPC, UPC, IPC and IRC

Specifications

• Material: FR-PVC
• Size: 2"
• Outlet: 2" nominal
• Discharge: Straight
• Construction: 2 piece
• Certification: ASME A112.18.2/CSA-B125.2; cCSAus meets UPC & IPC
• Fire rating: CAN/ULC S102.2: flame spread rating 0, smoke developed rating 40
• SD250-SS certifications: CCSA US UPC Certification; QAI Certification
• Finish: Stainless Steel
