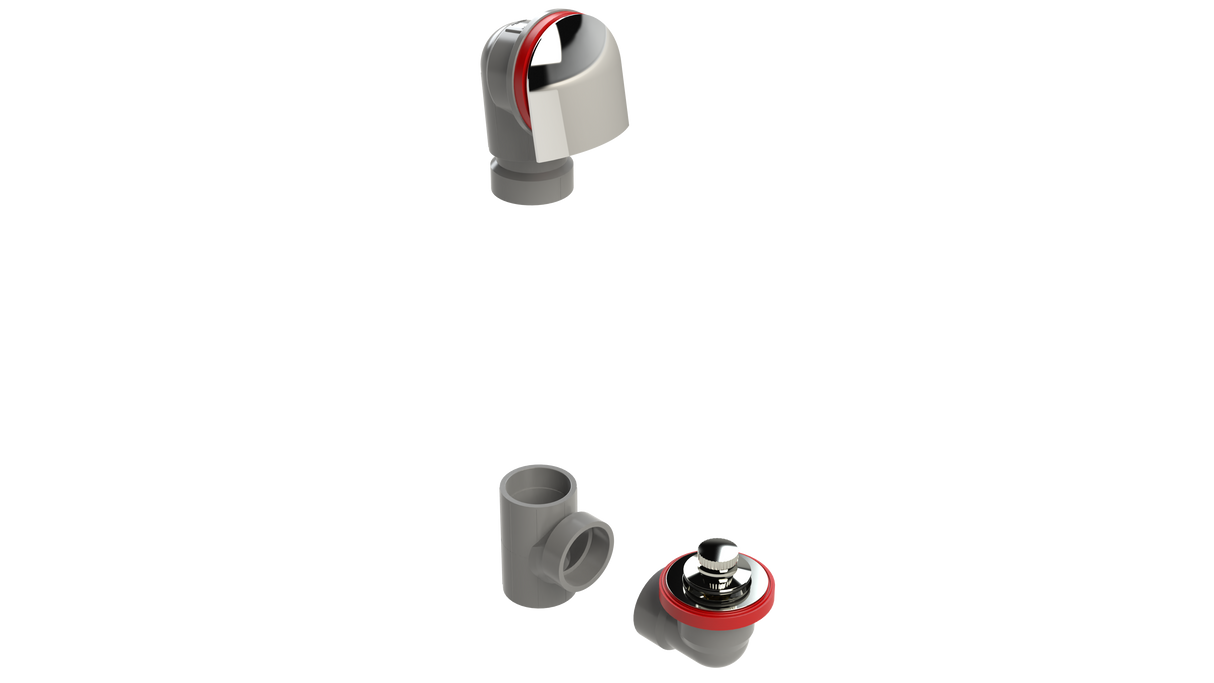

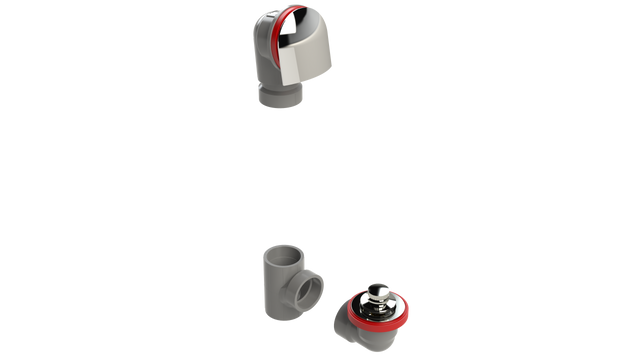

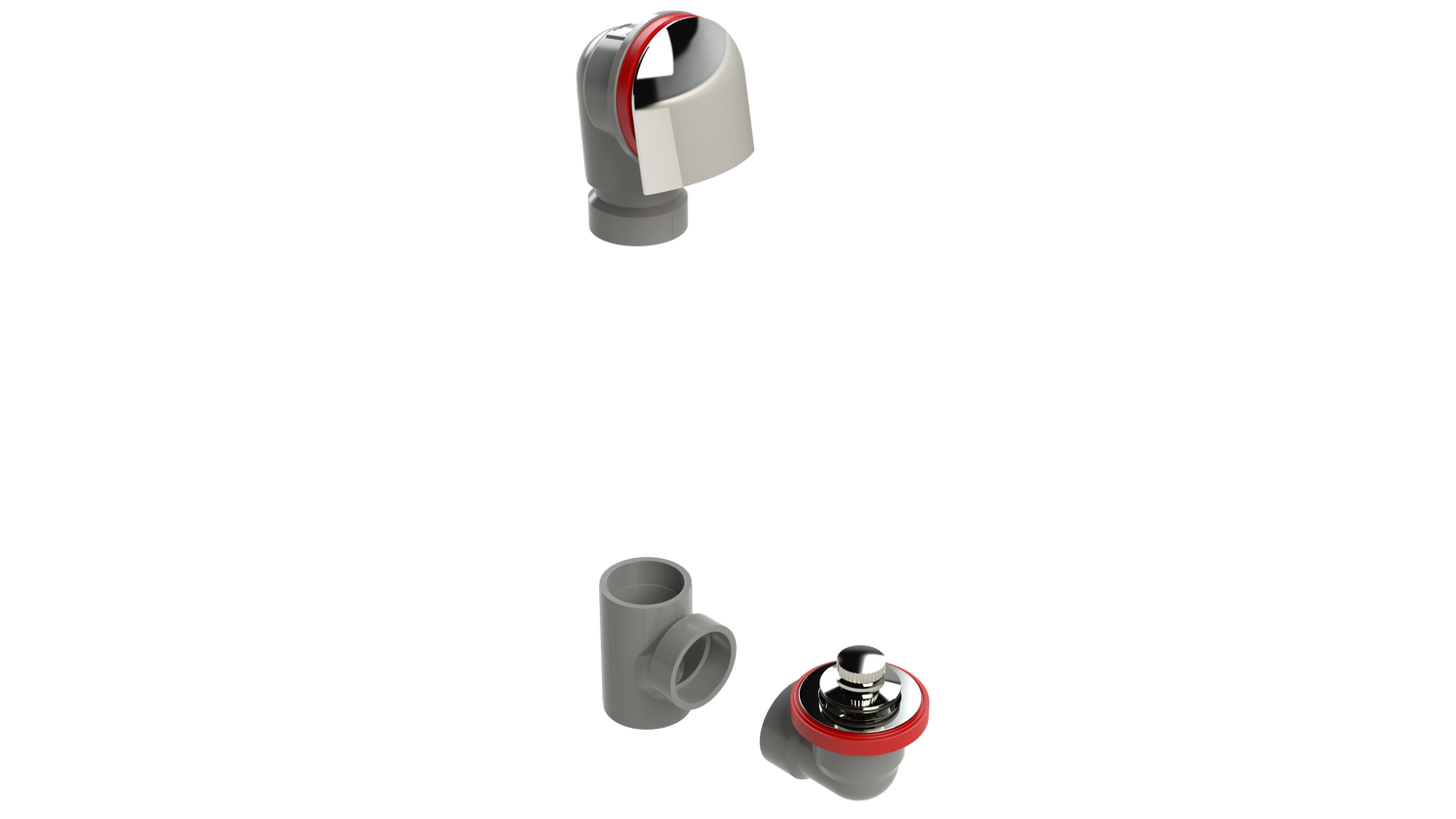

FRZERO FR-PVC Offset Waste & Overflow Zinc Lift & Turn Kit (2550LZK-CP)

The OS&B FRZERO 1-1/2" FR-PVC offset waste & overflow kit with a zinc lift & turn closure features a Bell SlideOn™ faceplate, spin-on tie plate and angle adapter. It has a large strainer with a lift & turn stopper in a chrome plated finish. It meets the flame and smoke requirements of CAN/ULC S102.2-10 for non-combustible buildings (use approved PVC primer and solvent cement to make joints).

Features

• Will not support combustion in the presence of an ignition source
• Bell SlideOn™ faceplate
• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool-less installation
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; use optional
• Self-clinging rubber waste gasket and coarse thread strainer
• Kit comes with tee, less 1-1/2" pipe

Specifications

• Material: FR-PVC
• Closure: Zinc lift & turn
• Finish: Chrome Plated
• Standard: ASME A112.18.2/CSA-B125.2
• CAN/ULC S102.2: Flame Spread Rating 0; Smoke Developed Rating 40
