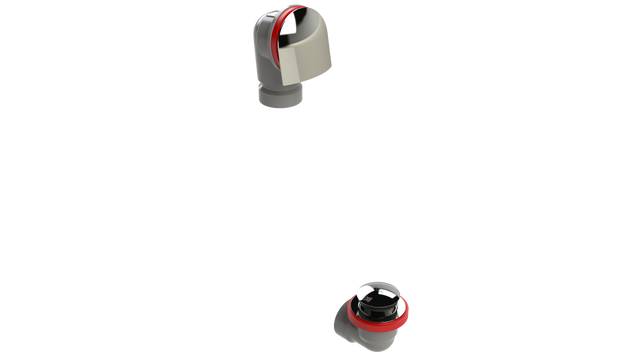

FRZERO FR-PVC Offset Waste & Overflow Tip-Toe Half Kit (2550TIPHK-CP)

The OS&B FRZERO 2550TIPHK-CP is a 1-1/2" FR-PVC offset waste and overflow half kit with a Tip-Toe stopper. It features a Bell SlideOn™ faceplate, spin-on tie plate and angle adapter, with a large strainer. The half kit comes less tee and less 1-1/2" pipe. It meets the flame and smoke requirements of CAN/ULC S102.2-10 for non-combustible buildings; use approved PVC primer and solvent cement to make joints.

Features

• Will not support combustion in the presence of an ignition source
• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool-less installation
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included
• Self-clinging rubber waste gasket
• Coarse thread strainer

Specifications

• Size: 1-1/2"
• Material: FR-PVC
• Kit type: Half kit
• Stopper: Tip-Toe
• Finish: Chrome Plated
• Certifications: CCSA US UPC Certification; QAI Certification
• Standard: ASME A112.18.2/CSA-B125.2
• Fire rating: CAN/ULC S102.2: flame spread rating 0, smoke developed rating 40
• Carton quantity: 20
