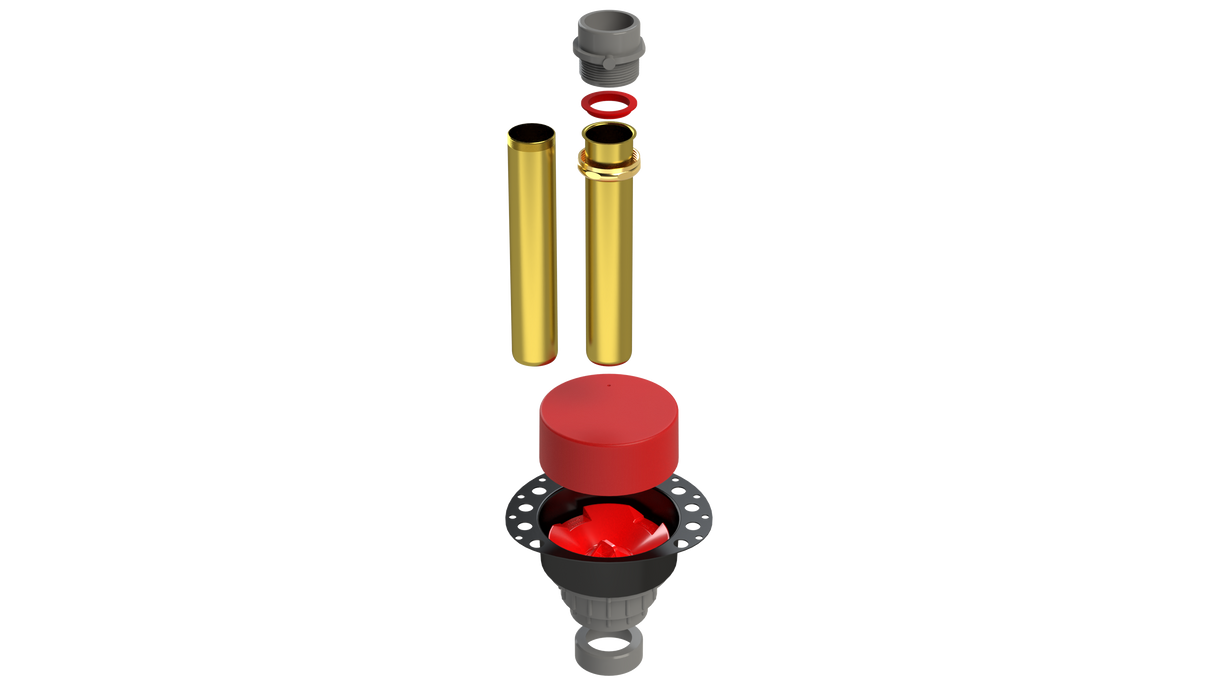

FRZERO FR PVC Island Tub Drain® Testable Rough-in for Freestanding Tubs (ITD25)

The OS&B ITD25 is a two-piece FRZERO FR-PVC testable rough-in Island Tub Drain® for freestanding tubs. It meets the flame and smoke requirements of CAN/ULC S102.2-10 for non-combustible buildings when approved PVC primer and solvent cement are used to make joints. It is a freestanding tub rough-in installed before tile installation, and it allows the tub location to be defined at rough-in.

Features

• Will not support combustion in the presence of an ignition source
• 18 gauge epoxy coated metal deck plate with holes to lock in thinset
• Snap-off test plug allows for water/air/smoke testing (rated to 30psi)
• Asymmetrical deck flange makes installation in tight spaces easier
• Allows the freestanding tub to be installed over finished floor
• Designed to be installed in an 8" (1-1/2" outlet) or 10" (2" outlet recommended) joist space
• Can also be installed in a slab on grade application

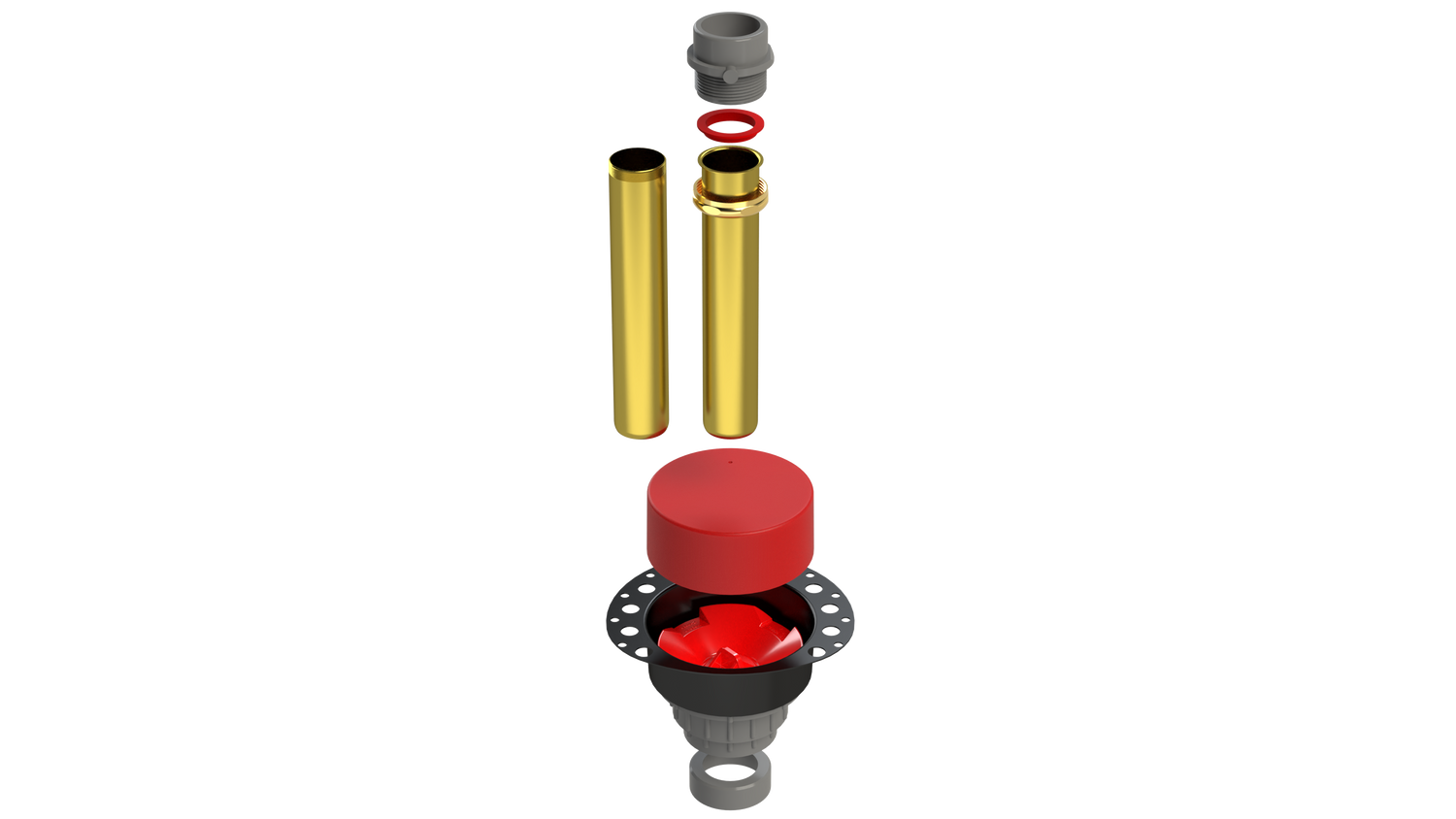

• Components: 2 brass tailpieces (fine thread and flanged), island drain assembly, mortar/tile guard and cutting template
• Island Tub Drain® is patented (Canadian Patent 2,813,010 & US Patent 9,551,138)
• Installation notes: not for use with liquid applied or sheet membranes, and must be installed in a dry area with no potential of water contact

Specifications

• Material: FR-PVC
• Flame and smoke: CAN/ULC S102.2: FSR 0 / SDC 40
• Test plug rating: 30psi
• Deck plate: 18 gauge epoxy coated metal
• Joist space: 8" / 10" with 1-1/2" / 2" P-trap
• Certifications: CCSA US UPC Certification; QAI Certification
