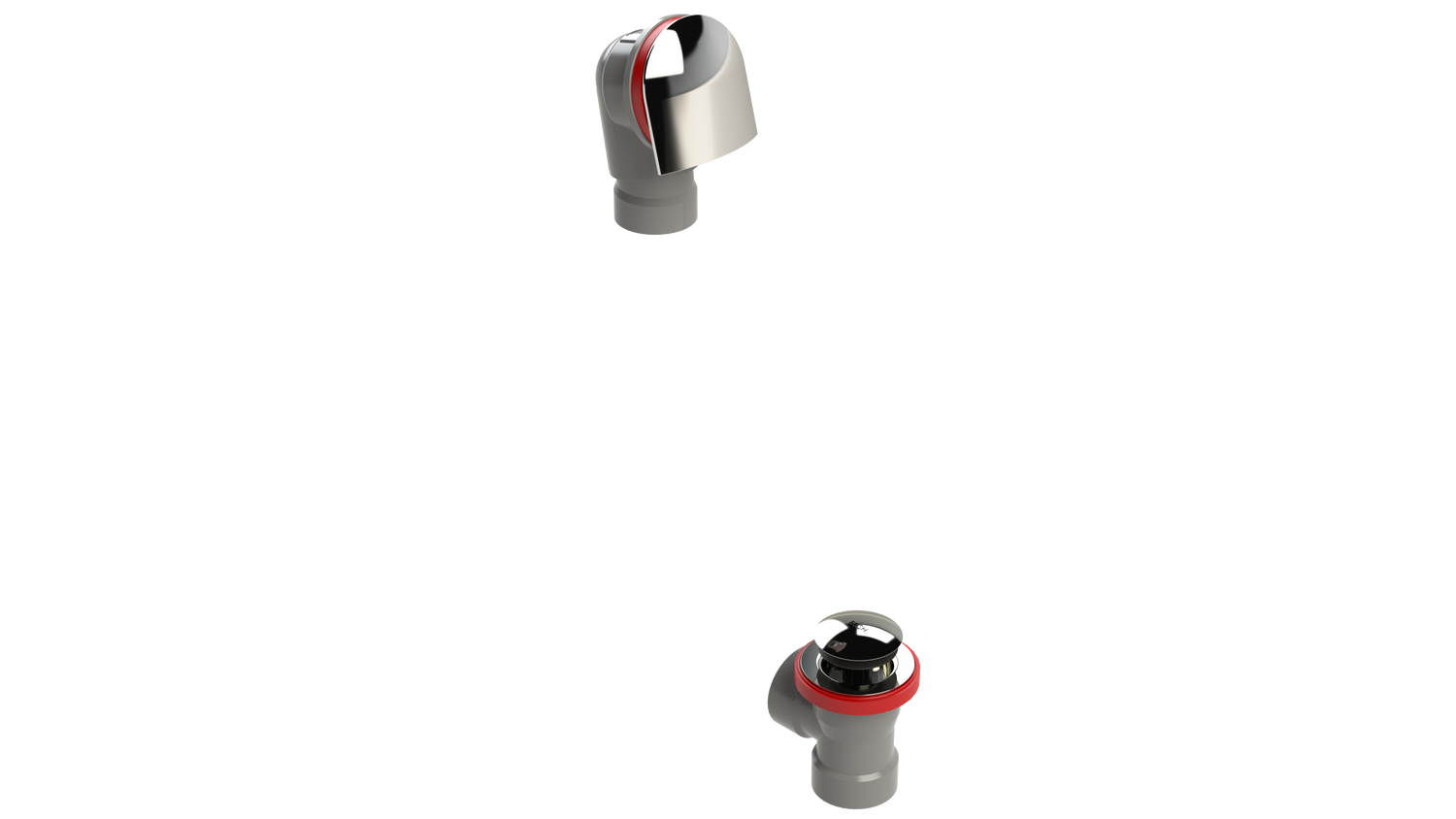

FRZERO FR-PVC Direct Waste & Overflow Tip-Toe Half Kit (25DTIPHK-CP)

The OS&B FRZERO 25DTIPHK-CP is a 1-1/2" fire-rated PVC (FR-PVC) direct waste and overflow half kit with a Tip-Toe stopper and a large strainer. It features a Bell SlideOn™ faceplate, a spin-on tie plate and an angle adapter. The half kit comes less the elbow and less the 1-1/2" pipe.

Features

• Meets the flame and smoke requirements of CAN/ULC S102.2-10 for non-combustible buildings; as an installation requirement, joints are made with approved PVC primer and solvent cement.
• Will not support combustion in the presence of an ignition source.
• Bell SlideOn™ faceplate.
• Thick foam overflow gasket with an adhesive back.
• Spin-on tie plate for a tool-less installation.
• Overflow head with an integrated 6 degree angle.
• Overflow head with aggressive threads for a quicker and easier installation.
• Angle adapter included; its use is optional.
• Self-clinging rubber waste gasket and coarse thread strainer.

Specifications

• Size: 1-1/2"
• Material: FR-PVC
• Finish: Chrome Plated
• Configuration: Half kit (less elbow, less 1-1/2" pipe)
• Closure: Tip-Toe stopper
• Standards: ASME A112.18.2/CSA-B125.2
• CAN/ULC S102.2 flame spread rating: 0
• CAN/ULC S102.2 smoke developed rating: 40
• Certification: QAI Certification
