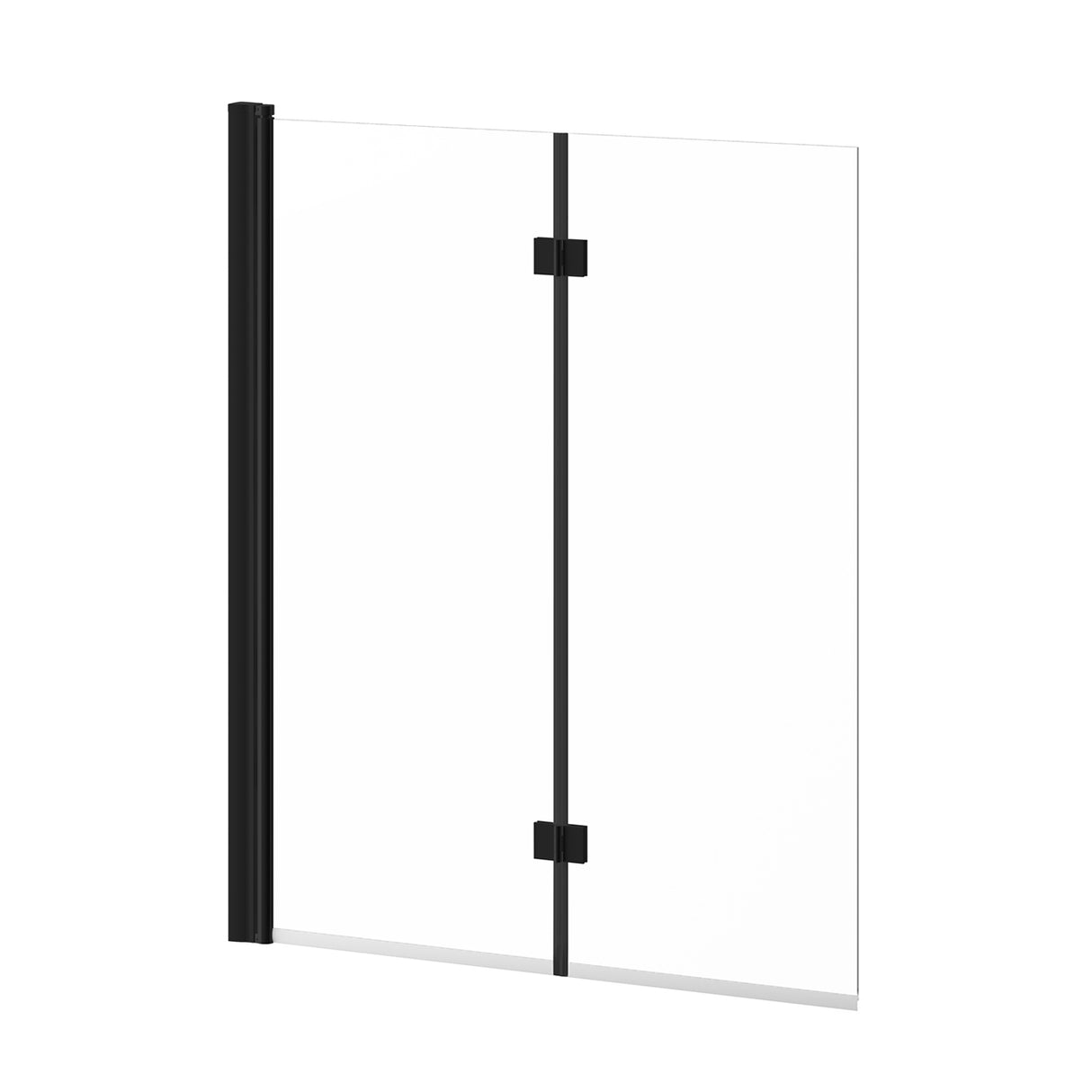

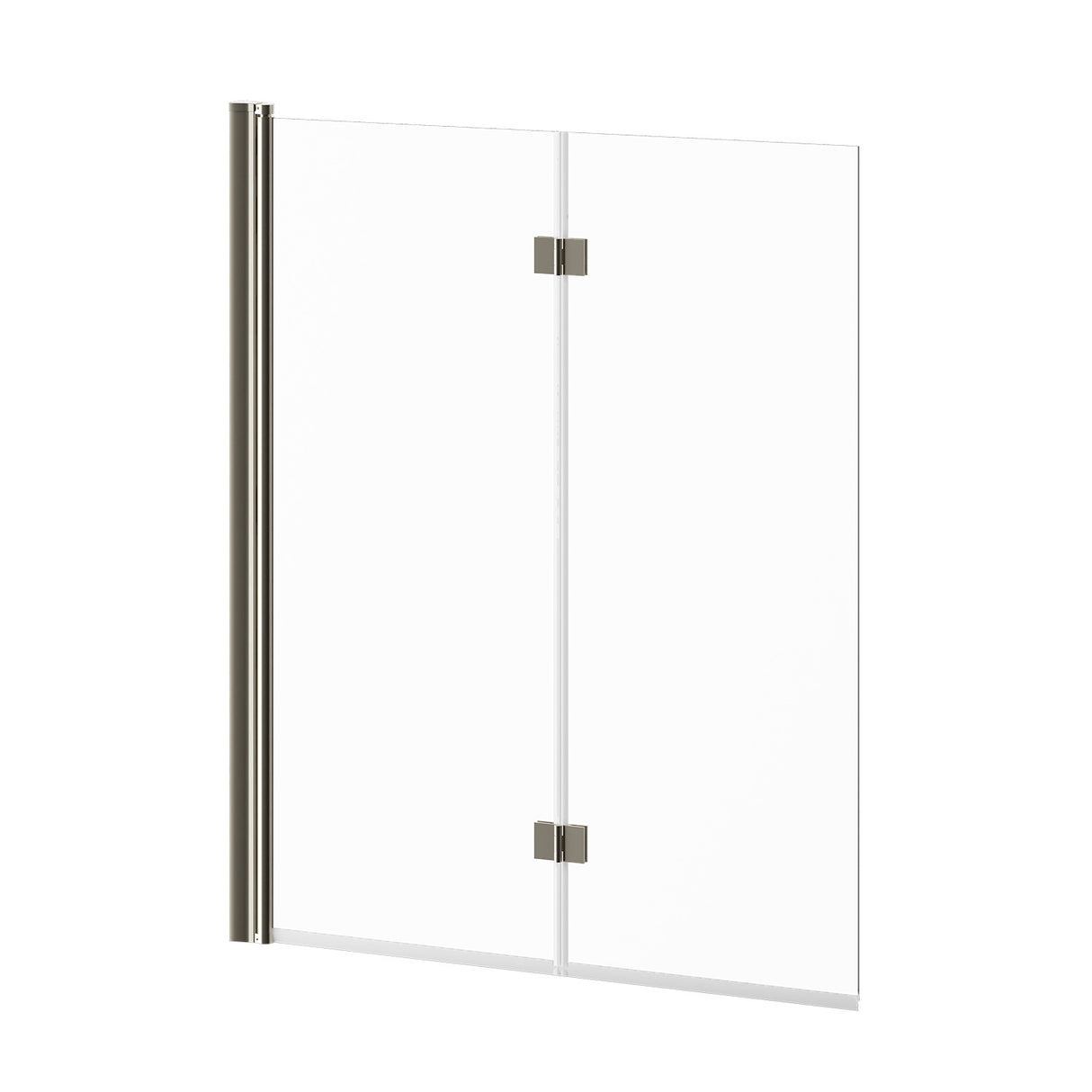

FLIP 90 - 2-panel Frameless Pivot Bath shield 46 inches' x 56 inches Clear Glass

The Kalia FLIP 90 is a reversible 2-panel frameless pivot bath shield with clear glass, in a nominal 46'' x 56'' size. It combines a pivoting glass panel with a square-corner folding glass panel; the panels are tempered glass that must not be cut or drilled. The hardware is available in Chrome, BRUSHED NICKEL or Matte Black.

Features

• Reversible: installs as a left- or right-opening bath shield
• Pivoting panel kit with factory installed parts
• Hinge kit with exterior and interior hinges, PVC protective pads and stainless steel hinge screws
• PVC vertical flexible hinge seal, PVC vertical pivot seal and long and short PVC bottom seals
• Provided tools: 2.5 mm and 4 mm Allen keys
• Installation requirement: a shower base threshold minimum of 43 mm (1 11/16 in)
• Must be installed perfectly levelled on a bathtub and walls that are also perfectly levelled
• The wall structure must be built to support the door weight; as required and if possible, install 2”x 4” wall studs behind the door wall jambs or use anchors appropriate for the wall covering type
• Tools and materials needed for installation: electric drill, screwdriver, pencil, measuring tape, 6 mm (1/4”) drill bit, level, utility knife and clear silicone caulking

Specifications

• Brand: Kalia
• Collection: FLIP 90
• Model: DR1450
• Product type: 2-panel frameless pivot bath shield
• Nominal size: 46'' x 56''
• Door adjustment: 1142 mm to 1168 mm (45’’ to 46’’)
• Pivoting panel: 550 mm x 1379 mm x 6 mm glass
• Folding panel: Square-corner, 524 mm x 1379 mm x 6 mm glass
• Glass: Clear tempered glass
• Minimum threshold: 43 mm (1 11/16 in)
• Available finishes: Chrome, BRUSHED NICKEL, Matte Black
