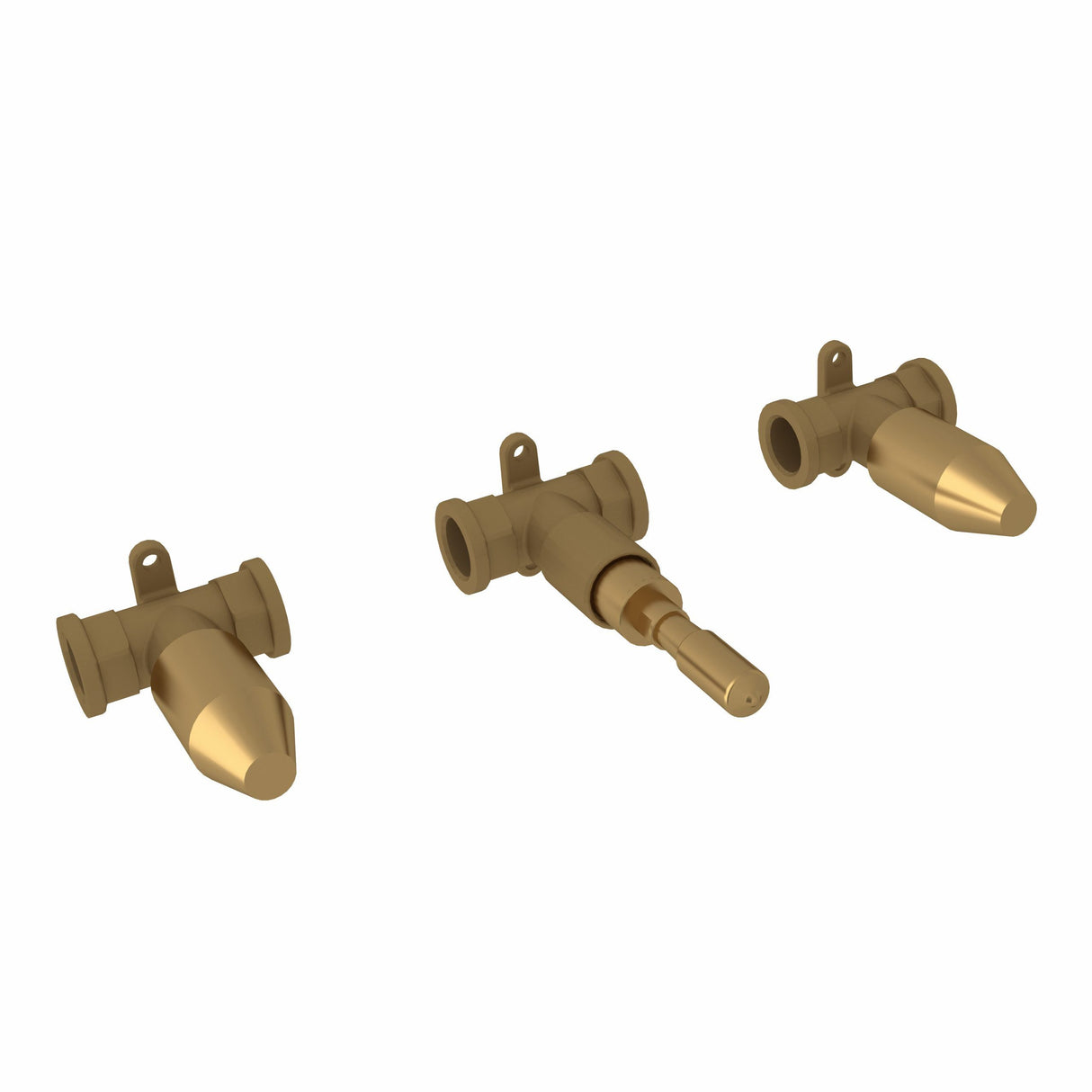

Eclissi™ Wall Mount Rough-in Valve 300073rhl00

The ROHL Eclissi wall mount rough-in valve 300073RHL00 is the rough manifold for the Eclissi EC08W3 and EC09W3 wall mount lavatory faucets. It is the concealed valve body that sits inside the wall; paired with the matching Eclissi trim, it completes a working fixture. This is a rough-only part in raw brass, so the EC08W3 or EC09W3 trim must be ordered to finish the faucet.

Features

• One-piece rough valve with 1/2” female NPT inlets.
• Spout connection uses a special fitting.
• Rough only: finished trim EC08W3 or EC09W3 must be ordered to complete the fixture.
• Flow rate of 1.2 gpm/ 4.6 L/min.
• Recommended supply pressure of Min. 8 psi - Max. 72 psi.
• Temperature range of 70°C or 158°F.
• Backed by a Limited Lifetime warranty.
• Supply lines should be flushed thoroughly during installation.

Specifications

• Model: 300073RHL00
• Core model number: 300073RHL
• Product name: Wall Rough Valve
• Brand: ROHL
• Collection: Eclissi
• Finish: Raw brass only
• Inlets: 1/2” female NPT
• Flow rate: 1.2 gpm/ 4.6 L/min
• Recommended pressure: Min. 8 psi - Max. 72 psi.
• Temperature range: 70°C or 158°F
• Required trim: EC08W3 or EC09W3
• Warranty: Limited Lifetime
