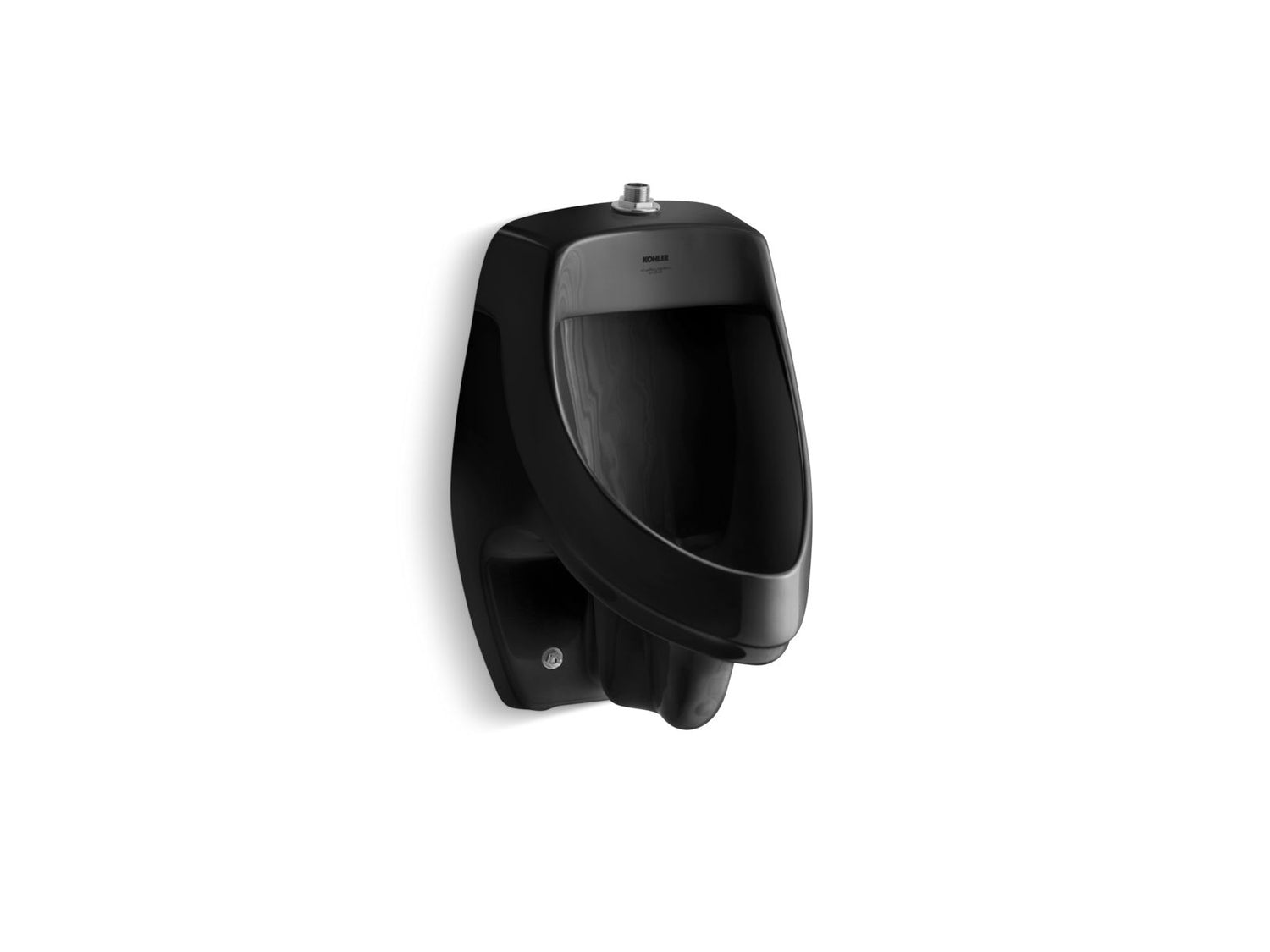

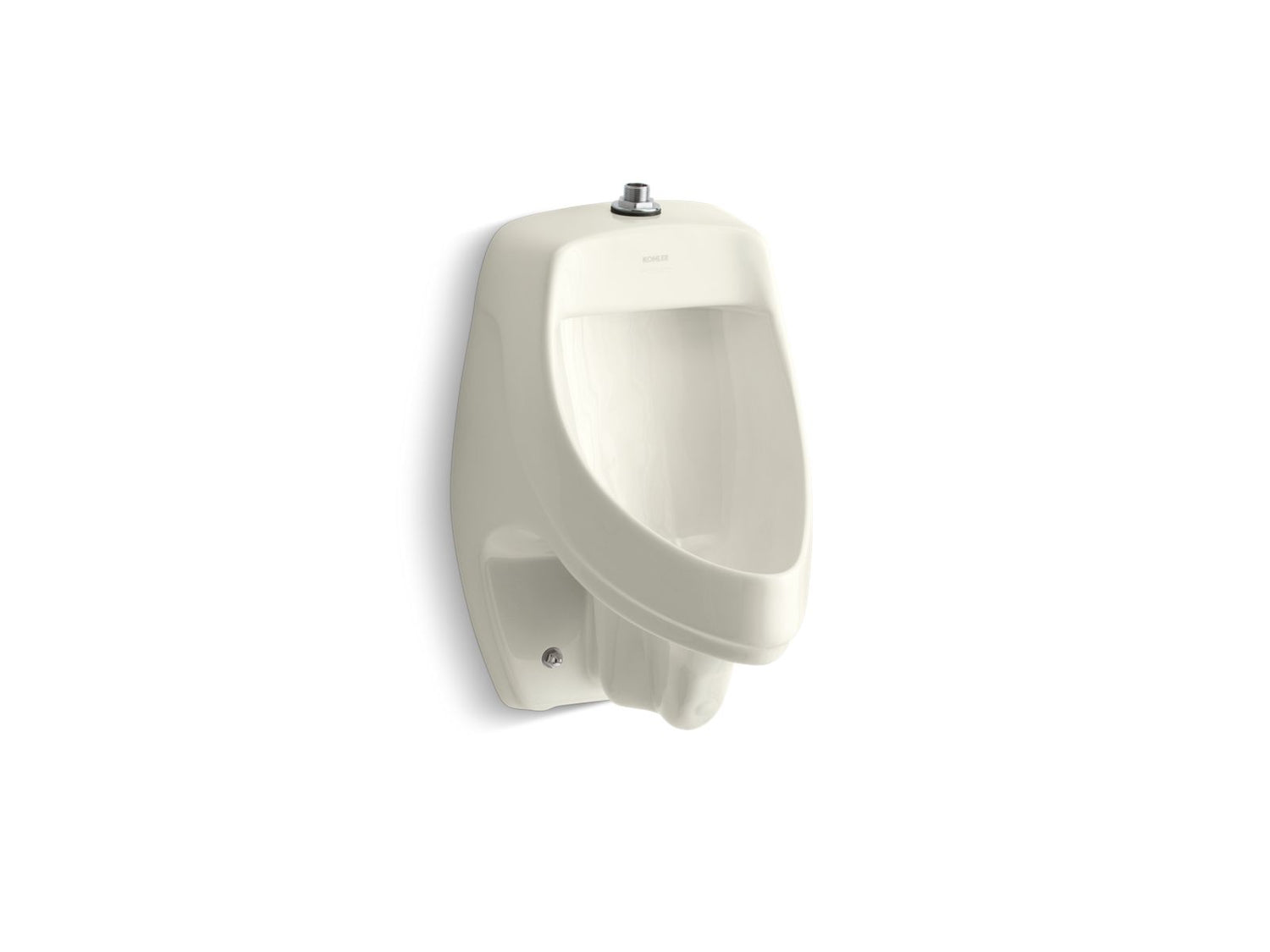

Dexter™ Siphon-jet wall-mount 0.5 or 1.0 gpf urinal with top spud

The KOHLER Dexter siphon-jet wall-mount urinal with top spud uses 0.5 or 1.0 gpf based on the valve selected. Its compact size is ideal for smaller public restrooms, and the back-wall geometry limits splashback for a cleaner user experience. This vitreous china model features a 3/4" top spud and includes inlet and outlet spuds, hangers and an anti-backsplash wall.

Features

• Siphon jet
• 3/4" (19 mm) top spud
• 0.5 or 1.0 gpf based on valve selected; designed for this water use when installed with a water-saving flushometer
• Includes inlet and outlet spuds and hangers
• Includes anti-backsplash wall
• 14-1/2" (368 mm) extended rim
• EPA WaterSense; should be used with a WaterSense labeled counterpart with the same rated flush volume to ensure the complete system meets the requirements for water efficiency and performance
• ADA compliant when installed to the specific requirements of these regulations

Specifications

• Collection: Dexter
• Inlet spud: 3/4", top
• Outlet spud: 2"
• Trapway type: Exposed
• Material: Vitreous china
• Available finishes: White, Black Black, Biscuit
• Codes/standards: ASME A112.19.2/CSA B45.1; DOE - Energy Policy Act 1992; EPA WaterSense; ADA; ICC/ANSI A117.1
• Warranty: KOHLER One-Year Limited Warranty
• Note: Product dimensions are nominal and may vary per ASME A112.19.2 tolerances
