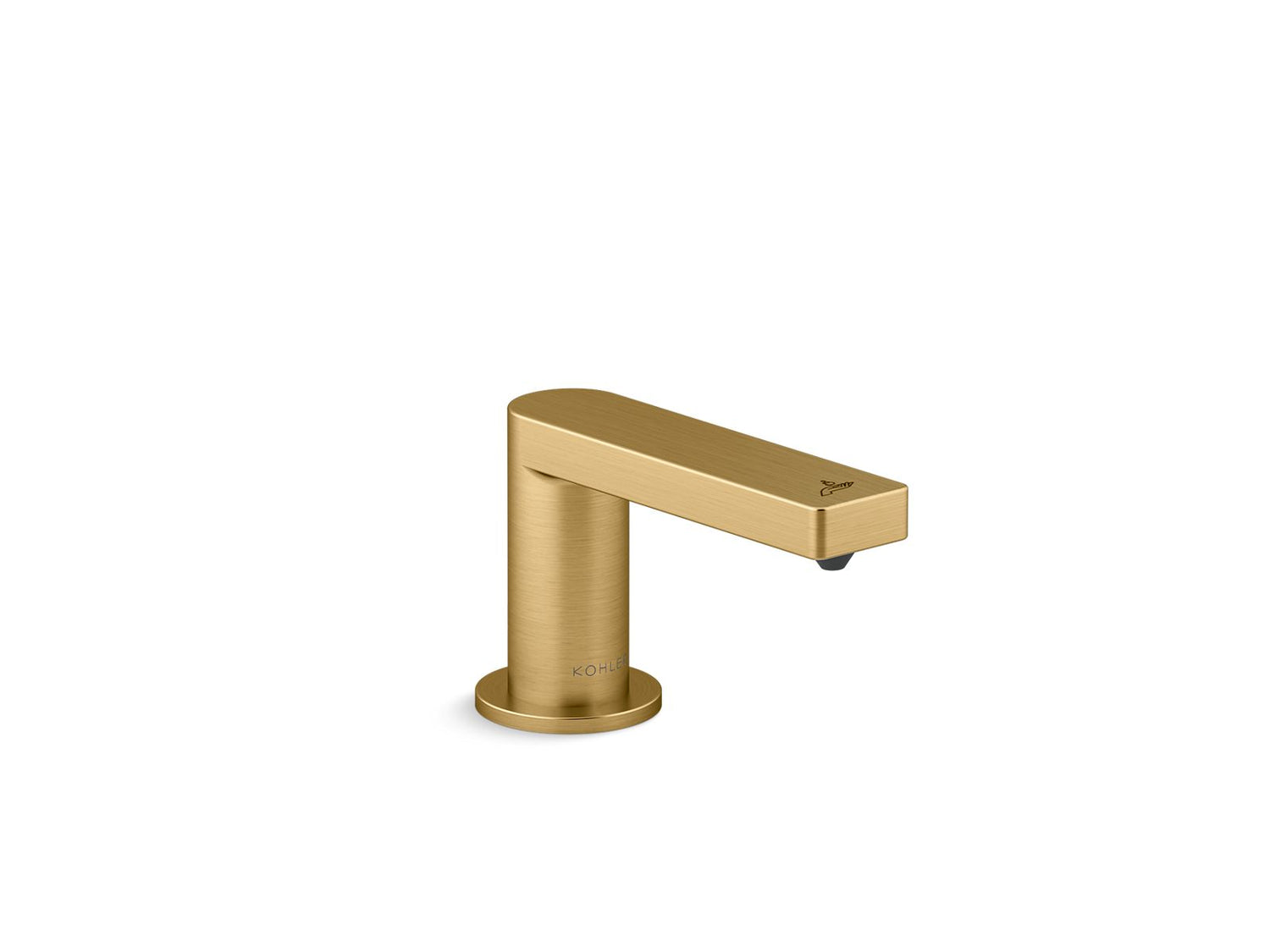

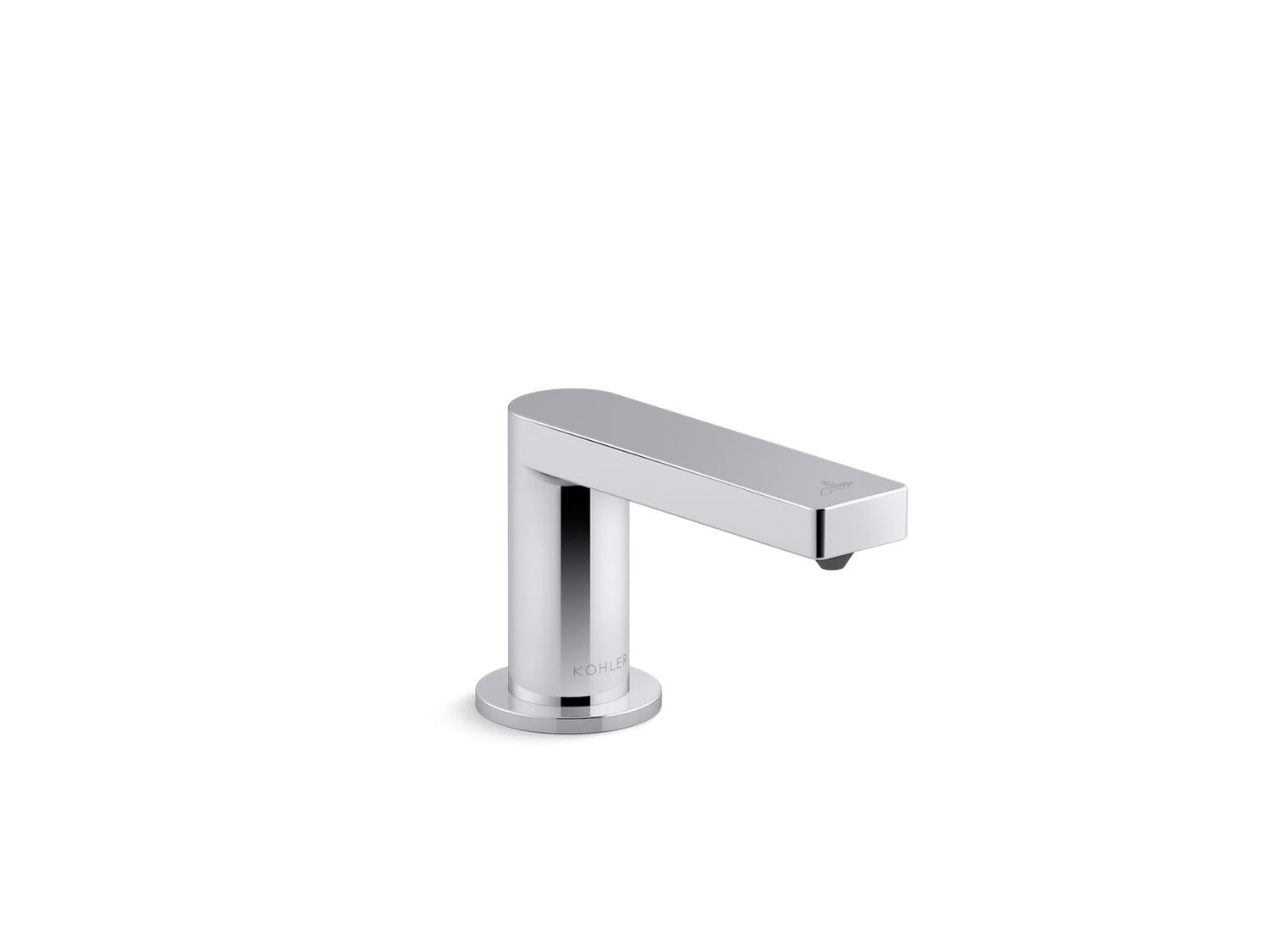

Composed® Touchless foaming soap dispenser, DC-powered

This Composed® 54-ounce high-capacity touchless foaming soap dispenser is ready to tackle high-traffic applications. With solid-brass construction, this battery-operated dispenser is equipped with above-the-counter lights to let you know when soap or battery life is low, and a vandal-resistant sensor to prevent soap waste.

Features

• Soap dispensing volume can be adjusted to 0.8 mL, 1.2 mL, 1.6 mL, or 2.0 mL
• 54 oz (1600 mL) high-capacity soap reservoir
• Optional 27 oz. (800 ml) low-capacity soap reservoir (sold separately)
• Sensor range adjustable from 1" to 4" (25 to 101 mm). Default set at approximately 2-3/4" (69 mm)
• Maintenance/cleaning mode is activated for 30 seconds when sensor is blocked for 10 seconds
• Vandal-resistant sensor delays dispensing for twenty seconds if activated 4 times in under 5 seconds
• Low soap and low battery above-the-counter indicators
• Easy below-the-counter refill
• Battery-operated (4 "D" batteries supplied)
• Requires low (1-20 cps or gr/m-s) viscosity foam soap with no suspended particles. Please see Installation Guide or Maintenance and Use Guide for specific soap recommendations
• KOHLER® soap (sold separately) recommended for optimized performance and longevity

Specifications

• Dimensions: 18.72 x 11.885 x 5.075 in
• Weight: 2 lb
• UPC: 195711032928

Installation

• Optional deep rough-in mounting hardware kit for counters greater than 2" (50 mm) thick and less than 4-1/2" (114.3 mm) thick sold separately
