CIT PB2 : Pressure Balance Tub and Shower System

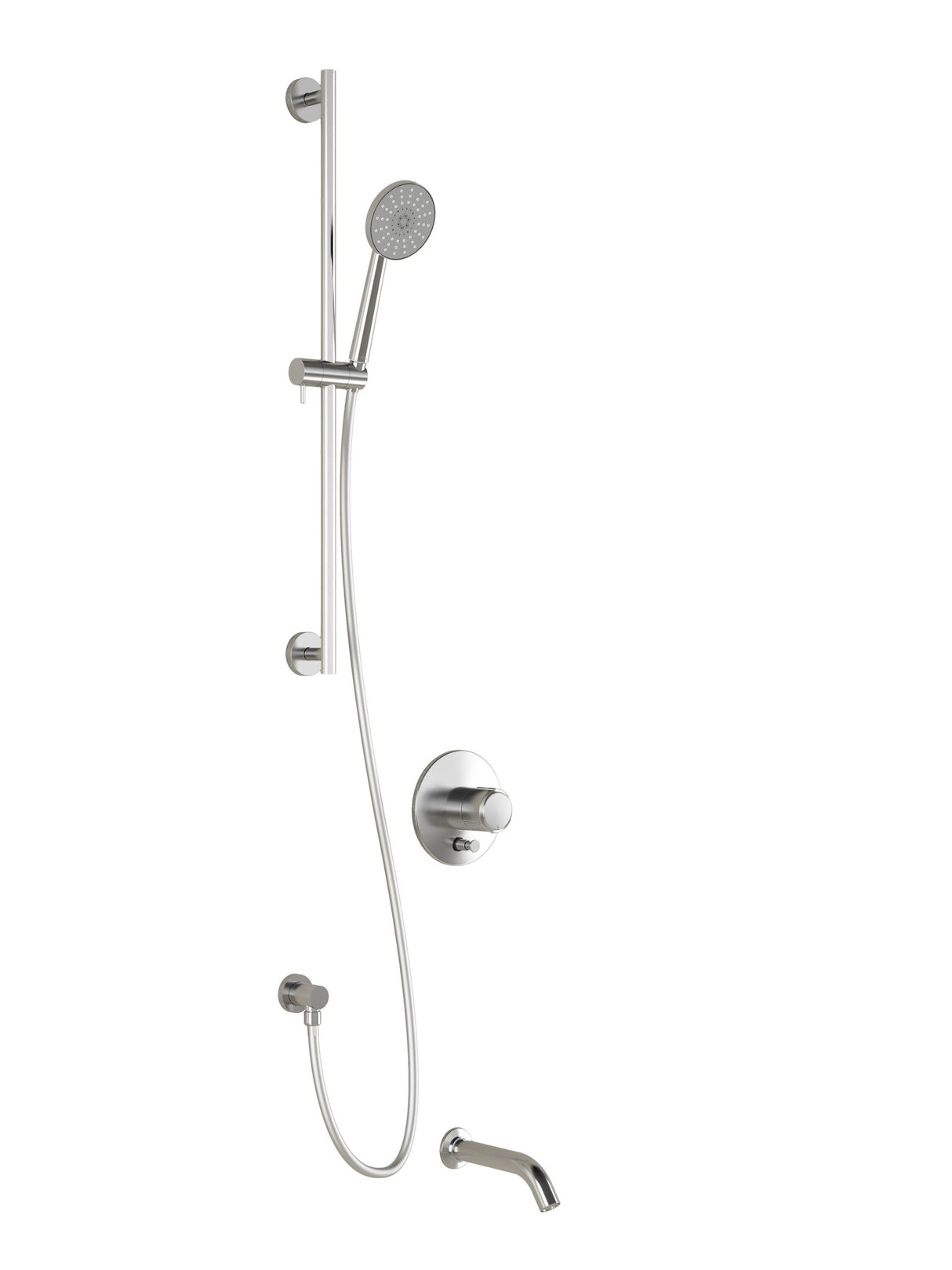

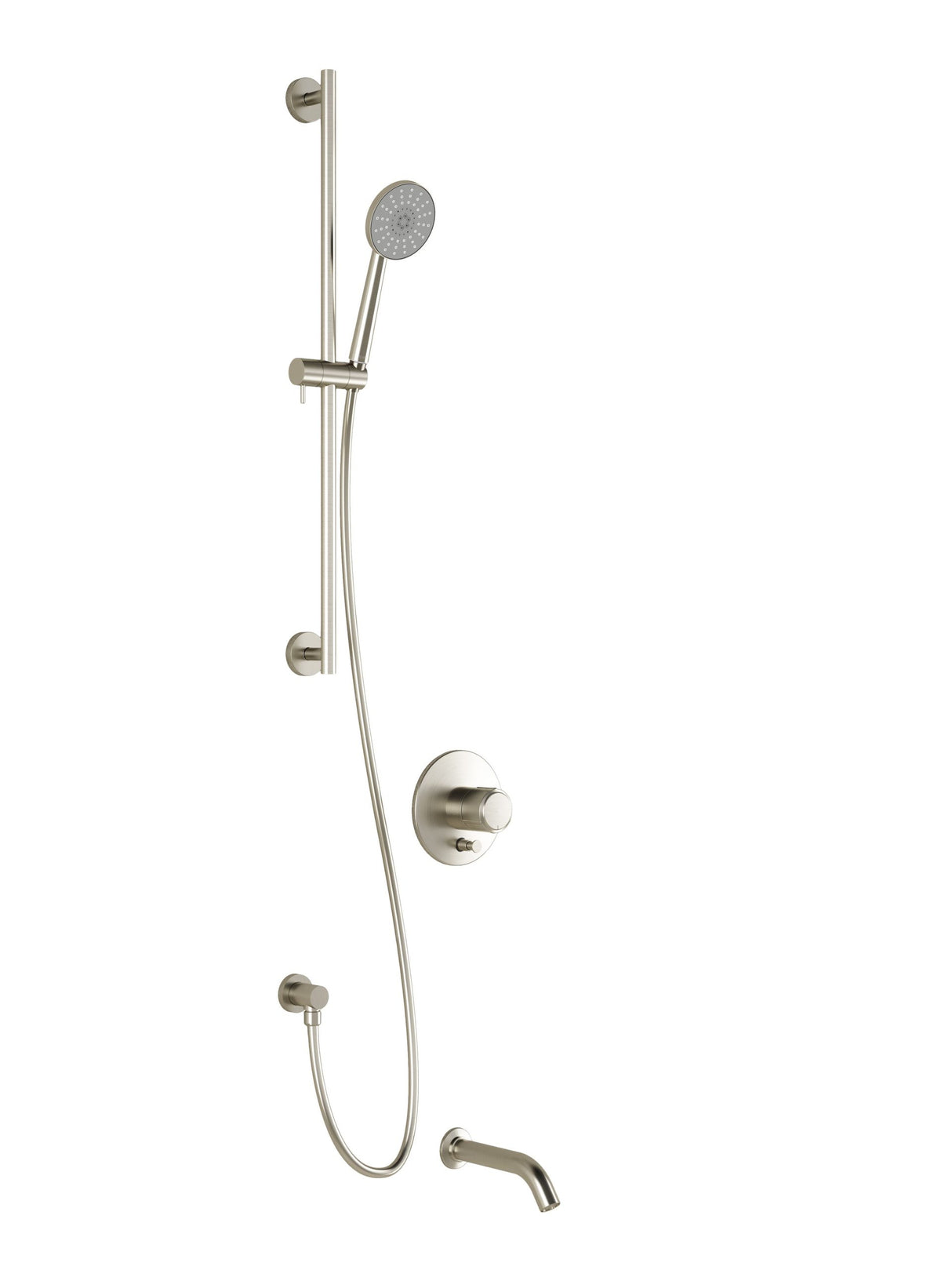

The Kalia CITÉ™ PB2 is a complete pressure balance tub and shower system offered in Chrome and Brushed Nickel. It combines coordinated tub and shower controls in one kit and delivers steady water temperature across both outlets. The Chrome version includes a 1/2’’ pressure balance valve with diverter and decorative trim, a 3-jet handshower, a wallbar, a wall outlet, a 60’’ flexible and soft PVC hose and a tub spout.

Features

• Chrome version valve: solid brass construction, push-button diverter with automatic or mechanical reset, no visible screw, male water inlet 1/2NPT threaded or welded, can be installed back-to-back, total adjustment of 19 mm (3/4”), shut-off valves and optional lever included
• Chrome version 3-jet handshower: diameter of 100 mm (4’’), anti-scale system with soft sprays, water G1/2 male inlet, 3 direct positions and 2 shared positions
• Chrome version wallbar: total height of 762mm (30’’) with a 1/4 turn locking system
• Chrome version wall outlet: solid brass construction, connector adjustable in depth, female water inlet 1/2NPT and male water outlet G1/2
• Chrome version hose: 60’’ (1524 mm) flexible and soft PVC hose with G1/2 female connection and integrated check valve
• Chrome version tub spout: solid brass construction, hidden water jet, high water flow and water 1/2’’ female inlet NPT
• Installation requirement: this product must be installed following the installation instructions provided.
• Kalia Inc. guarantees all aspects of its products to be free of defects in material and workmanship for normal residential use; refer to the warranty included with the Kalia products for details.

Specifications

• Collection: CITÉ™
• Available finishes: Chrome, Brushed Nickel
• Valve maximum flow rate (Chrome version): 20 L/min (5.28 gpm) at 60 psi
• Handshower maximum flow rate (Chrome version): 7.6 L/min (2 gpm) at 80 psi
• Standards (Chrome version): ADA, CSA B125.1, ASME A112.18.1
• Note: Dimensions are approximate and subject to change
