CIT PB1 : Pressure Balance Shower System

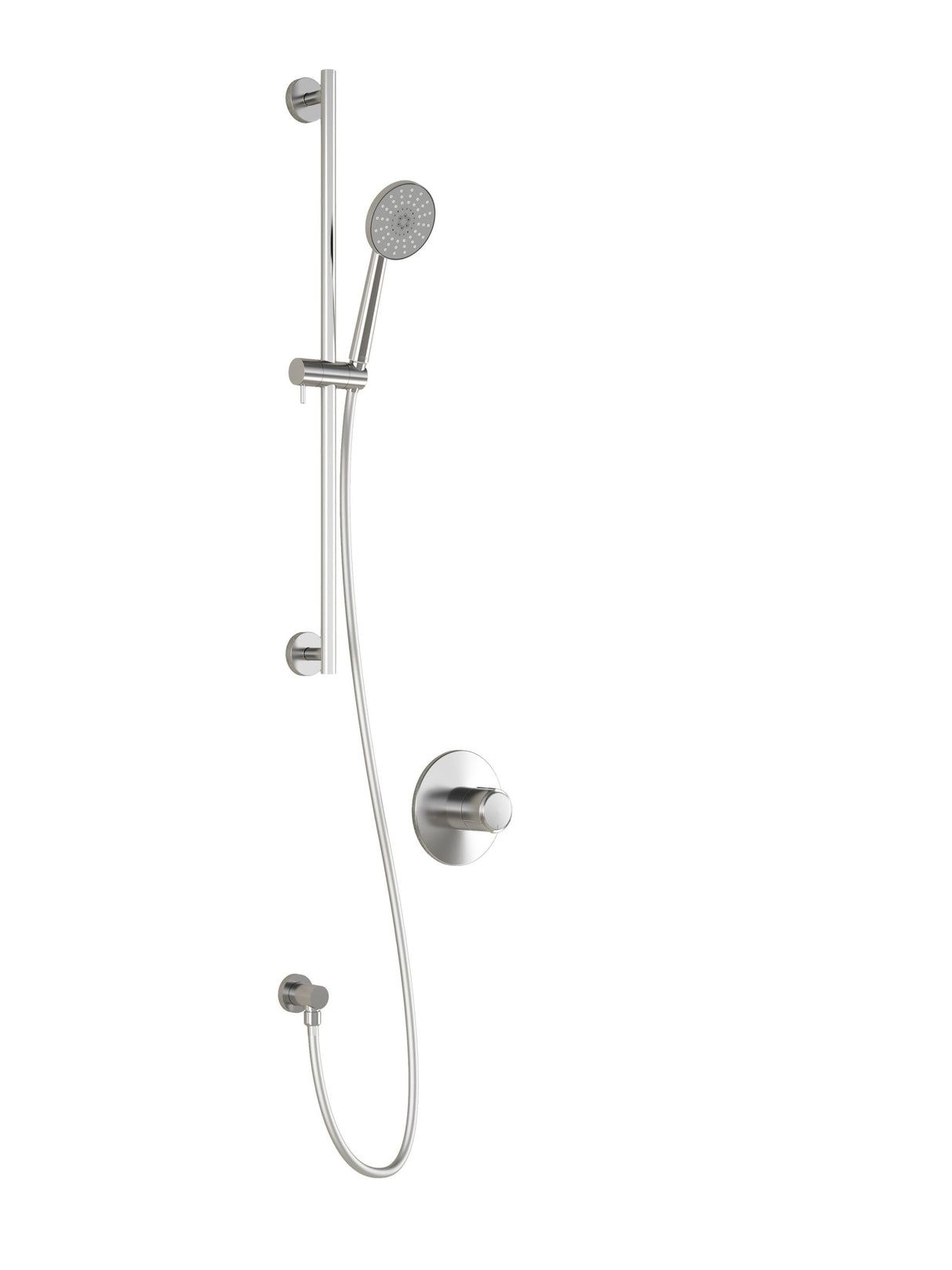

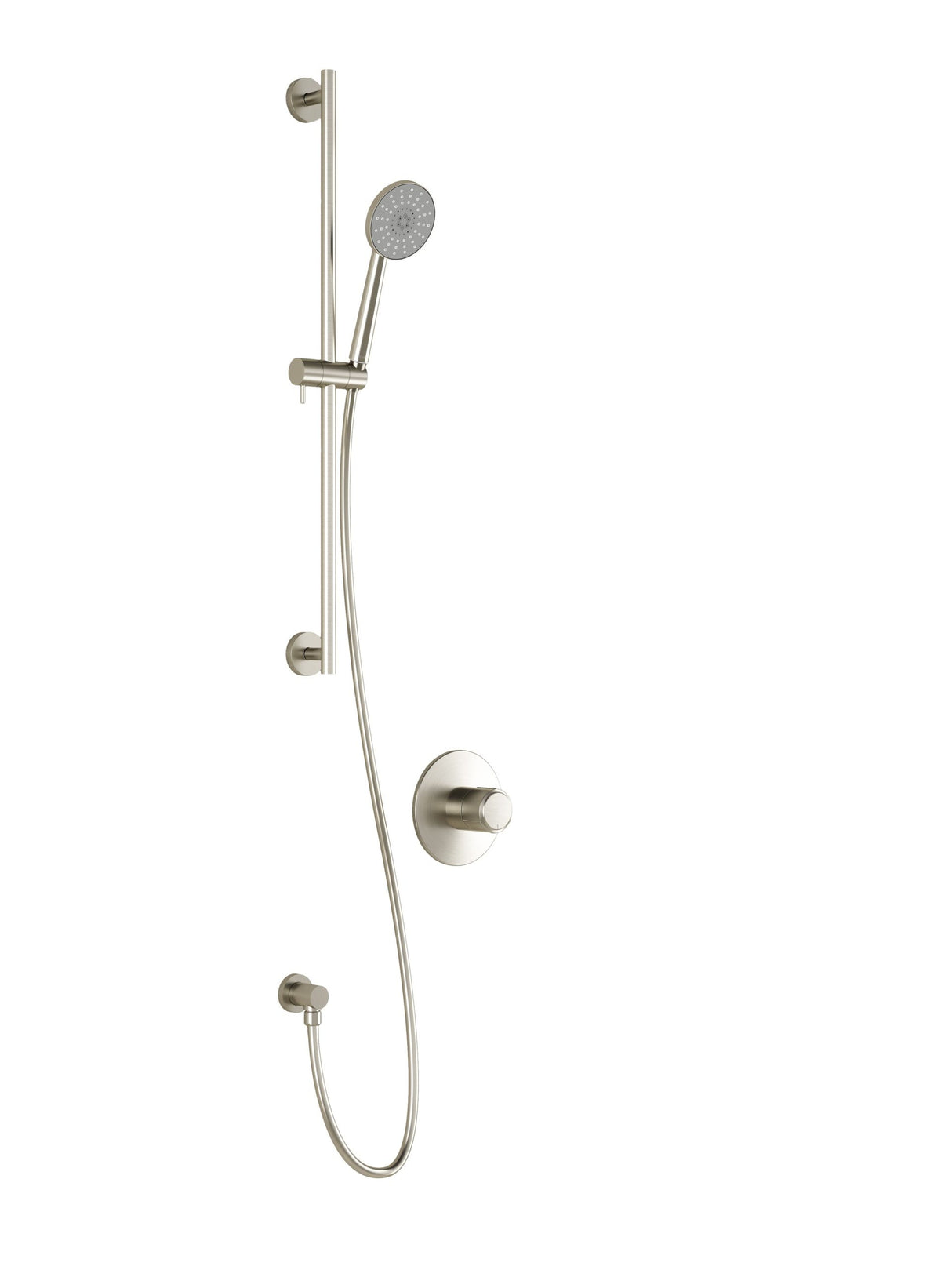

The Kalia CITÉ™ PB1 is a complete pressure balance shower system offered in Chrome and Brushed Nickel. This kit maintains steady water temperature and comes fully matched in one finish. The Chrome version includes a 1/2’’ pressure balance valve and decorative trim, a 3-jet handshower, a wallbar, a wall outlet and a 60’’ flexible and soft PVC hose.

Features

• Chrome version valve: solid brass construction, no visible screw, male water inlet 1/2NPT threaded or welded, can be installed back-to-back, total adjustment of 19 mm (3/4”), shut-off valves and optional lever included
• Chrome version 3-jet handshower: diameter of 100 mm (4’’), anti-scale system with soft sprays, water G1/2 male inlet, 3 direct positions and 2 shared positions
• Chrome version wallbar: total height of 762mm (30’’) with a 1/4 turn locking system
• Chrome version wall outlet: solid brass construction, connector adjustable in depth, female water inlet 1/2NPT and male water outlet G1/2
• Chrome version hose: 60’’ (1524 mm) flexible and soft PVC hose with G1/2 female connection and integrated check valve
• Installation requirement: this product must be installed following the installation instructions provided.
• Kalia Inc. guarantees all aspects of its products to be free of defects in material and workmanship for normal residential use; refer to the warranty included with the Kalia products for details.

Specifications

• Collection: CITÉ™
• Available finishes: Chrome, Brushed Nickel
• Valve maximum flow rate (Chrome version): 20 L/min (5.28 gpm) at 60 psi
• Handshower maximum flow rate (Chrome version): 7.6 L/min (2 gpm) at 80 psi
• Standards (Chrome version): ADA, CSA B125.1, ASME A112.18.1
• Note: Dimensions are approximate and subject to change
