Ceiling Square Arm With Flange

The Kalia SQUAREONE Ceiling Square Arm With Flange (104300) is a square vertical ceiling arm with an adjustable vertical ceiling arm flange. It has a male water inlet 1/2NPT and a male water outlet G1/2. It is available in Chrome, Pure Nickel and Matte Black.

Features

• Male water inlet 1/2NPT
• Male water outlet G1/2
• Adjustable vertical ceiling arm flange
• Dimension of 24 mm x 24 mm x 225 mm (15/16’’ x 15/16” x 8 7/8”)
• Kalia Inc. guarantees all aspects of its products to be free of defects in material and workmanship for normal residential use; refer to the warranty included with the Kalia products for details.
• Installation requirement: this product must be installed following the installation instructions provided.
• Dimensions are approximate and subject to change; refer to the installation instructions.

Specifications

• Collection: SQUAREONE
• Model: 104300
• Mounting: Ceiling (vertical arm)

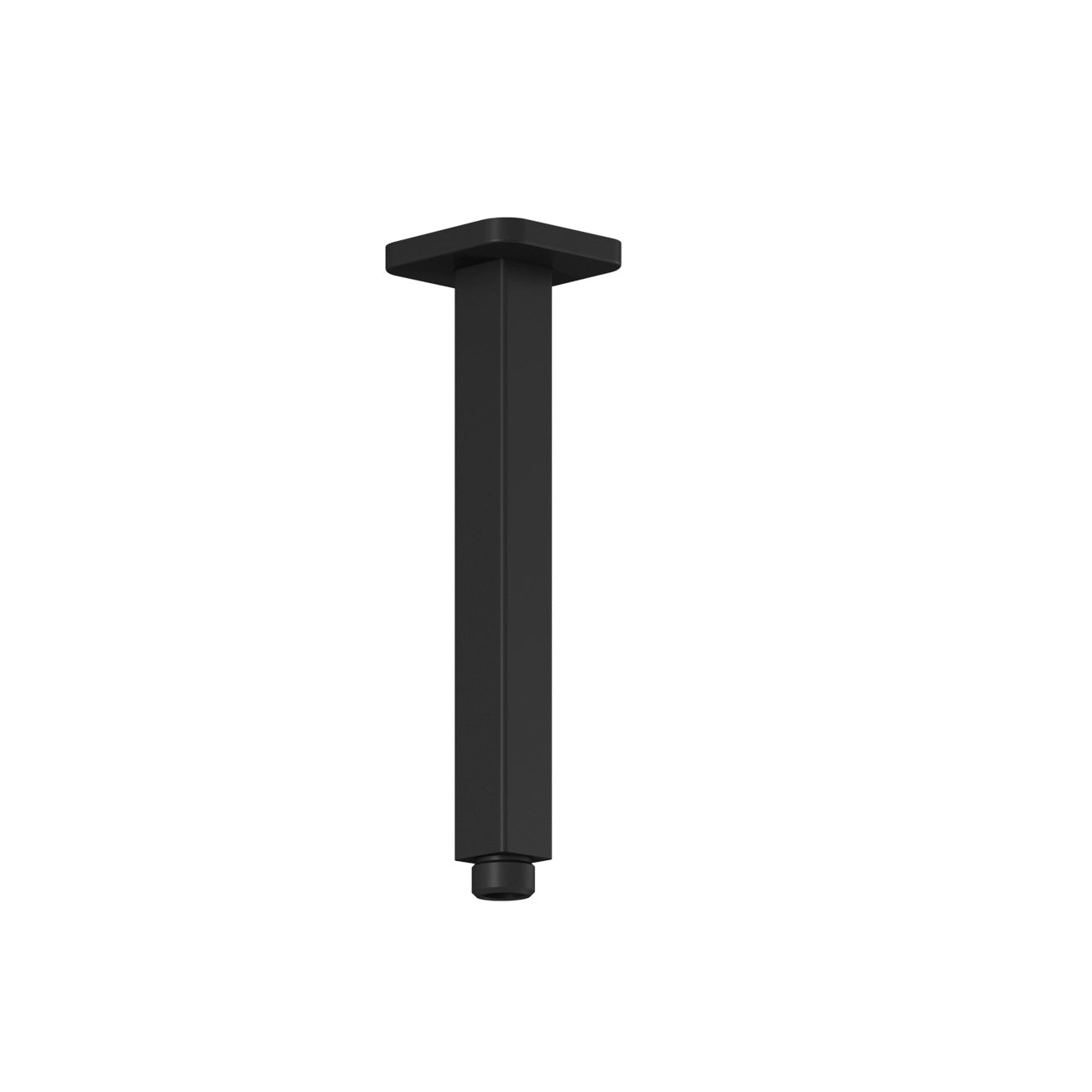

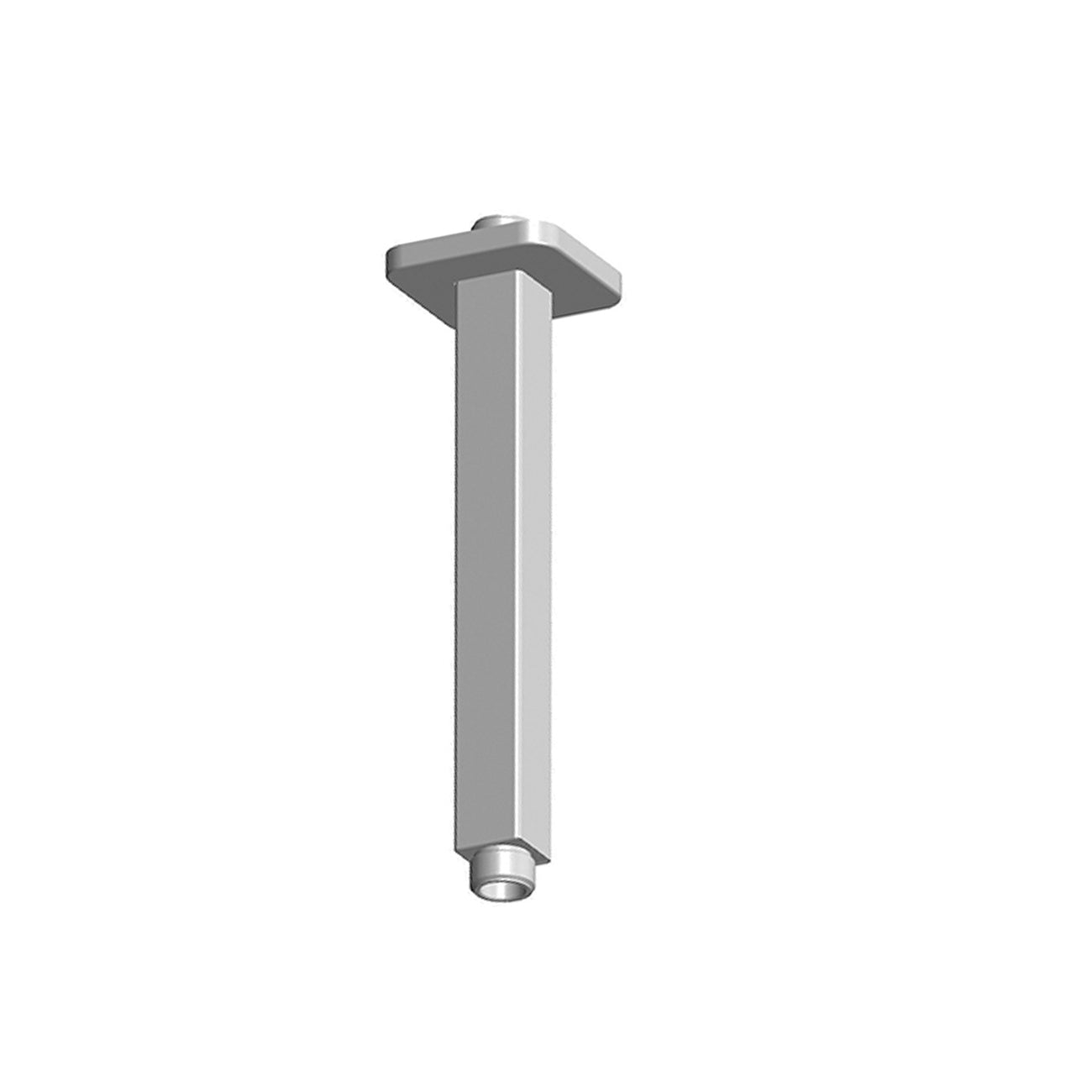

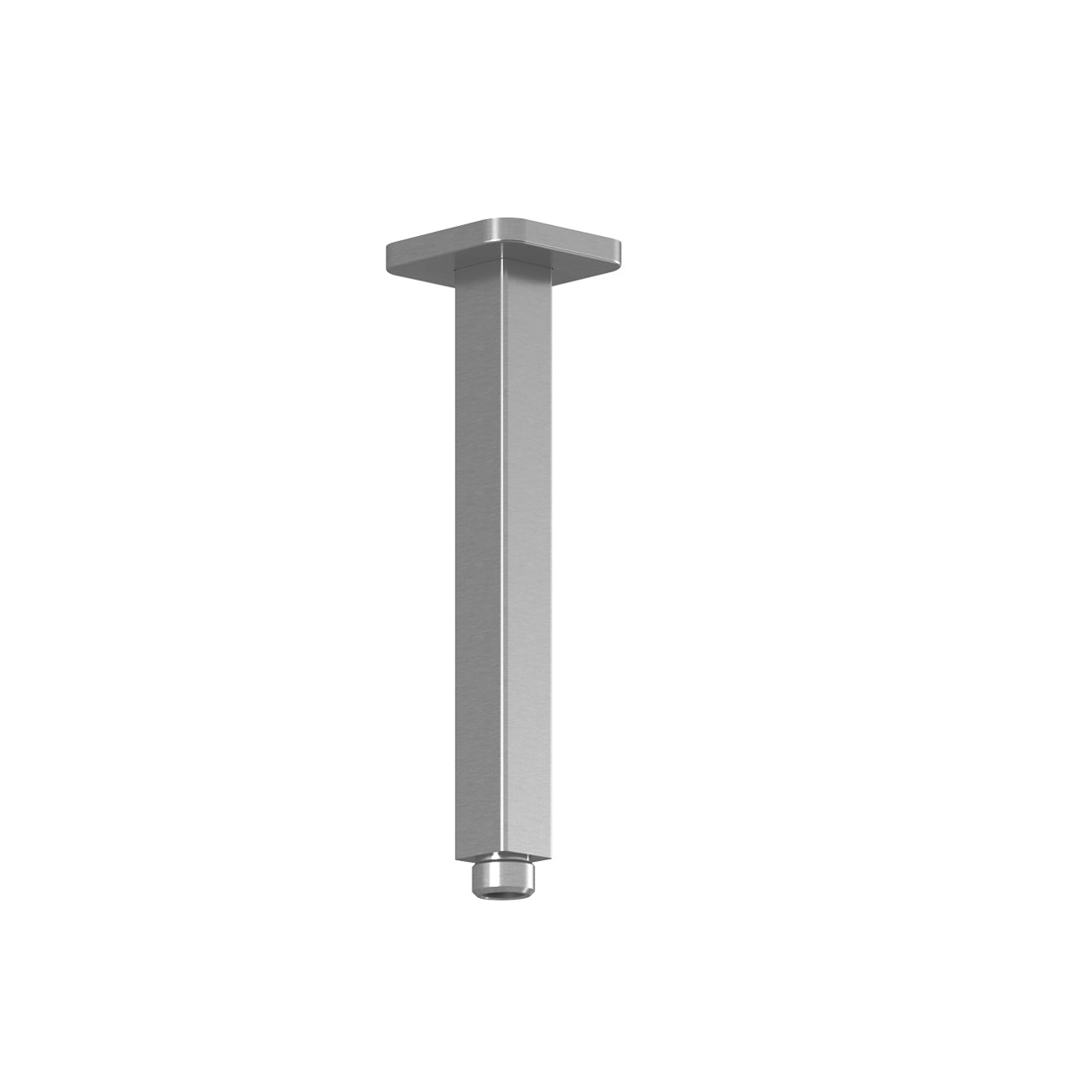

• Available finishes: Chrome (104300-110), Pure Nickel (104300-125), Matte Black (104300-160)
