Cast Iron Shower Drain with 2" Outlet for use with Tile Bases (SD457-SS)

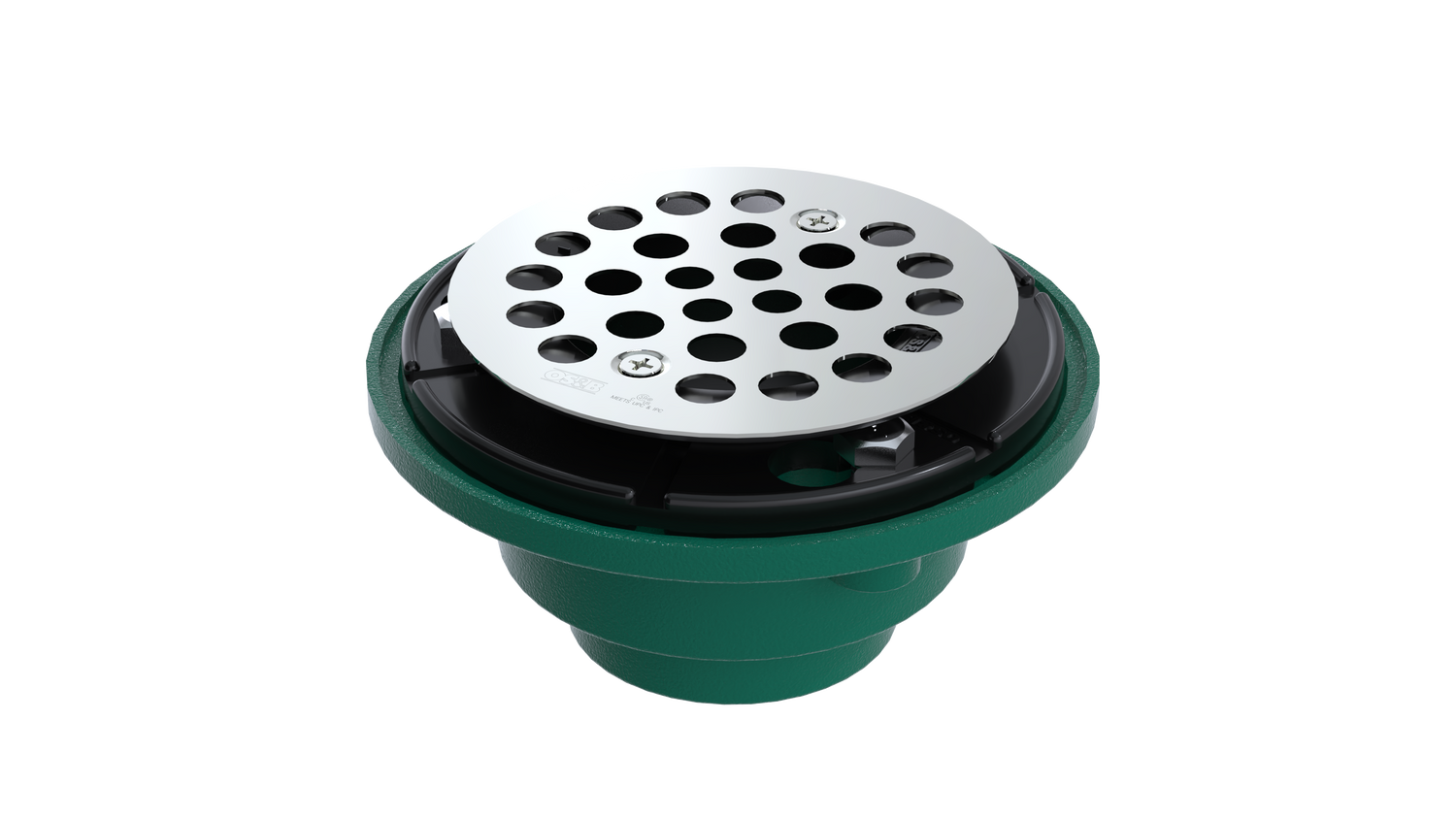

The OS&B SD457-SS is a cast iron shower drain with a 2" nominal outlet for tile bases. It is a 3-piece drain with a 2" cast iron outlet and a 4-1/4" round screw-in grate. The drain includes a round screw-in grate and a reversible collar.

Features

• Cast iron body with 2" IPT female thread connection
• Reversible ABS clamping collar allows for increased adjustability (2-1/4" max)
• 4-1/4" screw-in stainless steel grate
• Thread-in round flange
• Certified to ASME A112.18.2/CSA-B125.2
• Carries the cCSAus mark, which means the product conforms to the requirements of the NPC, UPC, IPC and IRC.

Specifications

• Outlet: 2" nominal
• Material: Cast iron
• Construction: 3 piece
• Grate: 4-1/4" round screw-in stainless steel
• Connection: 2" IPT female thread
• Collar adjustability: 2-1/4" max
• Certification: ASME A112.18.2/CSA-B125.2
• Additional certification: CCSA US UPC Certification
• Finish: Stainless Steel
