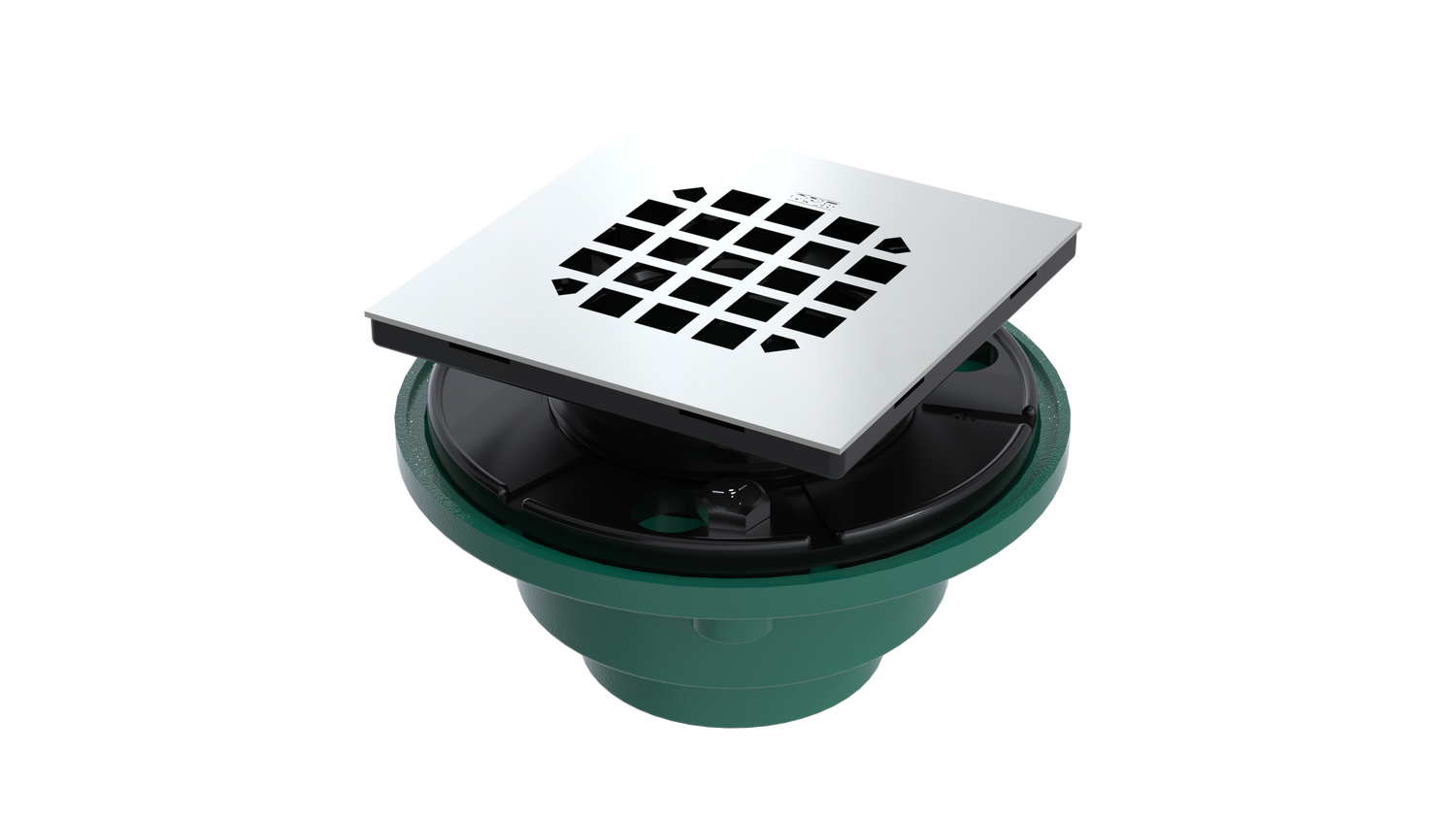

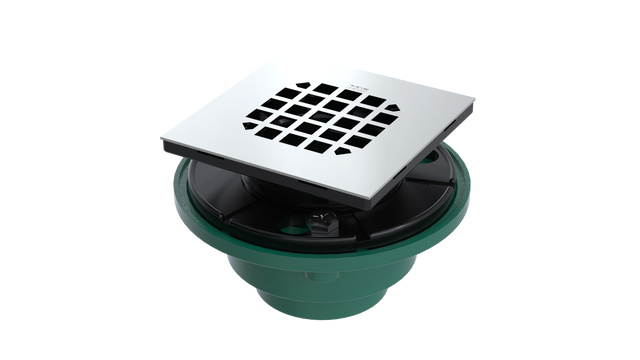

Cast Iron Shower Drain with 1-1/2" Outlet for use with Tile Bases (SD446-SS)

The OS&B SD446-SS is a cast iron straight discharge shower drain for tile bases with a 1-1/2" outlet. It is a 3-piece drain with a 1-1/2" cast iron outlet and a square snap-fit grate. It includes a square snap-fit grate and reversible collar.

Features

• Cast iron body with 1-1/2" IPT female thread connection.
• Reversible ABS clamping collar allows for increased adjustability (2-1/4" max).
• Square snap-in stainless steel grate.
• Thread-in square flange.
• Straight discharge design.

Specifications

• Outlet: 1-1/2" nominal
• Connection: 1-1/2" IPT female thread
• Material: Cast iron
• Grate: Square, snap-fit, stainless steel
• Finish: Stainless Steel
• Certification: ASME A112.18.2/CSA-B125.2
