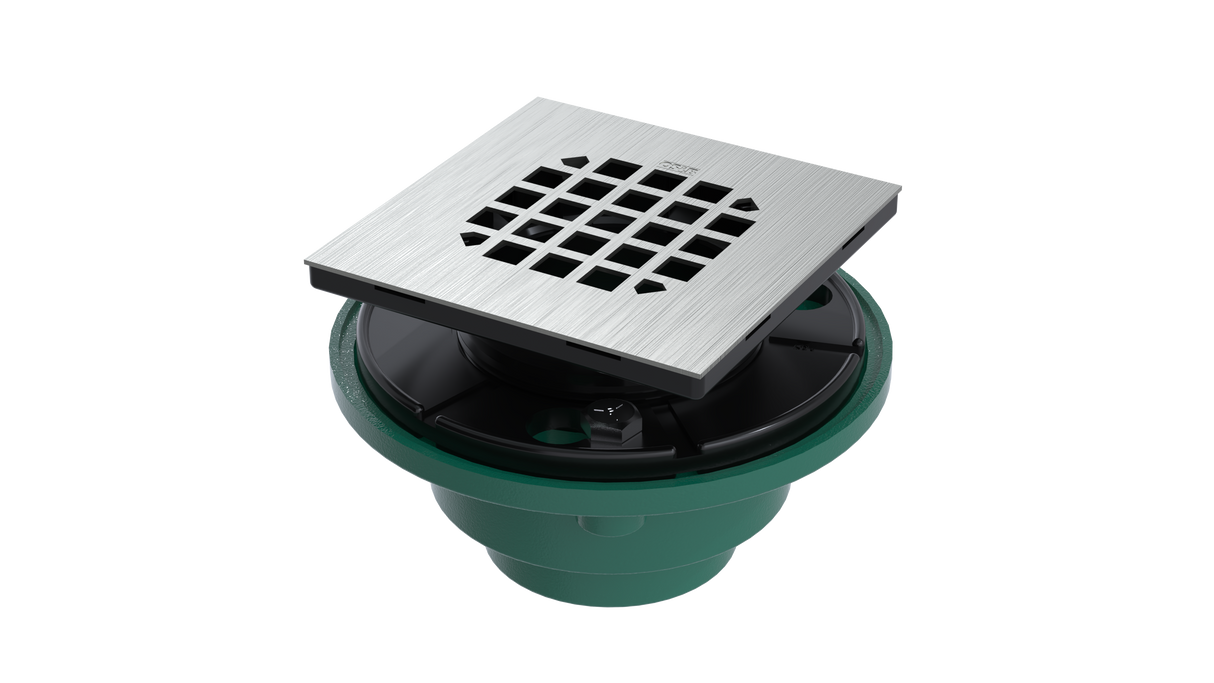

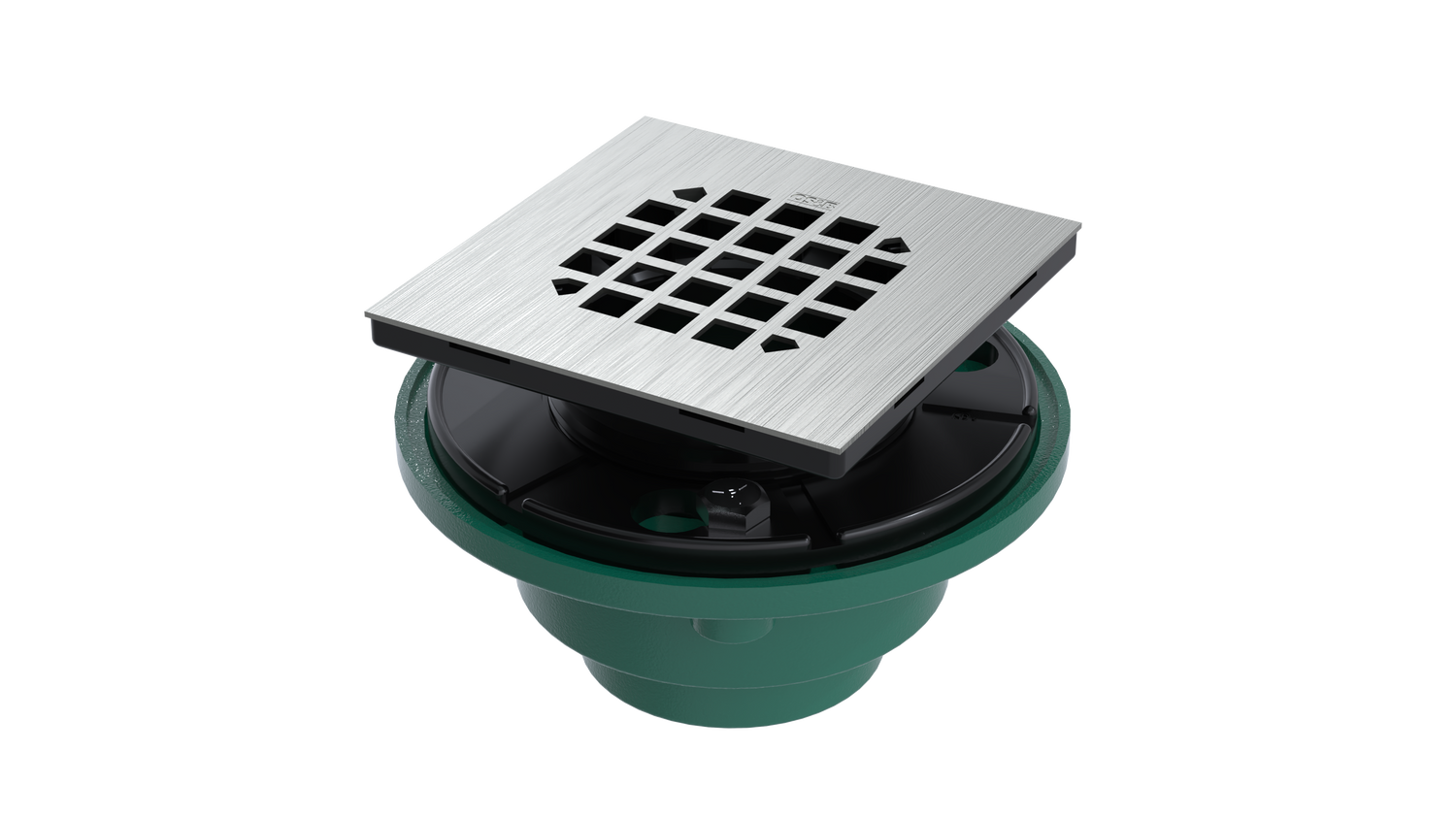

Cast Iron Shower Drain with 1-1/2" Outlet for use with Tile Bases (SD446)

The OS&B SD446 is a cast iron straight discharge shower drain with a 1-1/2" nominal outlet for tile bases, supplied with a square snap-fit grate and reversible collar. This 3-piece drain has a cast iron body with a 1-1/2" IPT female thread connection.

Features

• 3-piece shower drain with a 1-1/2" cast iron outlet.
• Cast iron body with a 1-1/2" IPT female thread connection.
• Reversible ABS clamping collar allows for increased adjustability (2-1/4" max).
• Includes a square snap-fit grate and reversible collar.
• Thread-in square flange.
• Meets ASME A112.18.2/CSA-B125.2.
• Carries the cCSAus Meets UPC & IPC Code mark, which means the product conforms to the requirements of the NPC, UPC, IPC and IRC.

Specifications

• Outlet size: 1-1/2" nominal
• Material: Cast iron
• Connection: 1-1/2" IPT female thread
• Construction: 3 piece
• Discharge: Straight
• Grate: Square snap-fit
• Collar: Reversible ABS clamping collar (2-1/4" max adjustability)
• Flange: Thread-in square

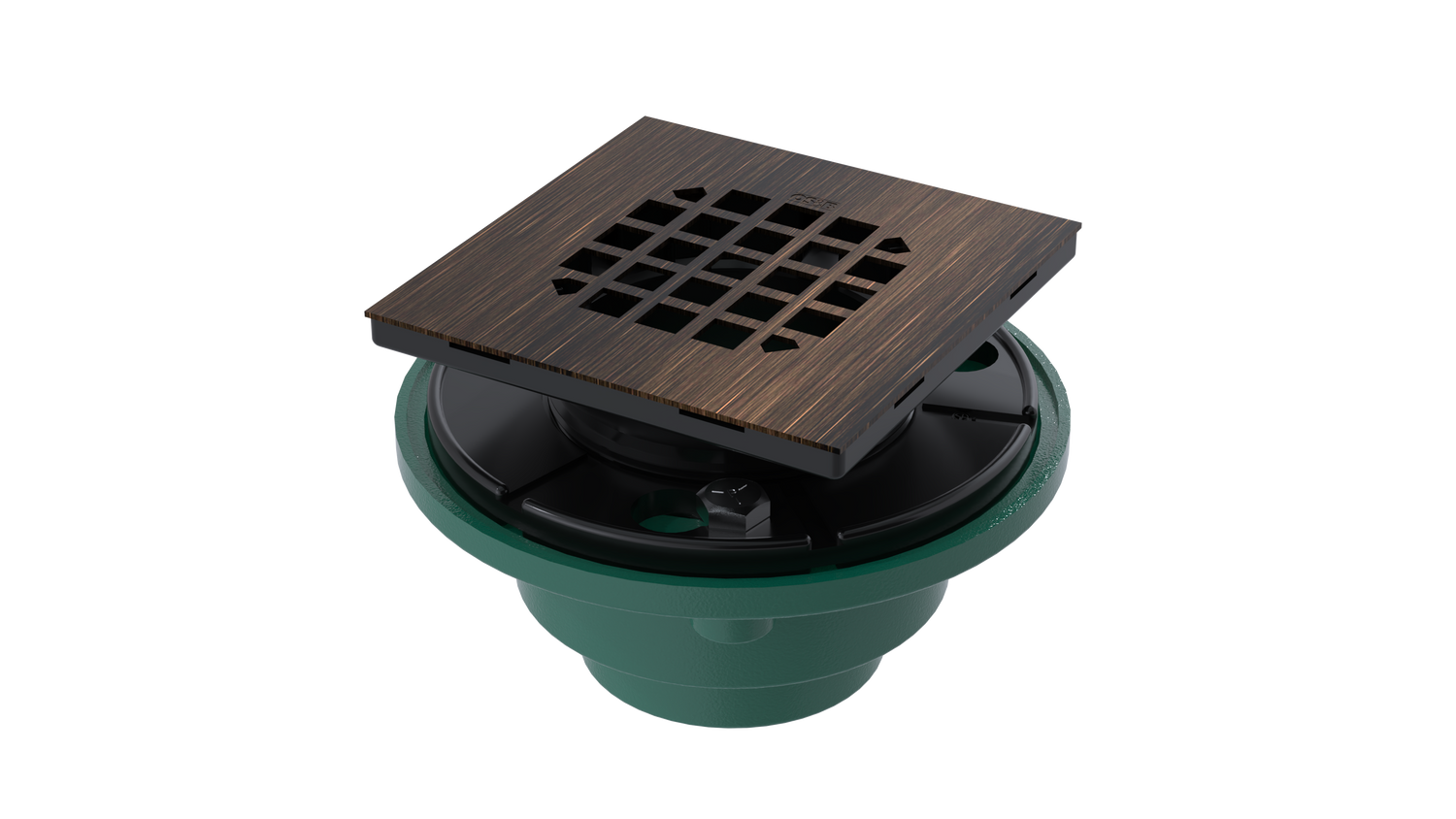

• Available finishes: Brushed Nickel, Venetian Bronze
• Certification: ASME A112.18.2/CSA-B125.2
