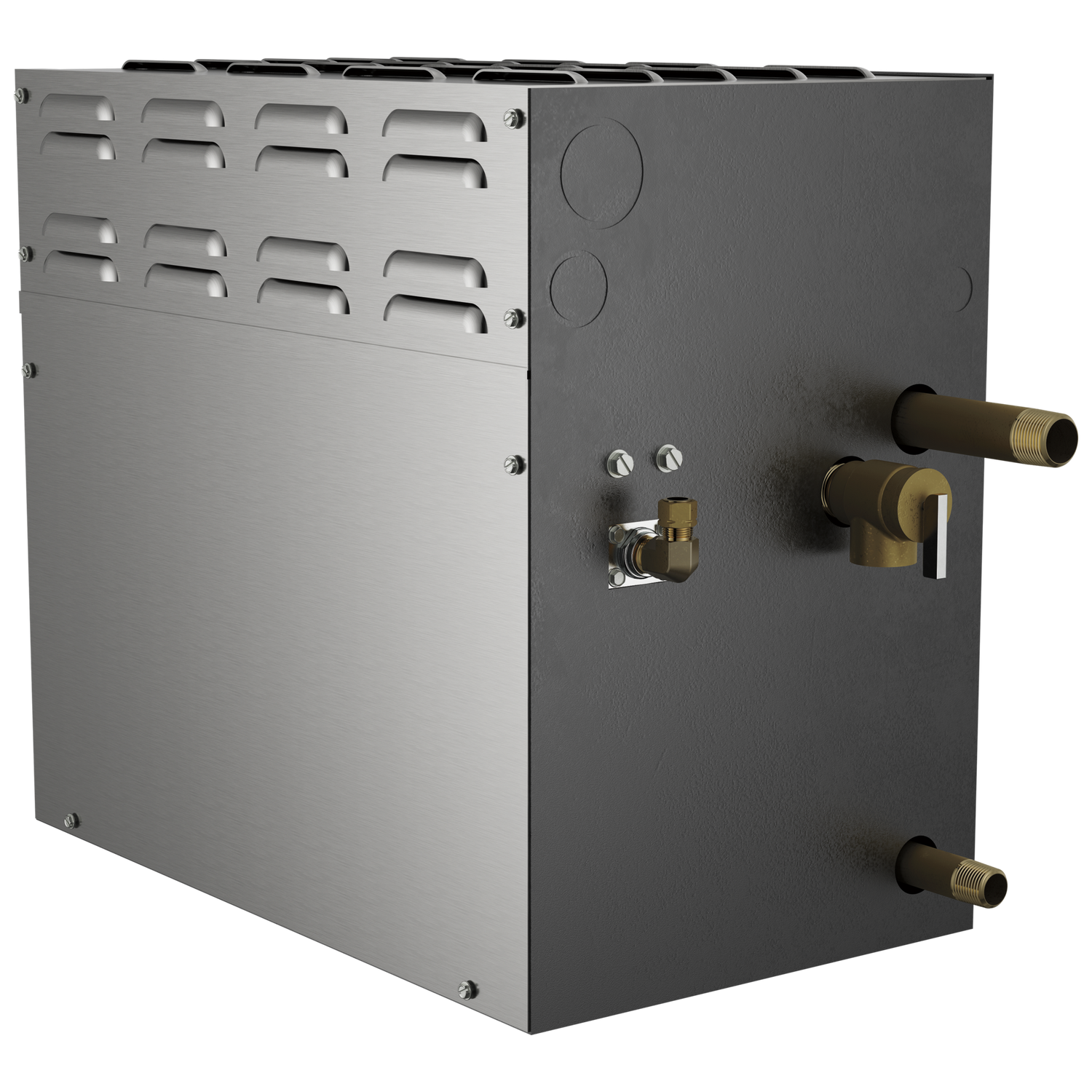

Brizo Mystix 30kW Steam Generator - 240V 1ph

The Brizo Mystix 30kW steam generator (240V, 1-phase) is the generator behind the Mystix Steam System, regulating the steam environment to ensure ideal conditions at every moment. Its compact design permits installation in a vanity, a closet or an insulated attic or basement. Two to four generators can be joined together for larger steam showers.

Features

• RapidMist technology produces quick-response steam; the steam shower takes about a minute to begin heating up, and it can be turned on or off using the Steam Control.
• SteadySteam technology precisely regulates the steam environment without uncomfortable temperature spikes.
• Proportional Steam technology creates a consistent temperature in the shower.
• Microprocessor-based diagnostics and LED indication.
• Stainless steel tank construction and intelligent control communication.
• Includes 35 ft cable (other extension cords sold separately).
• Installation requirements: a control interface and steam head (8CH-250L, 8CB-250L, 8CH-250R, 8CB-250R, 8CH-600S or 8CB-600S) and a dedicated electrical circuit.

Specifications

• Rating: 30 kW
• Volts/phase/max. amps; line fuse: 240/1/125; 150
• Dimensions (L x W x H): 19" x 11 1/8” x 17" (add ¼" to the dimension for the louvers)
• Water supply: 3/8" compression fitting, 120 PSI max
• Steam outlet: 3/4" brass NPT male thread
• Drain outlet: Capped 1/2" brass NPT male thread
• Shipped weight: 50 lbs
• Listing: UL/cUL Listed
• Warranty: Steam generators: lifetime limited warranty; for commercial purchasers, one (1) year from the date the product is received by the original purchaser. Electronic parts: two (2) years for the original consumer purchaser; one (1) year for commercial purchasers
• Note: Dimensions are for reference only
