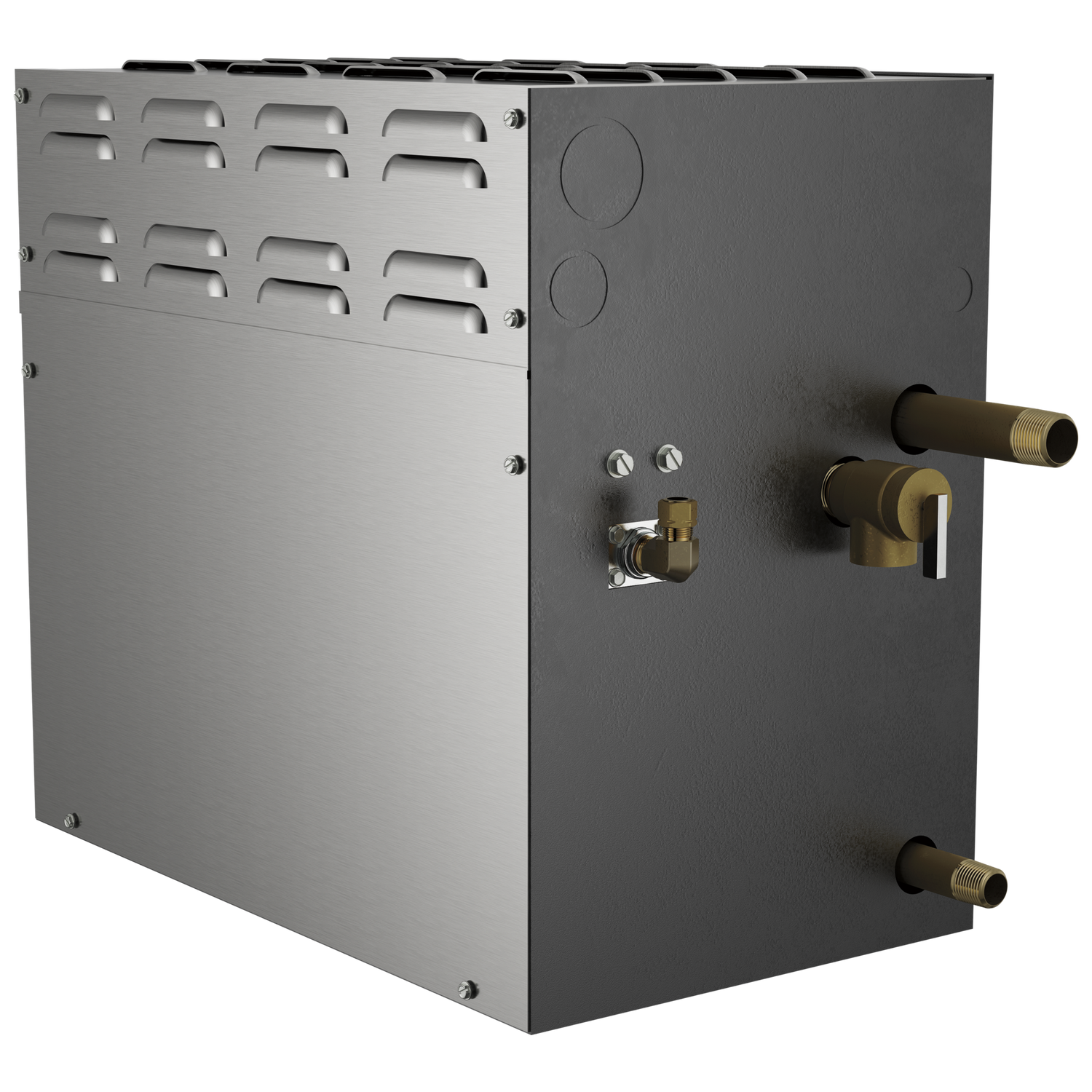

Brizo Mystix 24kW Steam Generator - 240V 1ph

The Brizo Mystix Steam Generator is the 24 kW generator behind the Mystix Steam System, regulating the steam environment to keep ideal conditions at every moment. Its compact design permits installation in a vanity, a closet or an insulated attic or basement. Two to four generators can be joined together for larger steam showers.

Features

• SteadySteam technology precisely regulates the steam environment without uncomfortable temperature spikes.
• RapidMist technology produces quick-response steam; the steam shower takes about a minute to begin heating up, and it can be turned on/off using the Steam Control.
• Proportional Steam technology creates a consistent temperature in the shower.
• Microprocessor-based diagnostics and LED indication.
• Stainless steel tank construction with intelligent control communication.
• Includes a 35 ft cable (other extension cords sold separately).

Specifications

• Power rating: 24 kW
• Max. cu. ft. range: 1100* (*refer to sizing guidelines to accurately determine the proper size generator for the installation)
• Steam room ceiling height: Limit to 8 feet; exceeding 8 feet will require a higher-rated steam generator and may cause poor performance; max ceiling height 10'
• Dimensions (L x W x H): 19"* x 11 1/8"* x 17" (*add ¼" to the dimension for the louvers); dimensions are for reference only
• Water supply: 3/8" compression fitting, 120 PSI max
• Steam outlet: 3/4" brass NPT male thread
• Pressure relief valve: 3/4" NPT female thread
• Drain outlet: Capped 1/2" brass NPT male thread
• Generator shipped weight: 50 lbs
• Listing: UL/cUL Listed
• Required equipment (installation requirement): 8CH-250L, 8CB-250L, 8CH-250R, 8CB-250R, 8CH-600S or 8CB-600S control interface and steam head
• Warranty: Steam generators: lifetime limited warranty; for commercial purchasers, one (1) year from the date the product is received by the original purchaser. Electronic parts: two (2) years for the original consumer purchaser; one (1) year for commercial purchasers
