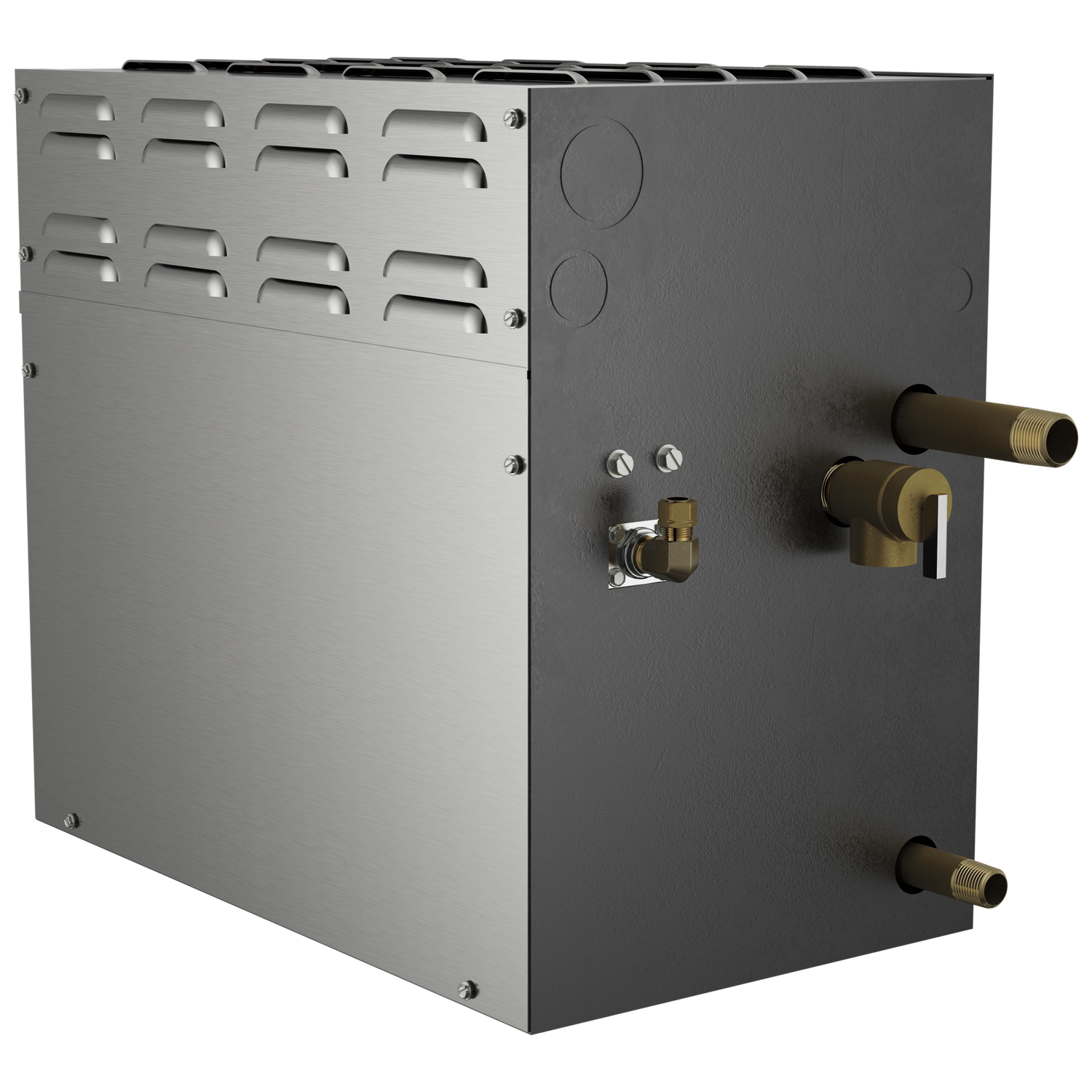

Brizo Mystix 20kW Steam Generator - 240V 1ph

The Brizo Mystix 20 kW steam generator (8GE-TSG20-240-1, 240V 1-phase) powers the Mystix Steam System and regulates the steam environment. Its compact design permits installation in a vanity, a closet or an insulated attic or basement. It includes a 35 ft cable (other extension cords sold separately), and two to four generators can be joined together for larger steam showers.

Features

• SteadySteam technology regulates the steam environment without uncomfortable temperature spikes
• RapidMist technology: the steam shower begins heating up in about a minute; can be turned on/off using the Steam Control
• Proportional Steam technology creates a consistent temperature in the shower
• Microprocessor-based diagnostics and LED indication
• Stainless steel tank construction
• Intelligent control communication
• Generator pan and auto drain are ordered separately
• Steam generators: lifetime limited warranty; for commercial purchasers, one (1) year from the date the product is received

Specifications

• Power: 20 kW
• Dimensions (L x W x H): 19" x 11 1/8" x 17"
• Note: Add ¼" to the 19" and 11 ⅛" dimensions for the louvers; dimensions are for reference only
• Water supply: 3/8" compression fitting, 120 PSI max
• Steam outlet: 3/4" brass NPT male thread
• Pressure relief valve: 3/4" NPT female thread
• Drain outlet: Capped 1/2" brass NPT male thread
• Generator shipped weight: 50 lbs
• Listing: UL/cUL Listed
• Installation requirement: Dedicated circuit required
• Installation requirement: Control interface and steam head: 8CH-250L, 8CB-250L, 8CH-250R, 8CB-250R, 8CH-600S or 8CB-600S
• Installation requirement: Service access minimum 30" W x 24" D x 24" H (37" W with Auto Drain); must NOT be installed outdoors
