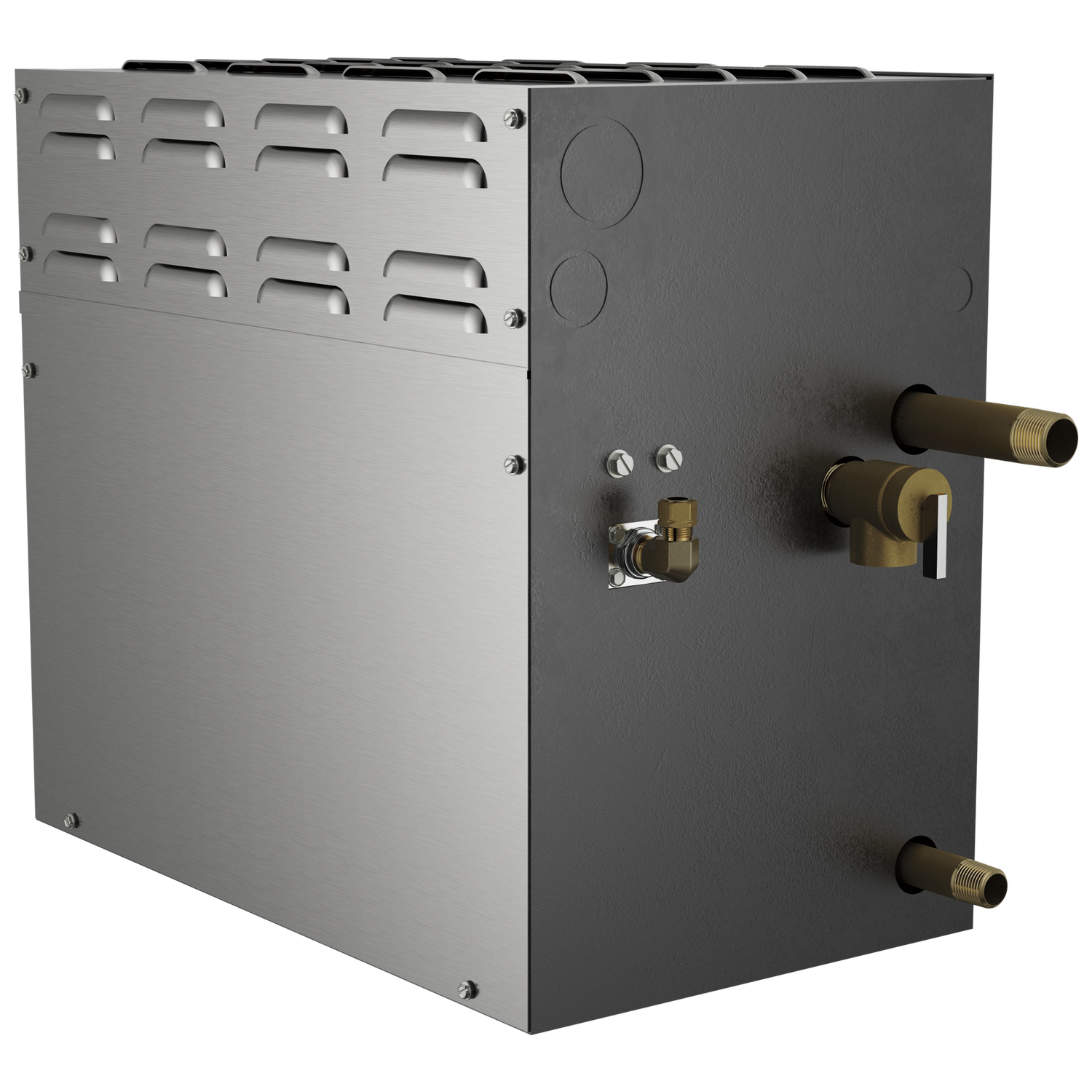

Brizo Mystix 20kW Steam Generator - 240V 1ph

The Brizo Mystix 20kW steam generator is the generator behind the Mystix Steam System, regulating the steam environment to ensure ideal conditions at every moment. Its compact design permits installation in a vanity, a closet or an insulated attic or basement. Two to four generators can be joined together for larger steam showers.

Features

• RapidMist technology produces quick-response steam; the steam shower takes about a minute to begin heating up, and it can be turned on or off using the Steam Control.
• SteadySteam technology precisely regulates the steam environment without uncomfortable temperature spikes.
• Proportional Steam technology creates a consistent temperature in the shower.
• Microprocessor-based diagnostics and LED indication.
• Stainless steel tank construction and intelligent control communication.
• Includes 35 ft cable (other extension cords sold separately).
• Installation requirements: a control interface and steam head (8CH-250L, 8CB-250L, 8CH-250R, 8CB-250R, 8CH-600S or 8CB-600S) and a dedicated electrical circuit.

Specifications

• Rating: 20 kW
• Dimensions (L x W x H): 19" x 11 1/8” x 17" (add ¼" to the dimension for the louvers)
• Water supply: 3/8" compression fitting, 120 PSI max
• Steam outlet: 3/4" brass NPT male thread
• Drain outlet: Capped 1/2" brass NPT male thread
• Shipped weight: 50 lbs
• Listing: UL/cUL Listed
• Warranty: Steam generators: lifetime limited warranty; for commercial purchasers, one (1) year from the date the product is received by the original purchaser. Electronic parts: two (2) years for the original consumer purchaser; one (1) year for commercial purchasers
• Note: Dimensions are for reference only
