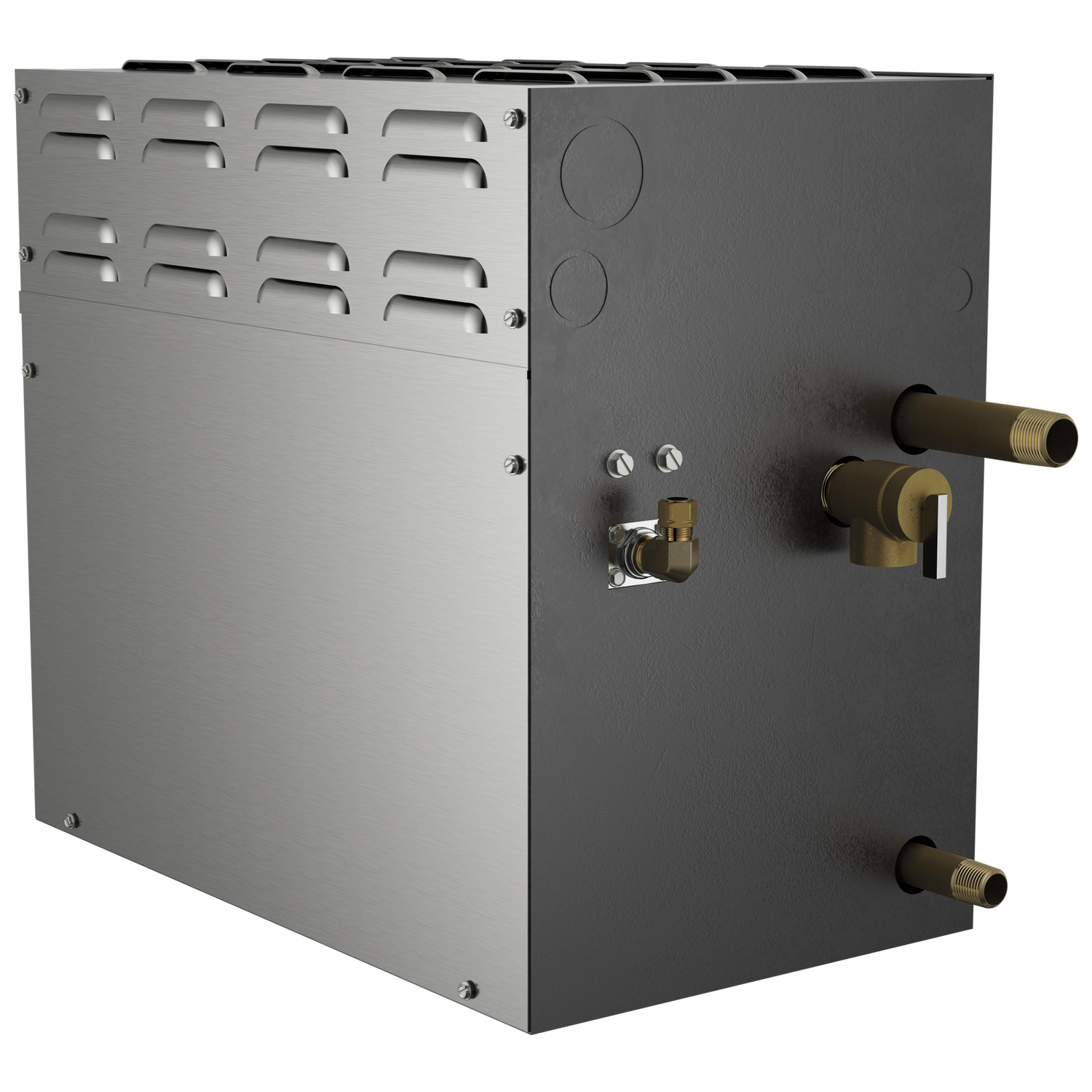

Brizo Mystix 20kW Steam Generator - 240V 1ph

The Brizo Mystix 20kW steam generator regulates the steam environment of the Mystix Steam System to ensure the ideal conditions at every moment. Its compact design permits generator installation in a vanity, a closet or an insulated attic or basement. Two to four generators can be joined together for larger steam showers.

Features

• RapidMist technology produces quick response steam that takes about a minute for the steam shower to begin heating up
• SteadySteam technology precisely regulates the steam environment without uncomfortable temperature spikes
• Proportional Steam technology creates a consistent temperature in the shower
• Microprocessor based diagnostics and LED indication
• Stainless steel tank construction
• Intelligent control communication
• 35 ft cable included (other extension cords sold separately)
• Generator Pan and Auto Drain are ordered separately

Specifications

• Rating: 20 kW
• Dimensions (L x W x H): 19" x 11 1/8" x 17" (add ¼" to the 19" and 11 ⅛" dimensions for the louvers); dimensions are for reference only
• Water supply: 3/8" compression fitting, 120 PSI max
• Steam outlet: 3/4" brass NPT male thread
• Pressure relief valve: 3/4" NPT female thread
• Drain outlet: Capped 1/2" brass NPT male thread
• Service access: Minimum 30" W x 24" D x 24" H (37" W with Auto Drain)
• Installation restriction: Must NOT be installed outdoors, in moist, humid areas, in areas prone to freezing, or in areas where temperatures can exceed 104°F
• Electrical (installation requirement): Dedicated circuit required
• Listing: UL/cUL Listed
