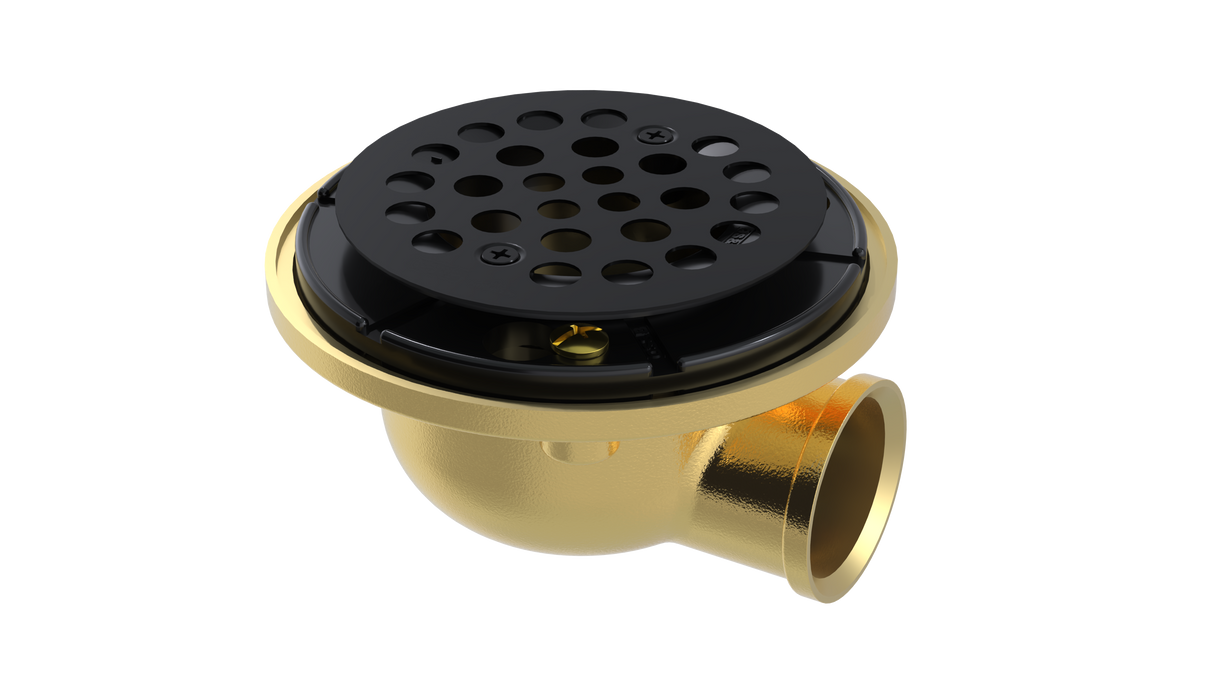

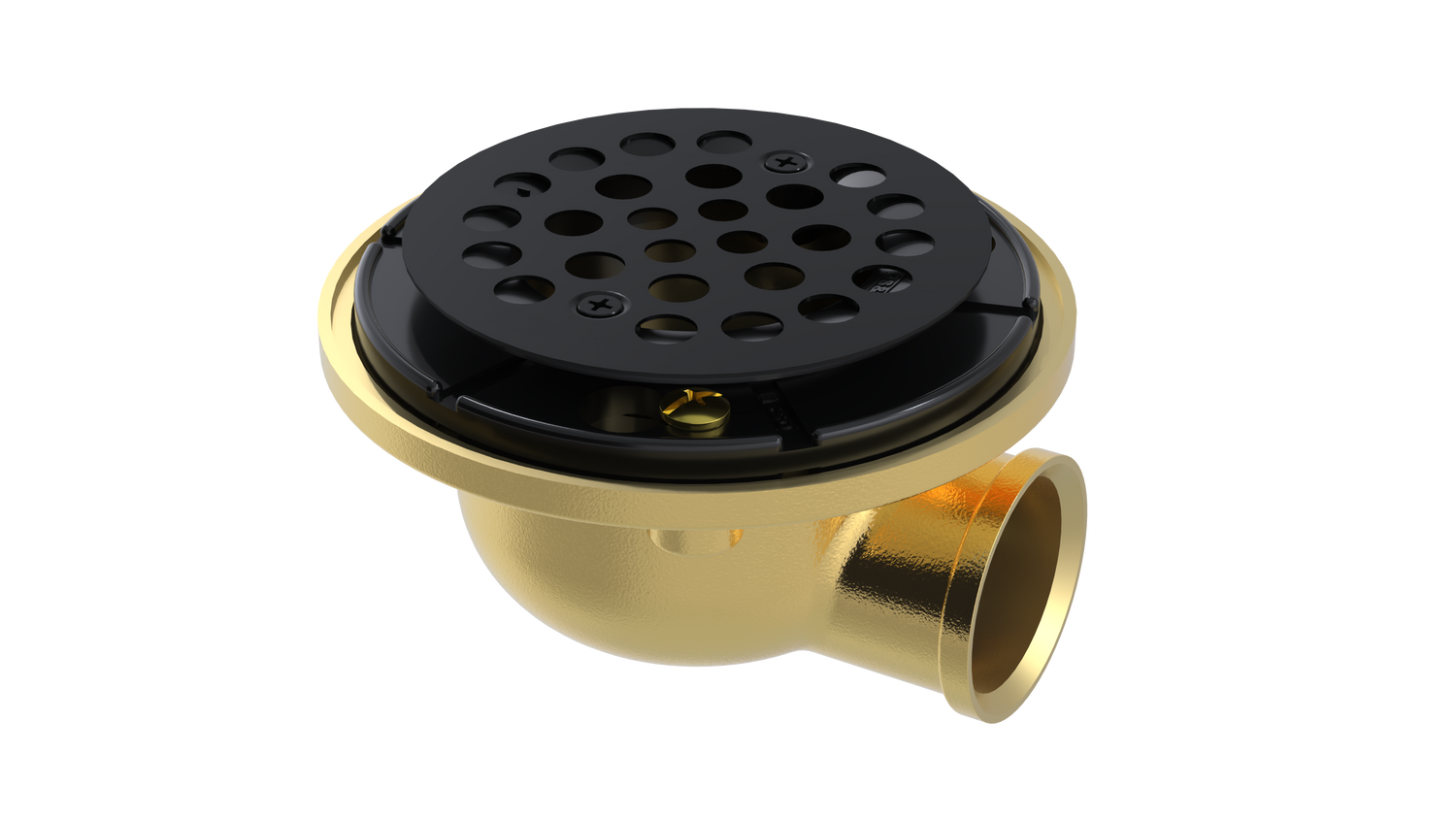

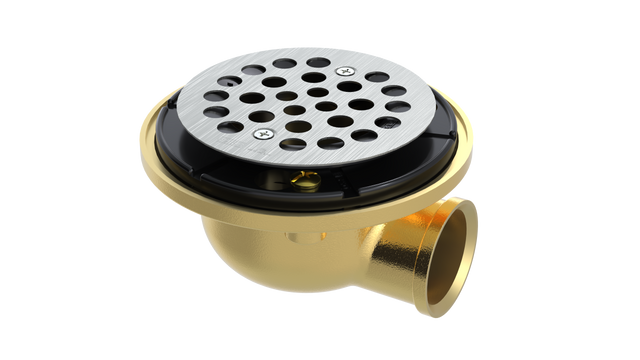

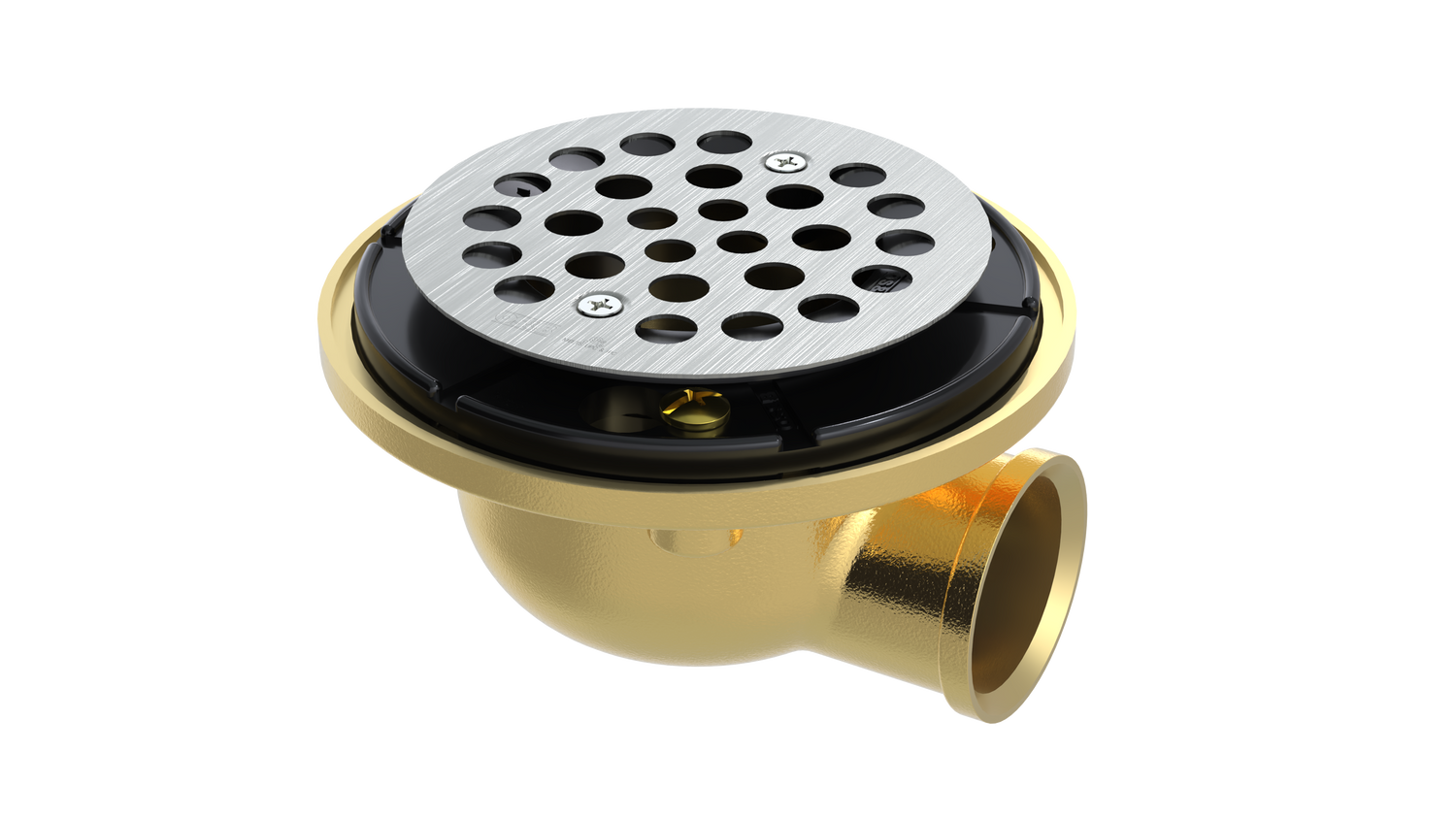

Brass Shower Drain with 1-1/2" Outlet for use with Tile Bases (SD470)

The OS&B SD470 is a brass side discharge shower drain with a 1-1/2" nominal outlet for use with tile bases. It is a 3-piece drain with a 1-1/2" brass outlet and a 4-1/4" round screw-in grate. It has a low profile brass underbody and comes with 3 solid brass bolts.

Features

• Low profile brass underbody
• 1-1/2" nominal side discharge outlet
• Extra-long ABS round thread-in flange for deeper installations
• Reversible ABS clamping collar allows for increased adjustability (2-1/4" max)
• 1-1/2" copper DWV hub connection
• 3 solid brass bolts
• Includes a round screw-in grate
• Certified to ASME A112.18.2/CSA-B125.2
• Carries the cCSAus mark, which means the product conforms to the requirements of the NPC, UPC, IPC and IRC.
• Offered in Brushed Nickel and Matte Black finishes.

Specifications

• Outlet: 1-1/2" nominal side discharge
• Material: Brass
• Construction: 3 piece
• Grate: 4-1/4" round screw-in
• Hub connection: 1-1/2" copper DWV
• Flange: Extra-long ABS round thread-in
• Collar adjustability: 2-1/4" max
• Certification: ASME A112.18.2/CSA-B125.2
• Available finishes: Brushed Nickel, Matte Black
