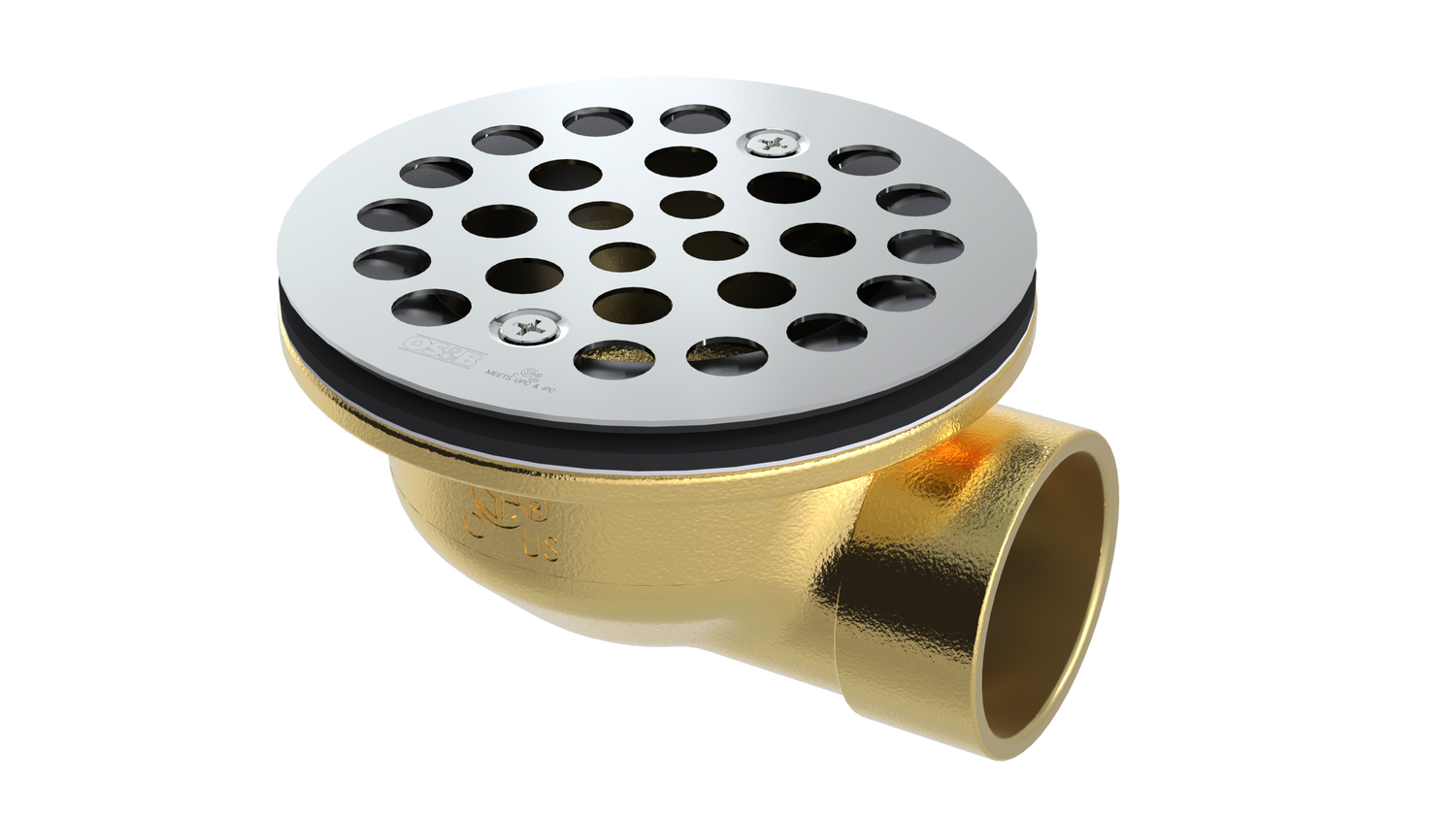

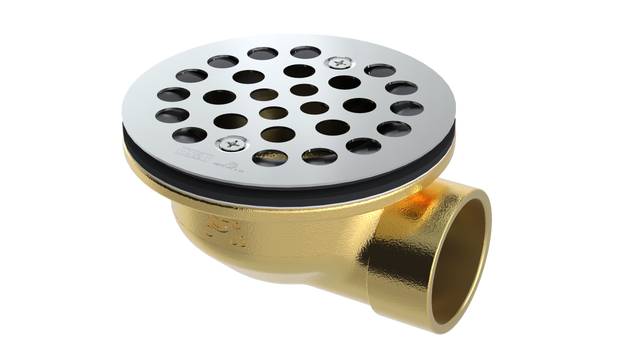

Brass Shower Drain with 1-1/2" Outlet for use with Molded Bases (SD370-SS)

The OS&B SD370-SS is a brass side discharge shower drain with a 1-1/2" nominal outlet for use with molded bases, supplied with a round screw-in grate. This 2-piece drain has a cast brass underbody, a 1-1/2" copper DWV hub connection and a 4-1/4" round screw-in grate.

Features

• Cast brass underbody.
• 1-1/2" copper DWV hub connection.
• Low profile ABS round thread-in flange.
• Includes a 4-1/4" round screw-in grate.
• 2-piece shower drain construction.
• Meets ASME A112.18.2/CSA-B125.2.
• Carries the cCSAus Meets UPC & IPC Code mark, which means the product conforms to the requirements of the NPC, UPC, IPC and IRC.

Specifications

• Outlet size: 1-1/2" nominal
• Material: Brass
• Connection: 1-1/2" copper DWV hub
• Construction: 2 piece
• Discharge: Side
• Grate: 4-1/4" round screw-in
• Flange: Low profile ABS round thread-in
• Finish: Stainless Steel
• Certification: ASME A112.18.2/CSA-B125.2
• Certifications: CCSA US UPC Certification
