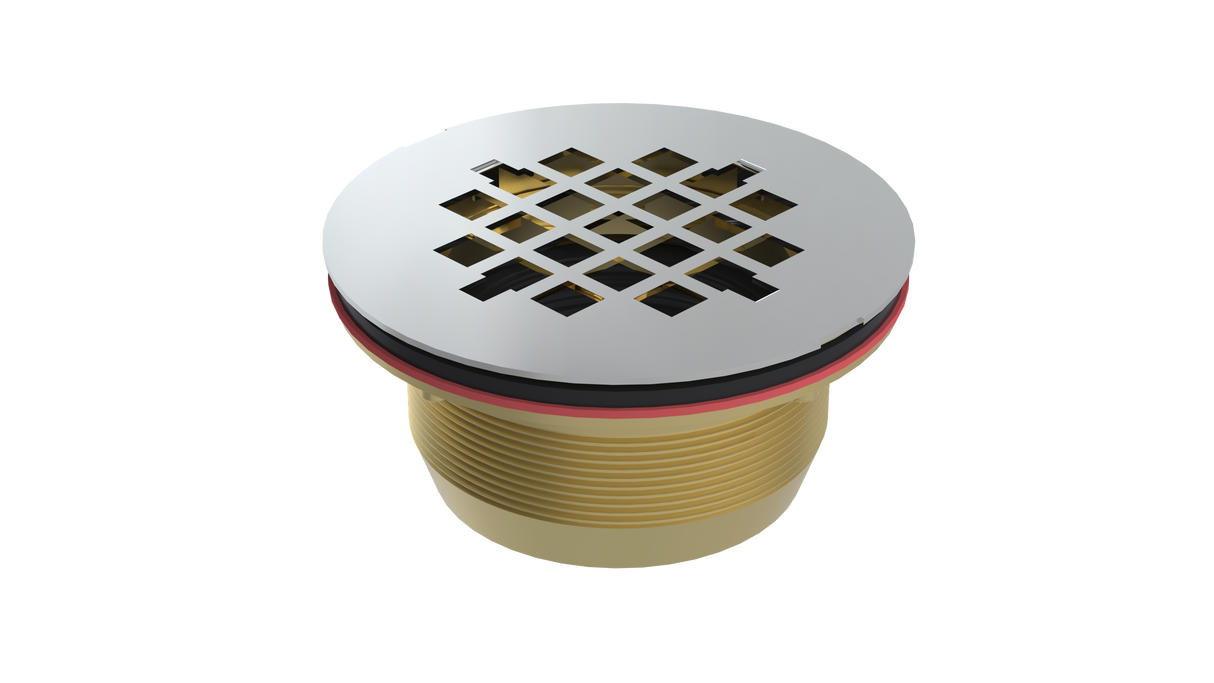

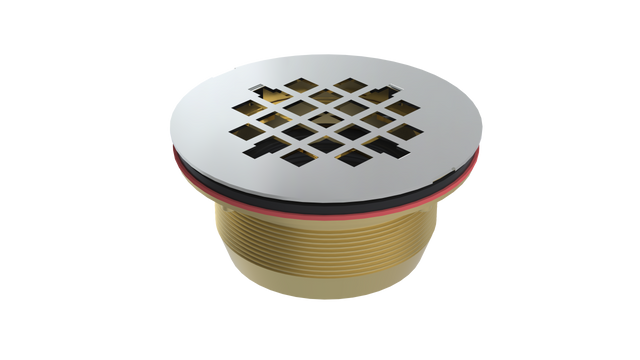

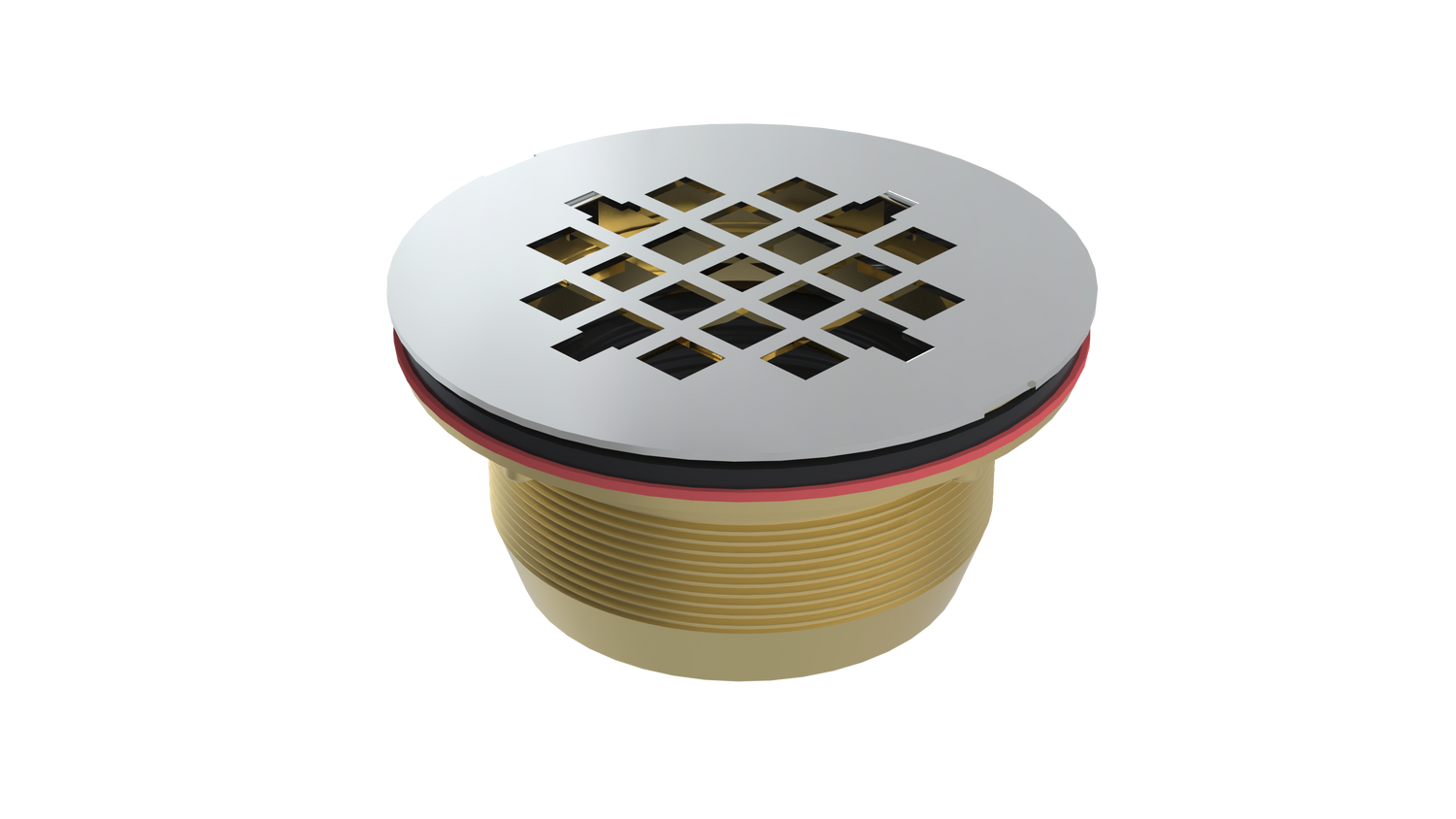

Brass No-Caulk Shower Drain with 2" Outlet for use with Molded Bases (SD22)

The OS&B SD22 is a brass no-caulk shower drain with a 2" nominal outlet for use with molded shower bases. It has a cast brass body, 2-piece construction and a 4-1/4" round snap-fit grate, and the drain body attaches to the pipe from above. Its ribbed gasket compresses and seals around a 2" ABS, PVC or Cast Iron Schedule 40 DWV pipe; it is not for use with 2" copper DWV pipe.

Features

• Cast brass body
• No-caulk design
• Drain body attaches to pipe from above
• Ribbed gasket compresses and seals around 2" ABS, PVC or Cast Iron Schedule 40 DWV pipe
• Not for use with 2" copper DWV pipe
• Includes a round snap-fit grate (4-1/4")
• SD22: 4-1/4" snap-in stainless steel grate
• Fibre washer, rubber washer, lock nut and tightening wrench included

Specifications

• Material: Brass
• Outlet: 2" nominal
• Discharge: Straight
• Construction: 2 piece
• Application: Molded shower bases

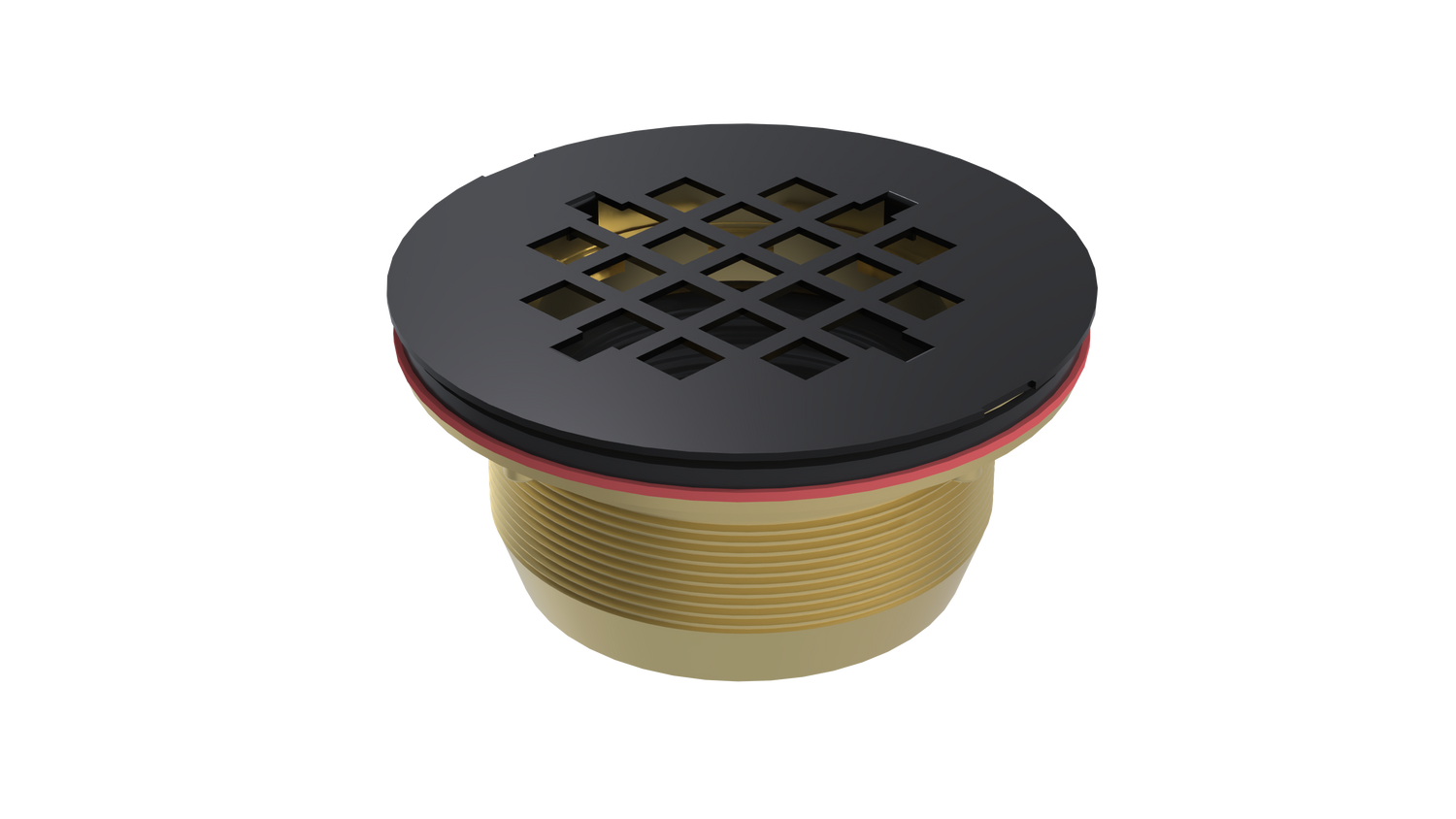

• Finishes by model: SD22: Stainless Steel; SD22-MBL: Matte Black
