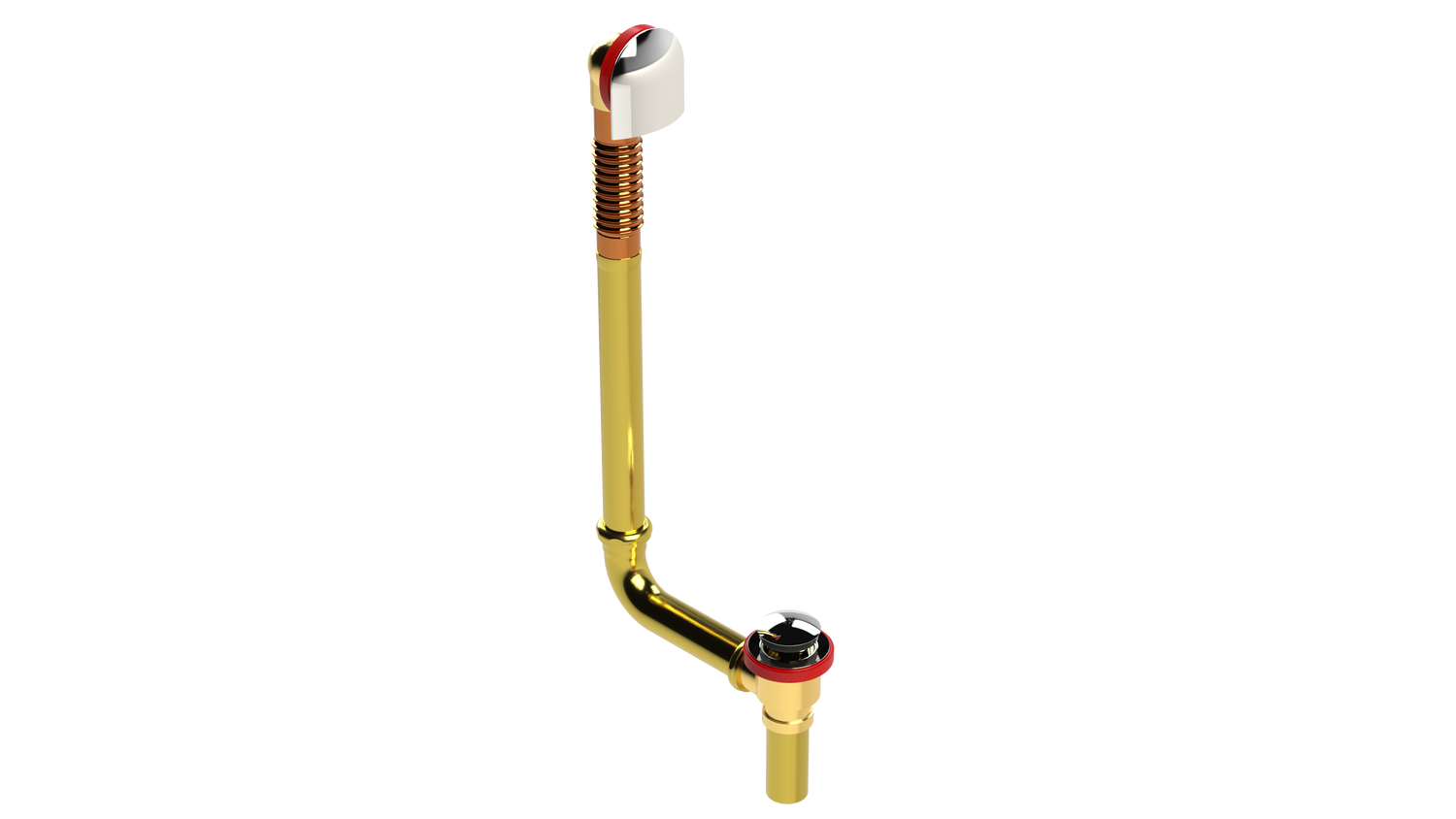

BRASS DIRECT DRAIN WASTE & OVERFLOW TIP TOE EXTENDED (314DTIP-20CP)

The OS&B 314DTIP-20CP is a 1-1/2" brass direct tip-toe bath waste and overflow in an extended length, with a Bell faceplate and a Chrome Plated finish. It features a SlideOn™ faceplate, a spin-on tie plate and an adjustable corrugated overflow tube, with a large strainer and Tip-Toe stopper. It is for 20" bathtubs and uses 1-1/2" brass pipe.

Features

• SlideOn™ faceplate (Bell)
• Spin-on tie plate
• Adjustable corrugated overflow tube
• Large strainer with Tip-Toe stopper
• For 20" bathtubs; uses 1-1/2" brass pipe
• The cCSAus Meets UPC & IPC Code mark means the product conforms to the requirements of the NPC, UPC, IPC and IRC

Specifications

• Style: Direct
• Size: 1-1/2"
• Material: Brass
• Length: Extended
• Faceplate: Bell
• Stopper: Tip-Toe
• Finish: Chrome Plated
• Certification: ASME A112.18.2/CSA-B125.2
• Certification mark: CCSA US UPC Certification
