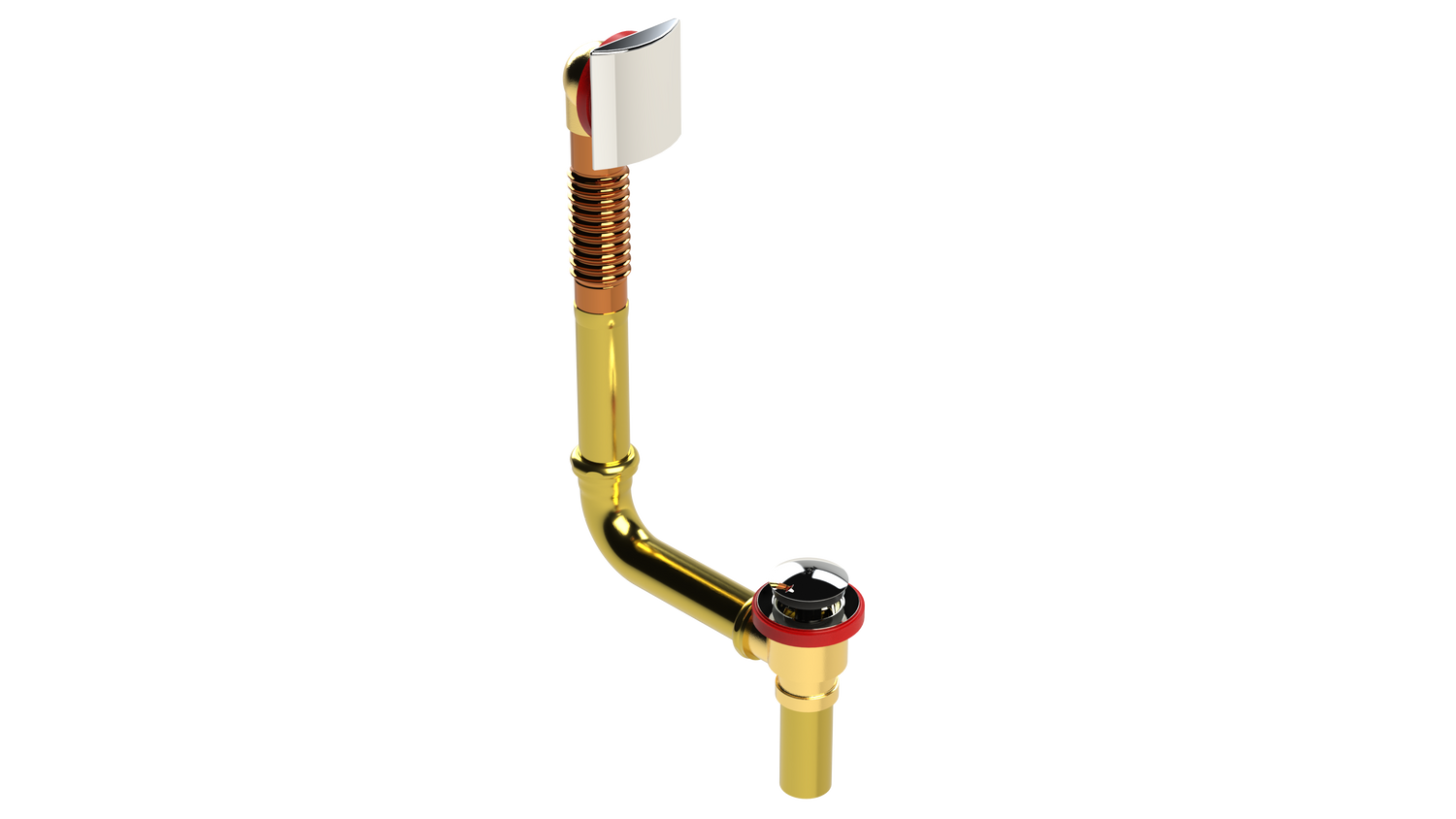

BRASS DIRECT DRAIN WASTE & OVERFLOW TIP-TOE (3141DTIP-CP)

The OS&B 3141DTIP-CP is a 1-1/2" brass direct drain waste and overflow with a Tip-Toe stopper, in the standard length for 16" bathtubs. It features a SlideOn™ faceplate in the Square style, a spin-on tie plate and an adjustable corrugated overflow tube, in a Chrome Plated finish. A large strainer with a Tip-Toe stopper completes the drain, and the assembly uses 1-1/2" brass pipe.

Features

• SlideOn™ faceplate in the Square style
• Spin-on tie plate
• Adjustable corrugated overflow tube
• Large strainer with a Tip-Toe stopper
• Brass direct drain design with Tip-Toe closure
• For 16" bathtubs
• Uses 1-1/2" brass pipe
• Carries the cCSAus "Meets UPC & IPC Code" mark, which means the product conforms to the requirements of the NPC, UPC, IPC and IRC

Specifications

• Drain type: Direct drain
• Length: Standard
• Material: Brass
• Pipe: 1-1/2" brass
• Bathtub size: For 16" bathtubs
• Faceplate: SlideOn™, Square
• Stopper: Tip-Toe
• Strainer: Large
• Finish: Chrome Plated
• Certification: ASME A112.18.2/CSA-B125.2
