Branham™ Full stall washout urinal with top spud

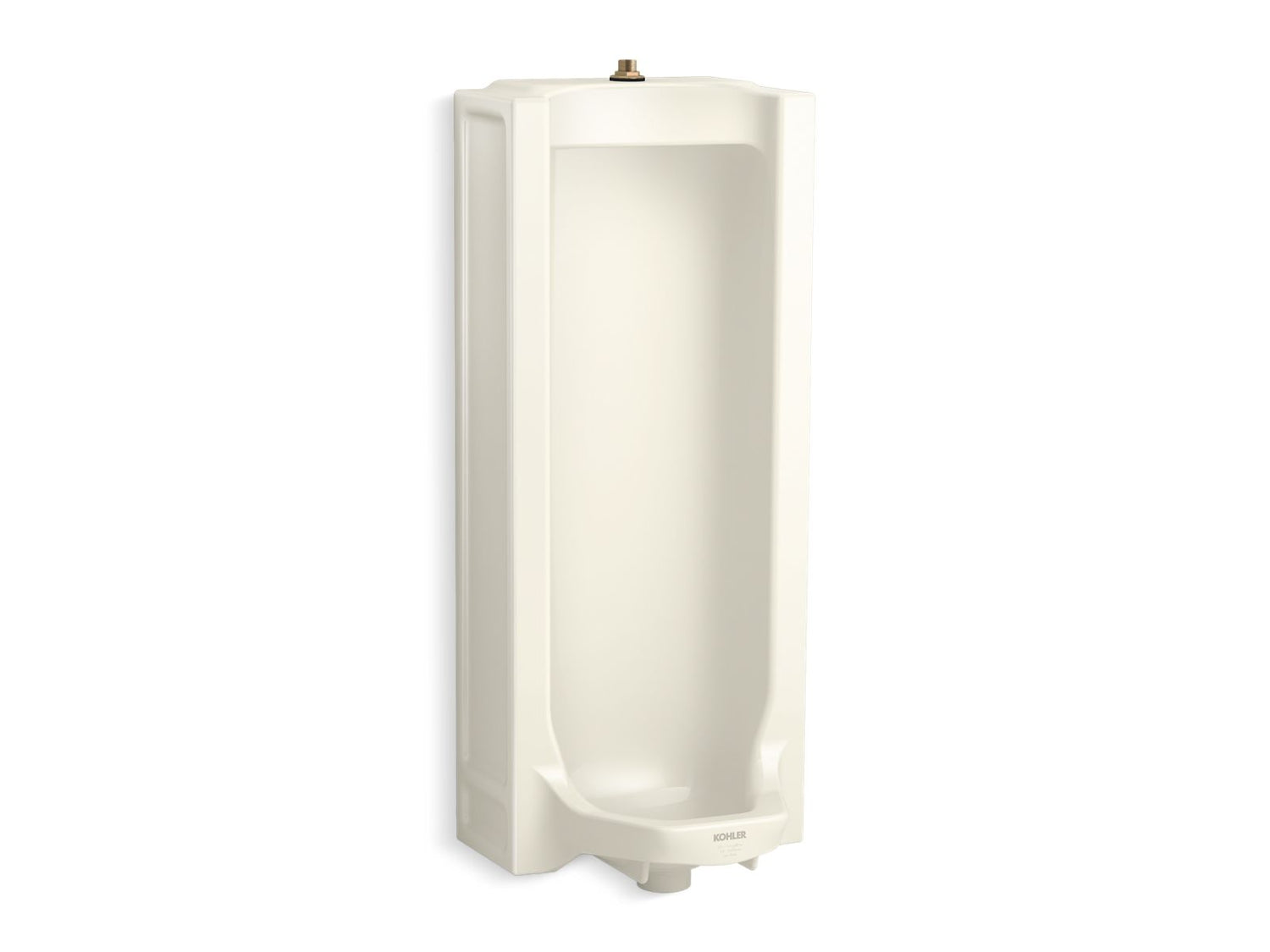

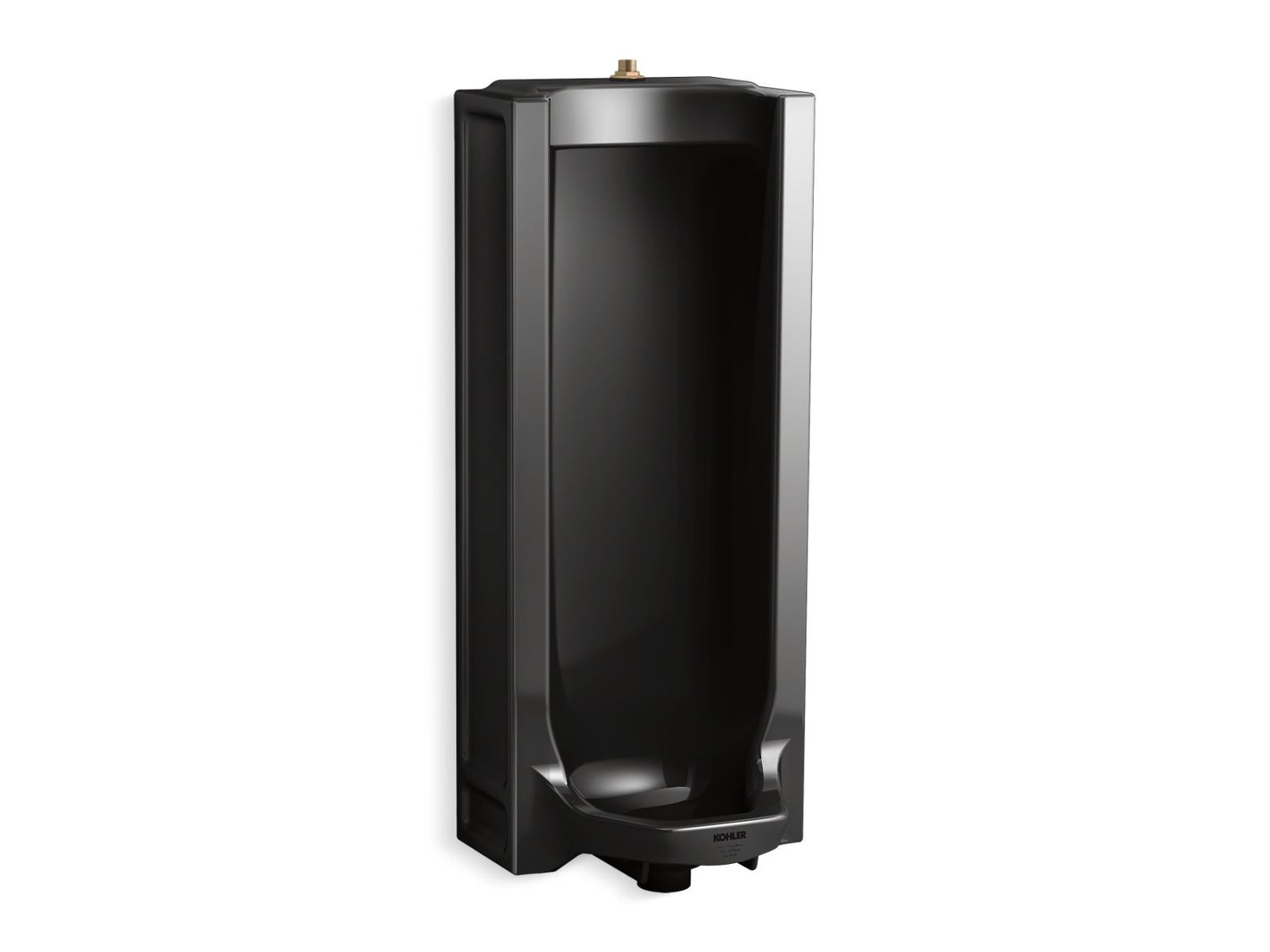

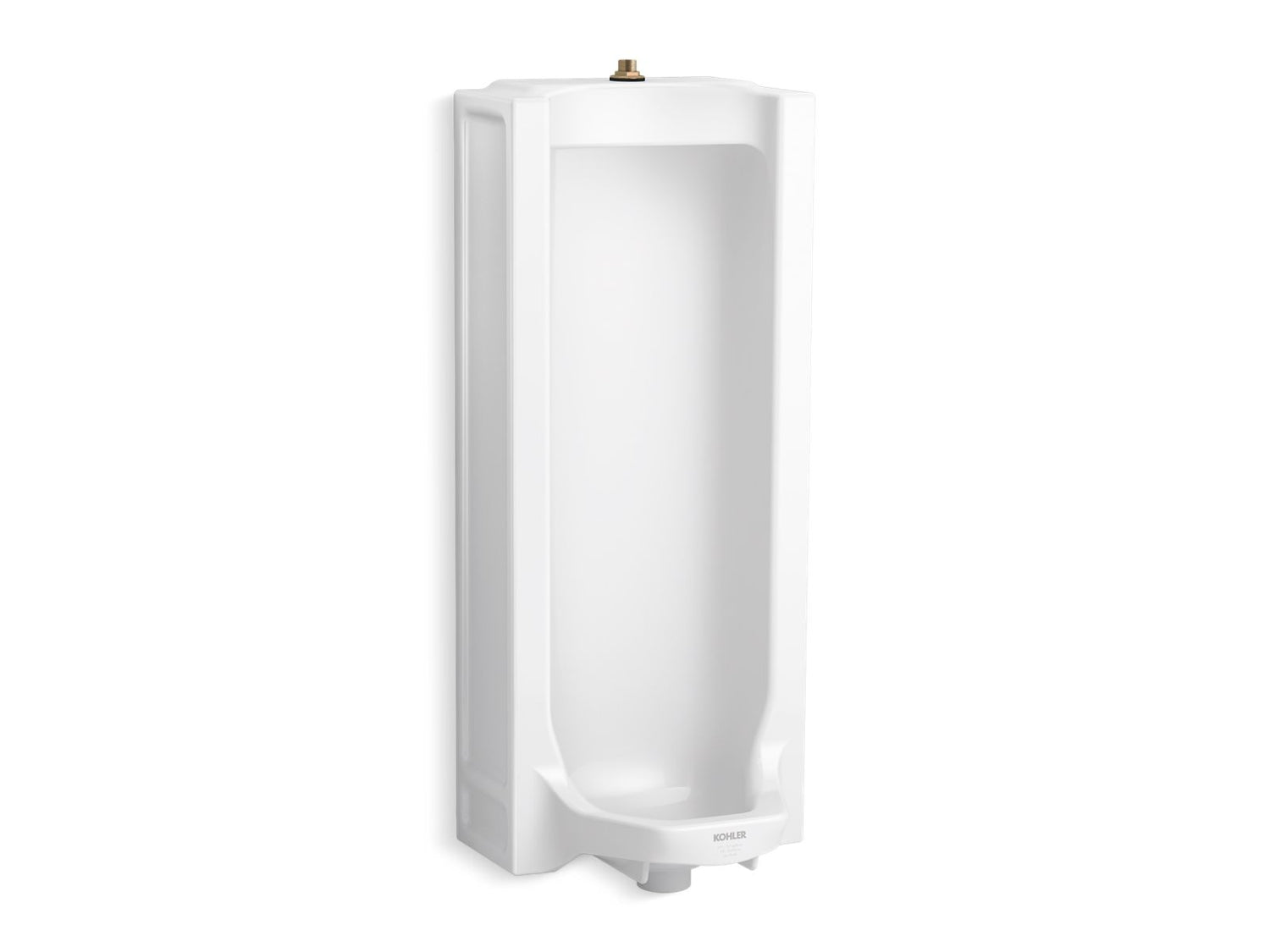

The KOHLER Branham full stall urinal with top spud is constructed of durable vitreous china. It is rated at 0.5 or 1.0 gpf, and the lip of the urinal installs below floor level for easier cleaning around the fixture. Full length sidewalls provide added privacy, and it is offered in White, Black Black and Biscuit.

Features

• 0.5 or 1.0 gpf, designed for this water use when installed with a water-saving flushometer
• Lip of urinal installs below floor level for easier cleaning around the fixture
• Full length sidewalls provide added privacy
• 3/4" (19 mm) top spud
• Includes a 3/4" urinal spud assembly
• Drain sold separately
• Replaces K-4920-T

Specifications

• Available finishes: White, Black Black, Biscuit
• Material: Vitreous china
• Flush rate: 0.5 or 1.0 gpf
• Inlet spud size: 3/4", top
• Outlet spud size: 1 1/2"
• Included components: 18376 3/4" Urinal Spud Assembly (QTY 1)
• Codes/standards: ASME A112.19.2/CSA B45.1; DOE - Energy Policy Act 1992; EPA WaterSense; California Energy Commission (CEC); ADA, OBC, CSA B651 compliant when installed to the specific requirements of these regulations
• WaterSense note: This product should be used with a WaterSense labeled counterpart with the same rated flush volume to ensure the complete system meets the requirements of this specification for water efficiency and performance
• Installation requirement: Refer to manufacturer's instructions and local codes for flushometer requirements
• Warranty: KOHLER One-Year Limited Warranty
• Note: Product dimensions are nominal and may vary per ASME A112.19.2 tolerances
