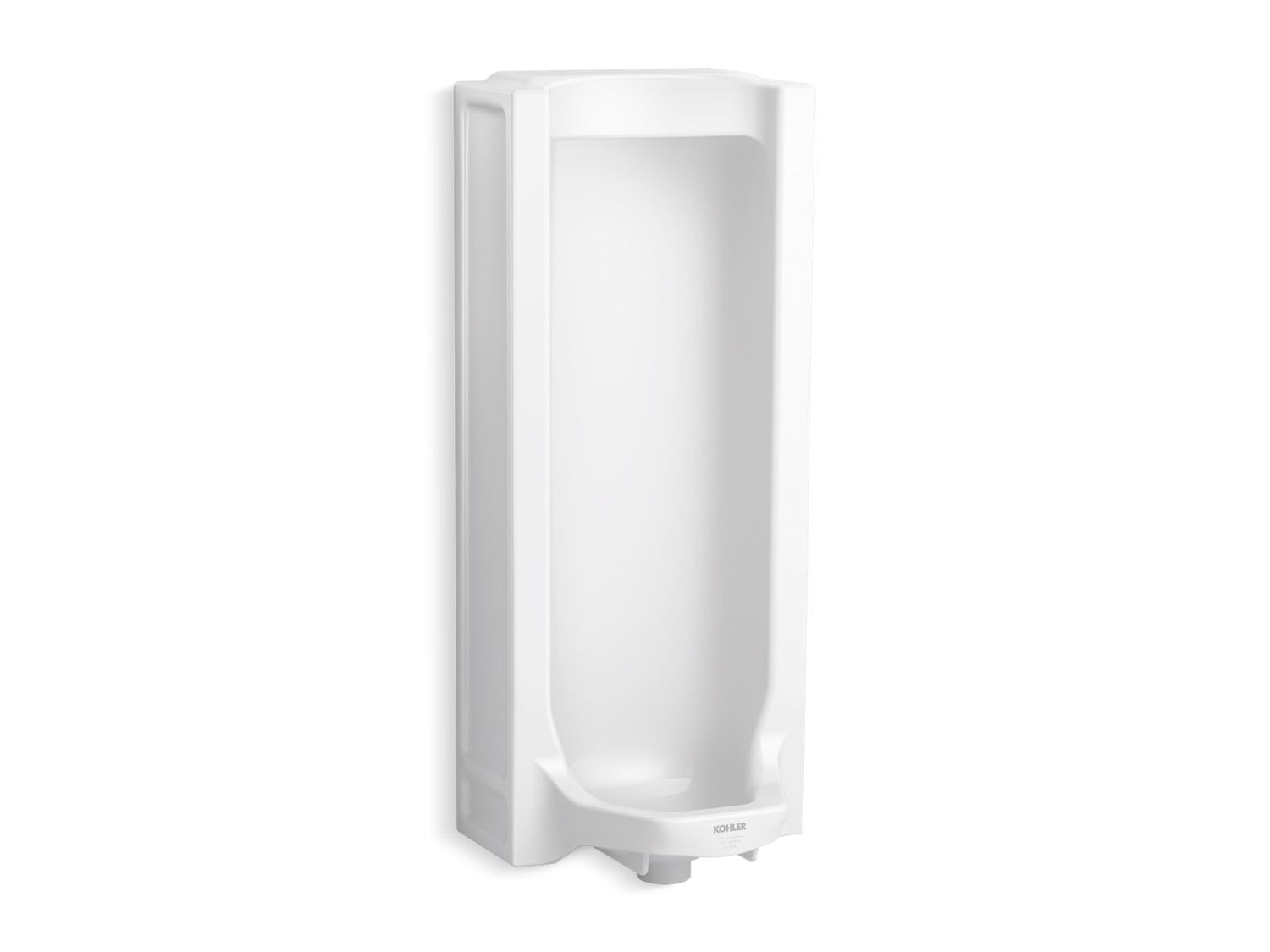

Branham™ Full stall washout urinal with rear spud

The KOHLER Branham™ full stall washout urinal with rear spud brings KOHLER styling and functionality to any application. It is constructed of durable vitreous china and is rated at 0.5 or 1.0 gpf. Full length sidewalls provide added privacy, and the lip of the urinal installs below floor level for easier cleaning around the fixture.

Features

• Full-stall wash-down urinal
• 0.5 or 1.0 gpf; designed for this water use when installed with a water-saving flushometer
• Lip of urinal installs below floor level for easier cleaning around fixture
• Full length sidewalls provide added privacy
• 3/4" (19 mm) rear spud
• Drain sold separately
• Requires a K-9172 china grate urinal strainer or K-9183 stainless steel beehive grate urinal strainer
• Replaces K-4920-R
• Refer to manufacturer's instructions and local codes for flushometer requirements

Specifications

• Material: Vitreous china
• Flush rate: 0.5 or 1.0 gpf
• Inlet spud: 3/4", rear
• Outlet spud: 1 1/2"
• Codes/standards: ASME A112.19.2/CSA B45.1, DOE - Energy Policy Act 1992, EPA WaterSense®, California Energy Commission (CEC), ICC/ANSI A117.1; ADA, OBC, CSA B651 compliant when installed to the specific requirements of these regulations
• WaterSense note: Should be used with a WaterSense labeled counterpart with the same rated flush volume to ensure the complete system meets the requirements of this specification for water efficiency and performance
• Warranty: KOHLER® One-Year Limited Warranty
• Colour: White
• Note: Product dimensions are nominal and may vary per ASME A112.19.2 tolerances
