Avec® 60" x 32" drop-in bath

The KOHLER Avec 60" x 32" drop-in bath is an acrylic bathtub with a 13-1/4" (337 mm) deep-soaking depth and a slotted overflow that allows for deep soaking. Integral lumbar support and a neck rest offer extra comfort while bathing, and a low step-over height allows easy entry and exit. It has a reversible drain and comes in White or Biscuit.

Features

• Slotted overflow allows for deep soaking
• 13-1/4" (337 mm) deep-soaking depth provides a relaxing bathing experience
• Integral lumbar support and neck rest offer extra comfort while bathing
• Low step-over height allows easy entry and exit
• Integral overflow reduces installation time
• Textured bottom surface
• ADA compliant when installed to the specific requirements of these regulations
• Installation requirement: the hot water supply should be 70% of the capacity of the bath or greater; installations will vary

Specifications

• Available finishes: White, Biscuit
• Installation: Drop-in
• Drain location: Reversible
• Drain hole diameter: 2-1/4" (57 mm)
• Minimum flat for door: 2-15/16" (75 mm)
• Basin area, bottom: 43-1/2" x 20-13/16" (1105 mm x 529 mm)
• Basin area, top: 55-15/16" x 25-1/2" (1421 mm x 647 mm)

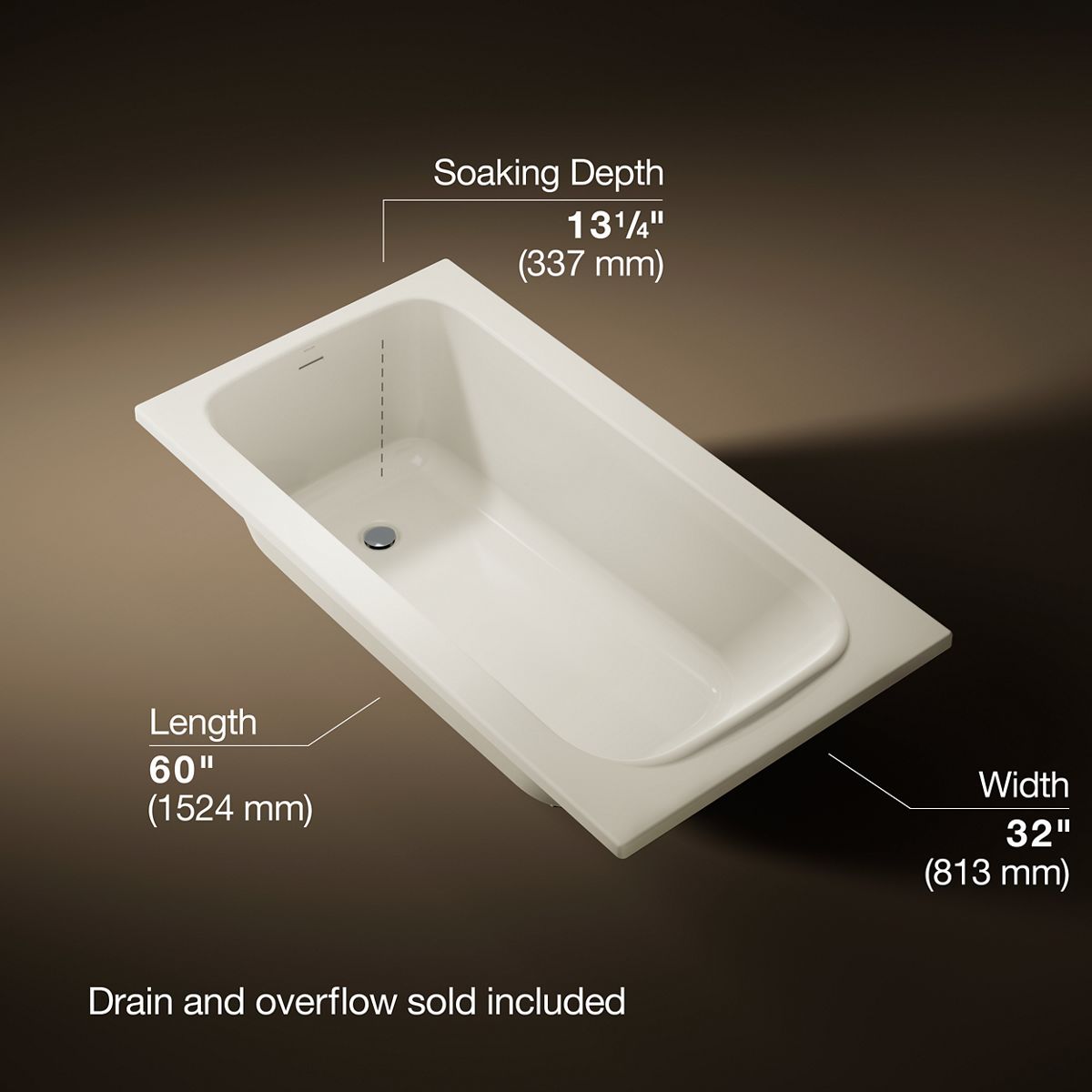

• Water depth: 13-1/4" (337 mm)
• Water capacity: 55.35 gal (209.5 L)
• Minimum floor load: 41.4 lbs/ft²
• Material: Acrylic
• Codes/standards: CSA B45.5/IAPMO Z124, ASTM E162, ASTM E662, ADA, ICC/ANSI A117.1
• Warranty: KOHLER Plastic Baths and Shower Bases Lifetime Limited Warranty
• Note: All product dimensions are nominal
