Atherton Undercounter Lavatory

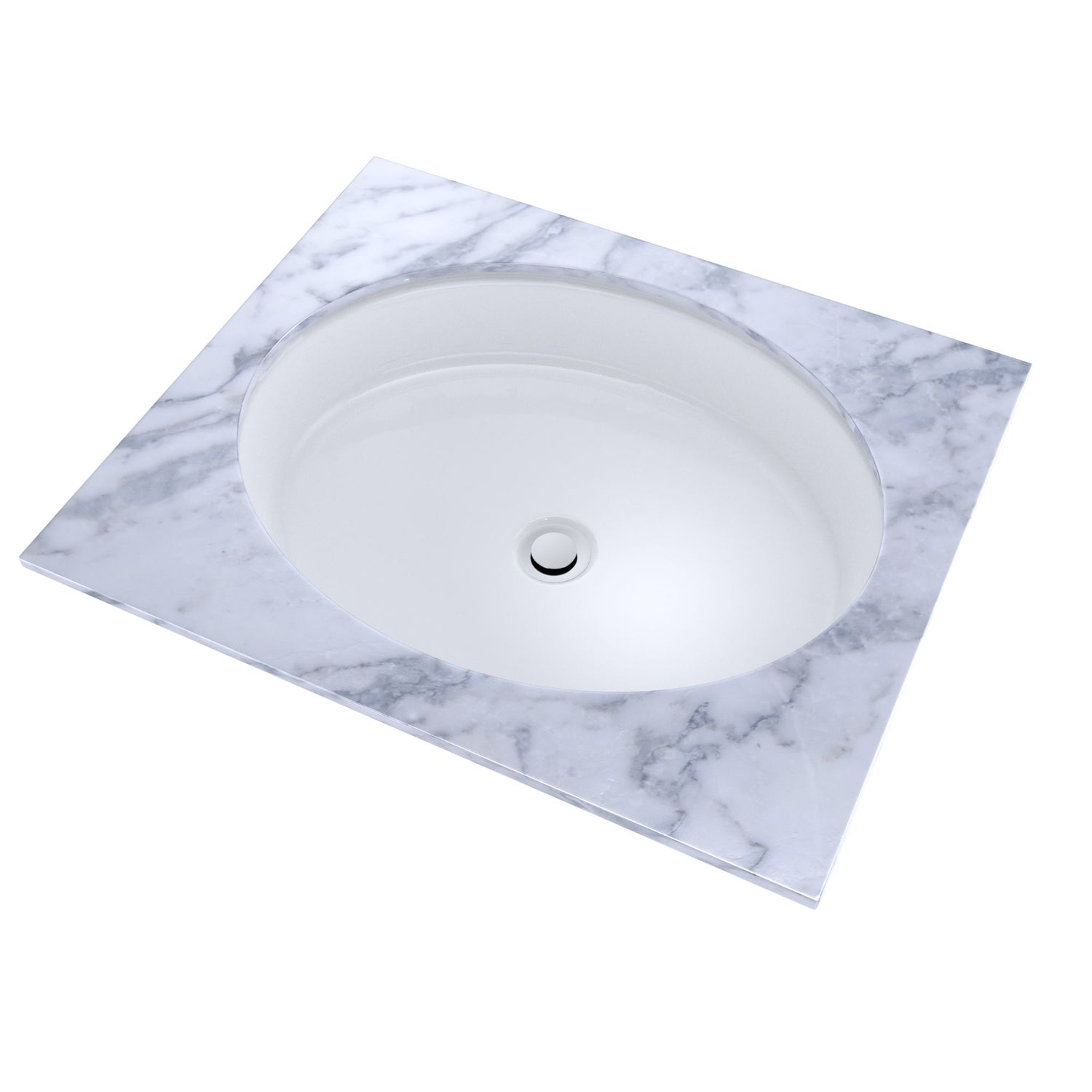

The TOTO Atherton™ LT233 is an oval undercounter lavatory in vitreous china with a rimless design and a concealed front overflow. It has a generously deep basin with more vertical sides and is ADA compliant. Low flow faucets are recommended.

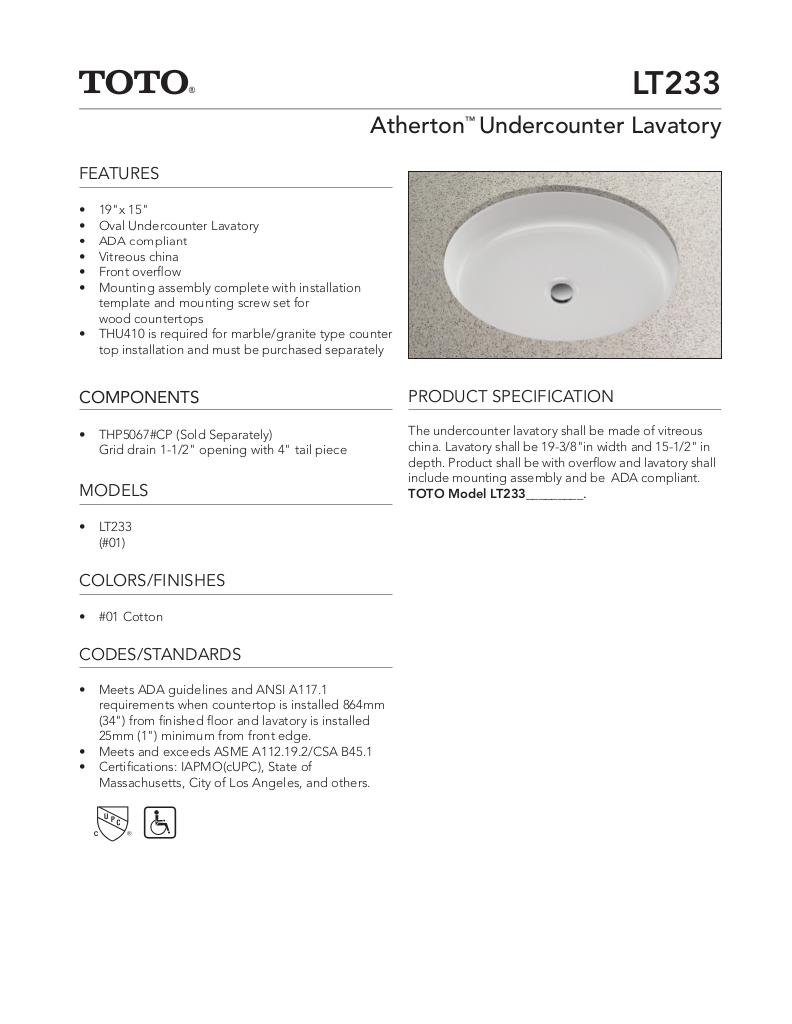

Features

• 19" x 15" oval undercounter lavatory
• Mounting assembly complete with installation template and mounting screw set for wood countertops
• Installation requirement: THU410 is required for marble/granite type countertop installation and must be purchased separately
• Grid drain THP5067#CP (1-1/2" opening with 4" tail piece) sold separately
• Meets ADA guidelines and ANSI A117.1 requirements when the countertop is installed 864mm (34") from the finished floor and the lavatory is installed 25mm (1") minimum from the front edge
• Complies with California Proposition 65 warning requirements

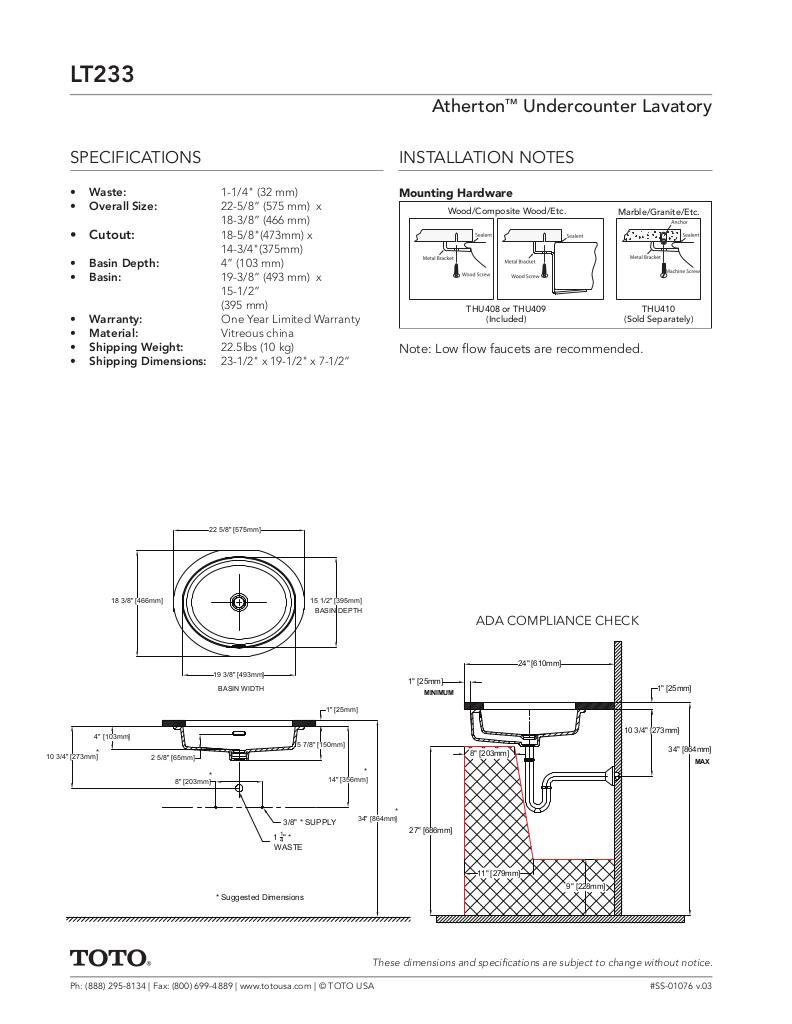

Specifications

• Overall size: 22-5/8" (575 mm) x 18-3/8" (466 mm)
• Basin: 19-3/8" (493 mm) x 15-1/2" (395 mm)
• Basin depth: 4" (103 mm)
• Counter cutout: 18-5/8" (473mm) x 14-3/4" (375mm)
• Waste: 1-1/4" (32 mm)
• Material: Vitreous china
• Finish: Cotton
• Standards: Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), State of Massachusetts, City of Los Angeles, and others
• Warranty: One Year Limited Warranty
