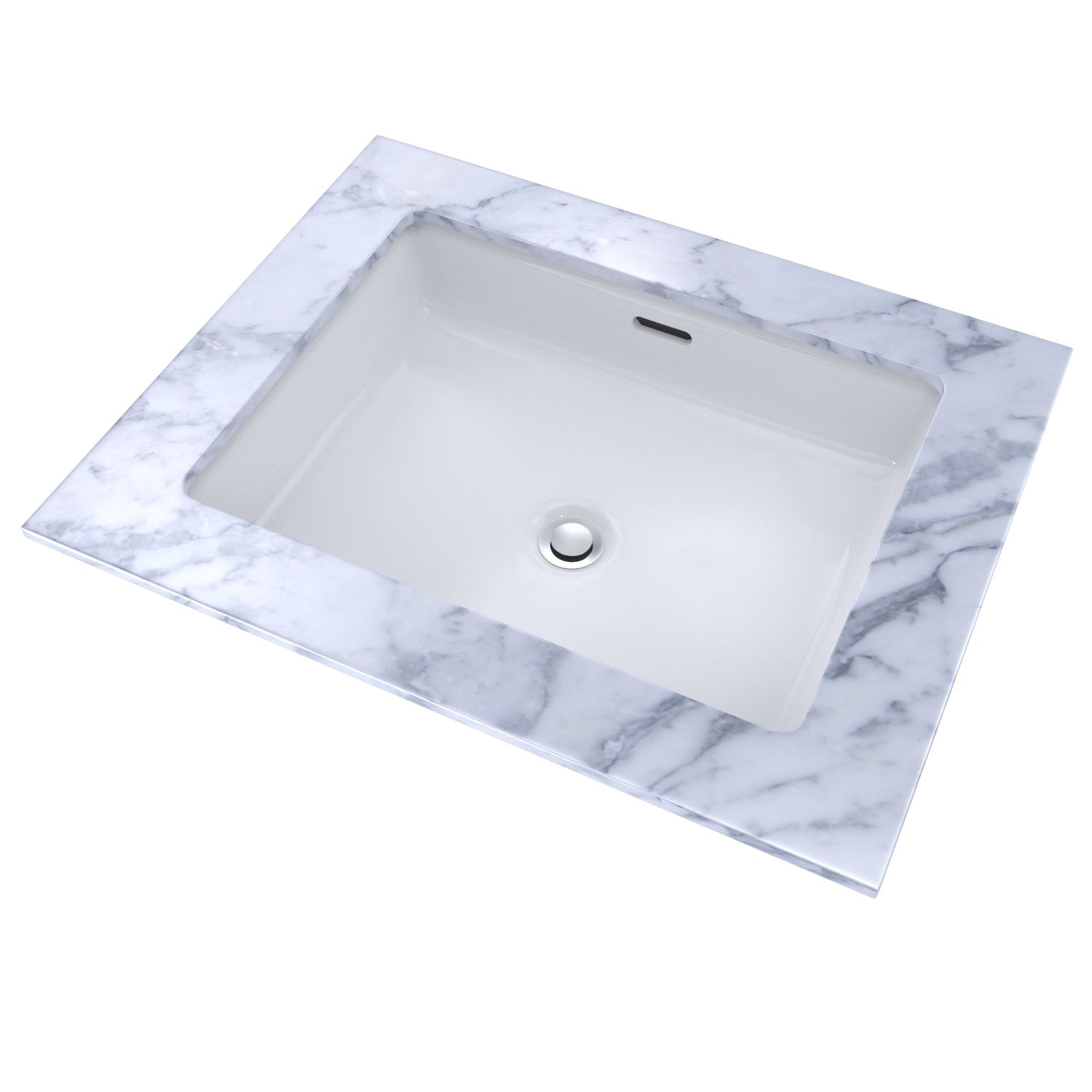

Atherton Undercounter Lavatory

The TOTO Atherton™ is a rectangular undercounter lavatory with a rimless design and a concealed front overflow. It features a generously deep basin with more vertical sides, is made of vitreous china and is ADA compliant. This listing is the Cotton (#01) colour.

Features

• Generously deep basin with more vertical sides.
• Front overflow.
• Mounting assembly complete with installation template and mounting screw set for wood countertops.
• THU410 is required for marble/granite type countertop installation and must be purchased separately.
• Low flow faucets are recommended.
• Meets ADA guidelines and ANSI A117.1 requirements when the countertop is installed 34" from the finished floor and the lavatory is installed 1 7/8" minimum from the front edge.
• Meets and exceeds ASME A112.19.2/CSA B45.1; certifications: IAPMO(cUPC), State of Massachusetts, City of Los Angeles, and others.

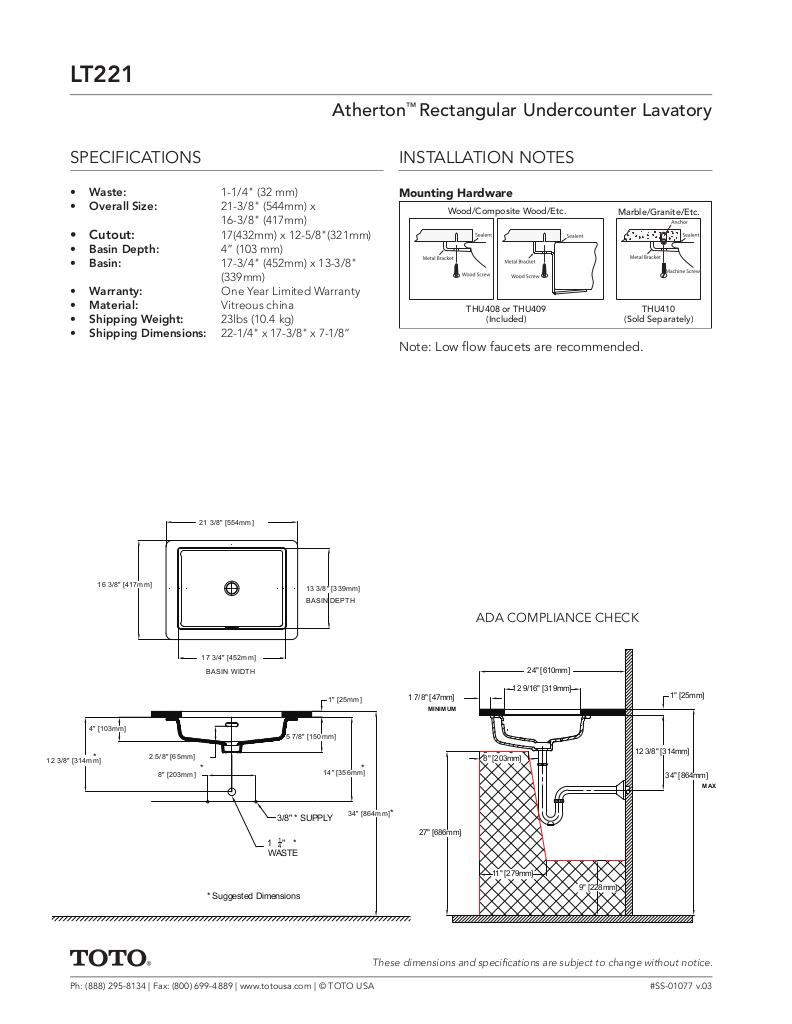

Specifications

• Overall size: 21-3/8" (544mm) x 16-3/8" (417mm)
• Basin: 17-3/4" (452mm) x 13-3/8" (339mm)
• Basin depth: 4” (103 mm)
• Cutout: 17 (432mm) x 12-5/8" (321mm)
• Waste: 1-1/4" (32 mm)
• Material: Vitreous china
• Colour: Cotton (#01)
• Warranty: One Year Limited Warranty
